Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Specifications
Place of Origin :
Shandong, China
After-sales Service Provided :
Video Technical Support
Weight (kg) :
500
Filling head :
1/2 Heads(Customizable)
MOQ :
1 set
application :
Chemical, Water, Other
core components :
Motor, PLC, Pump
Material :
PP &SUS 304 316
packaging material :
Plastic, Metal, Wood
filling accuracy :
±3%
Suitable for :
Fluid Material (alll Liquid Products)
automatic grade :
Automatic
warranty :
1 Year
Filling Volume :
50ml-20L, 50ml-20L
Product name :
Automatic Chemical Liquid Filling Machine
Price :
$6,300-6,500 / set
driven type :
Electric
dimension(l*w*h) :
1200*1350*2200
filling material :
Liquor
machinery test report :
Provided
Filling speed :
800-1600BPH
packaging type :
Bottles, Cans, Barrel, Pouch
filling nozzle :
2, 1
video outgoing-inspection :
Provided
After Warranty Service :
Online Suppot
Control :
PLC+ Touch Screen
Keywords :
Corrosive Liquid Filling Machine
Voltage :
220 V, 110 V, 415V, 380 V
key selling points :
Easy To Operate, Competitive Price, Digital
Bottle type :
PET Plastic Bottle Glass Bottle
Description
Small Automatic Liquid Detergent Filling Machine For Acidic And Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Products Description
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals

Aautomatic Corrosive Liquid Filling Machine

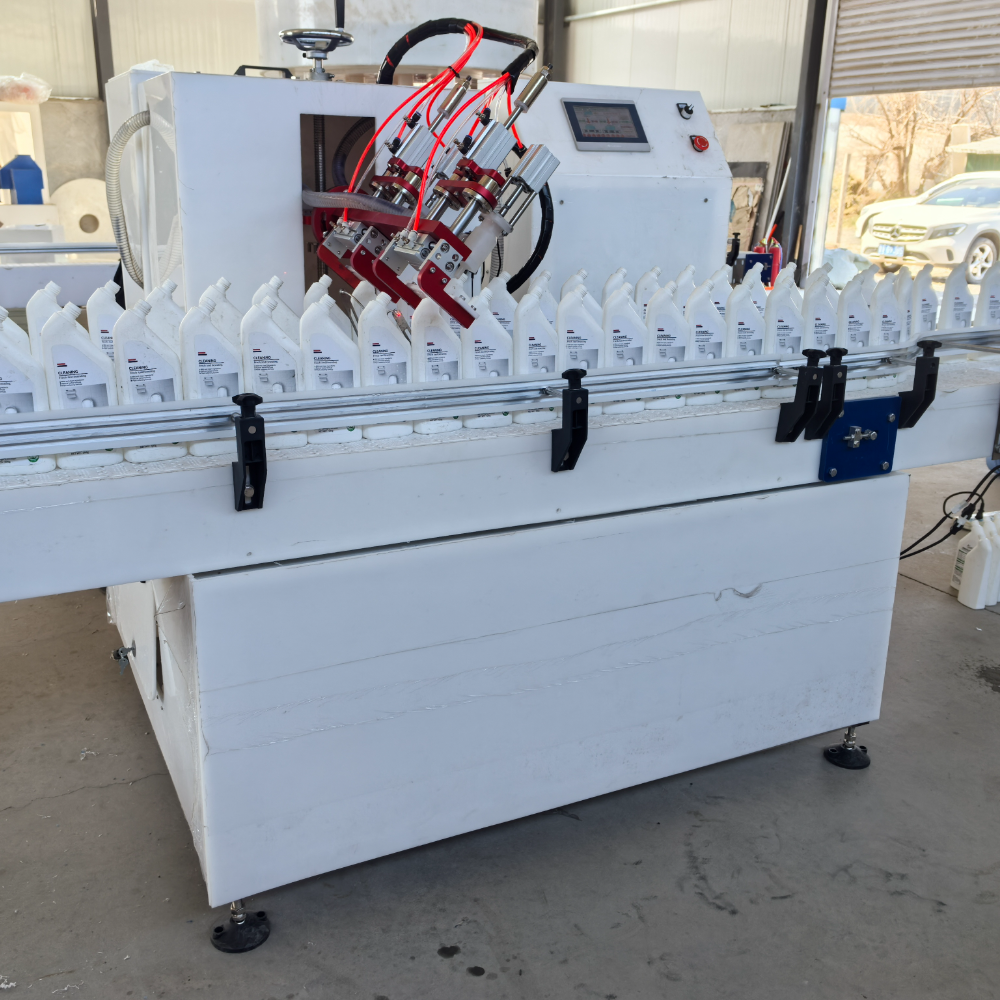

This filling machine uses an anti-corrosion gear pump to fill liquids. It is mainly used for filling non-viscous and low-viscosity corrosive liquids such as detergents, degreasers, acid solutions, and disinfectants. The filling nozzle can be selected as a single head or two filling heads to meet different production volume requirements. This filling machine has a wide range of adaptability. Even if you have bottles with different bottle mouths, there is no need to change any components. You just need to adjust the direction of the filling head to make it applicable to bottles with different bottle mouths.
This machine is made of anti-corrosion polypropylene material, and the conveyor line is also made of anti-corrosion materials. Contact us to learn more about the solutions.
Application
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Details Images
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals

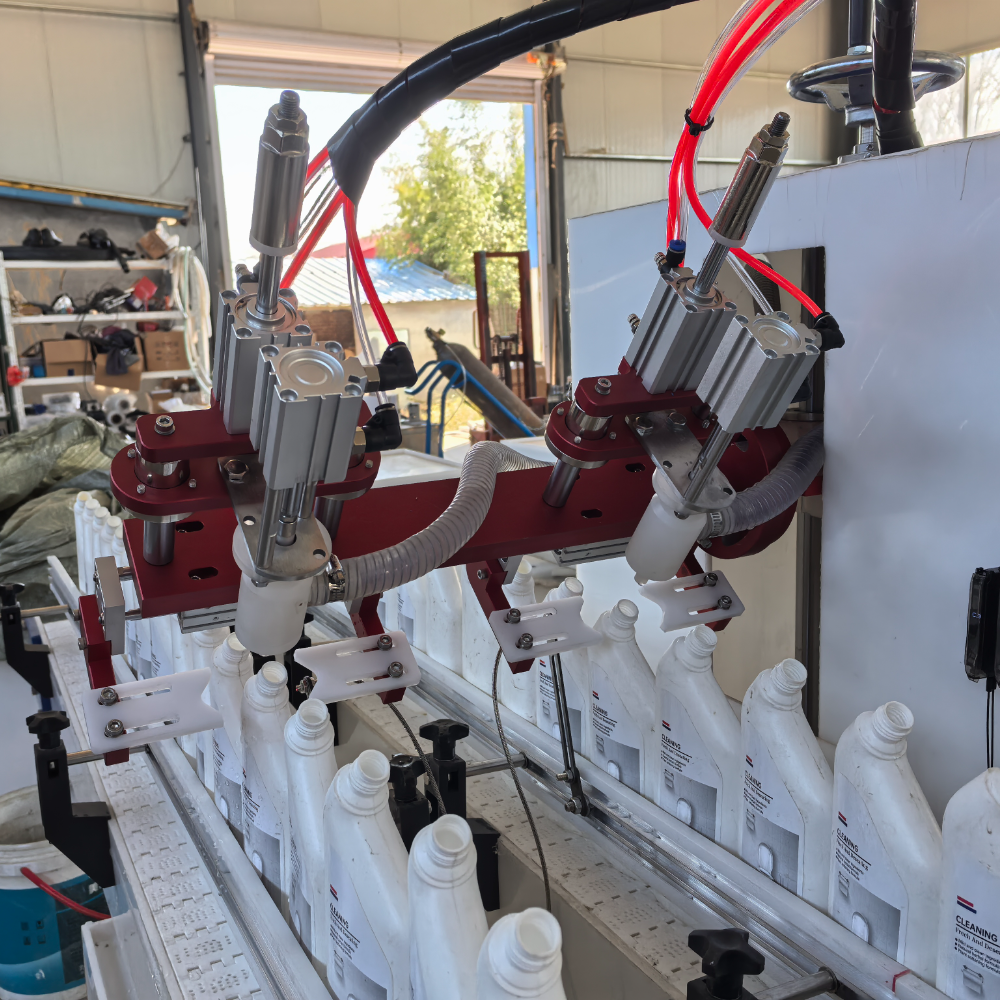

Anti-dropping PP material filling nozzles

Precise pneumatic control, and the filling speed and filling capacity can be precisely adjusted.
In addition, this part can be changed to run upright, for filling the bottle with an upright mouth.

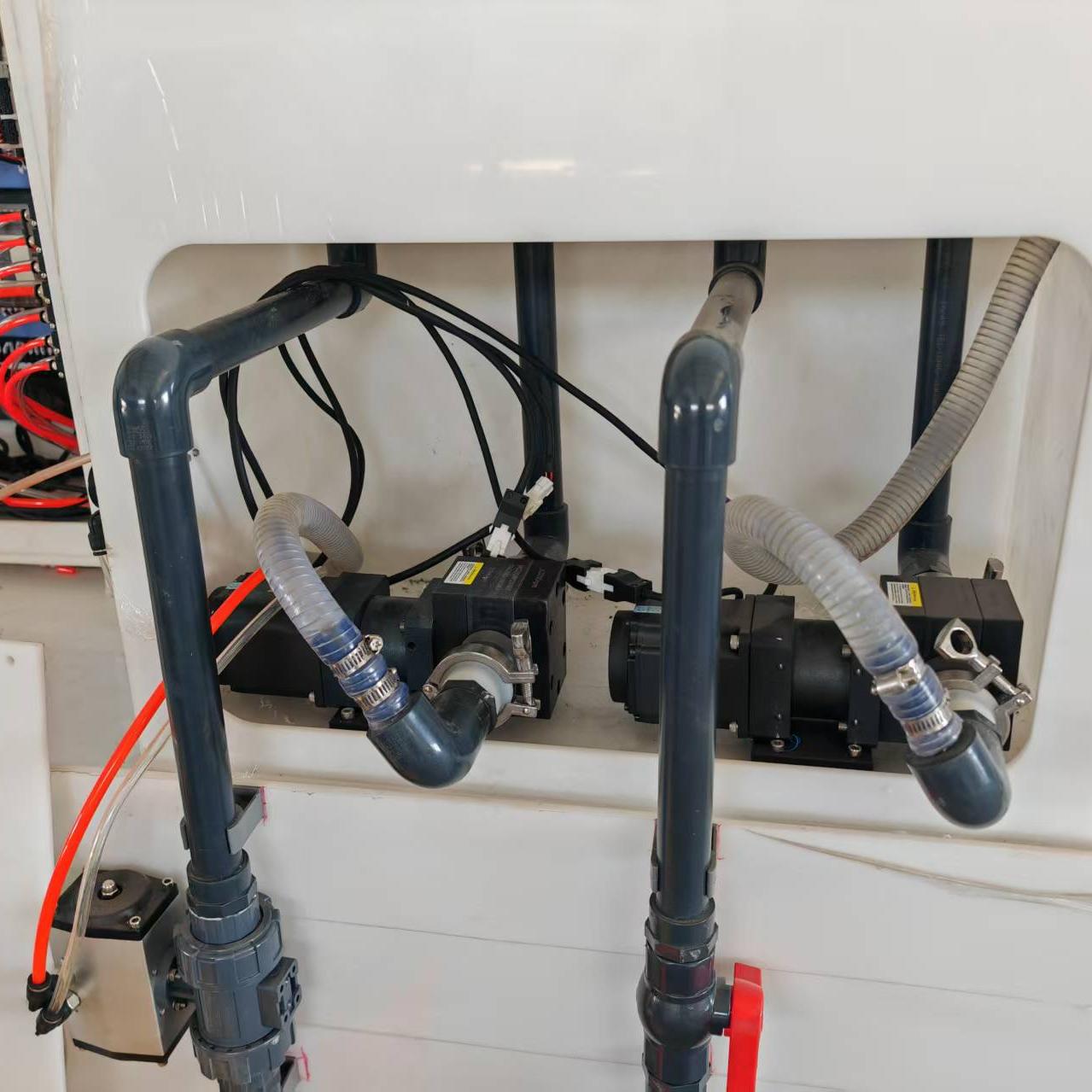

High-precision anti-corrosion gear pump

Each filling head is connected to an independent gear pump, and the capacity can be controlled independently.
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals

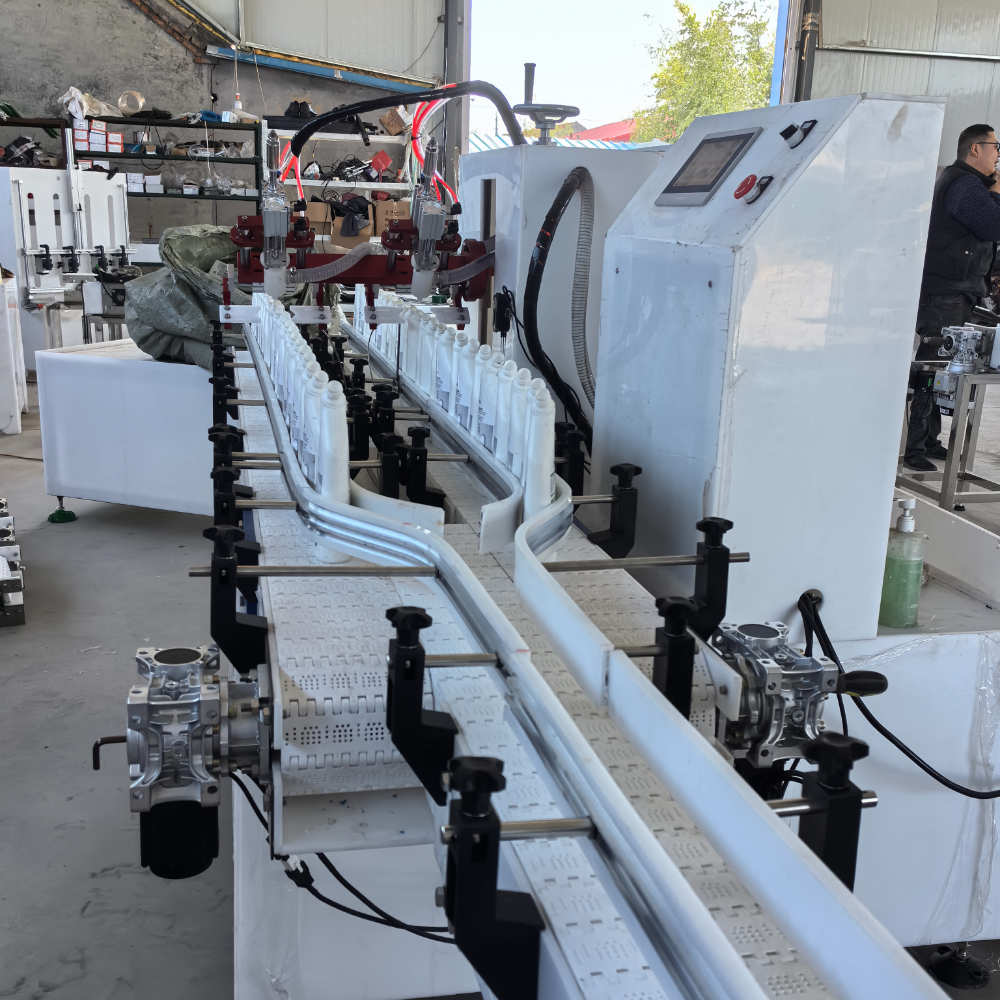

Customized staggered anti-corrosion conveyor line

Dedicated anti-corrosion conveyor line can effectively prevent corrosive liquids from damaging the conveyor line. It adopts a staggered connection method, which makes the operation more stable and can better match the operation program of the machine.
Company Profile
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Qingzhou Jiutai Packaging Equipment Co., Ltd. specializes in filling, packaging and water treatment equipment. Star products include full-auto liquid filling machines, intelligent production lines and flexible systems for diverse industries. Serving 30+ countries, we provide customized, energy-efficient solutions with ISO9001/CE certification. Our goal is to optimize efficiency, cut costs via advanced tech, and drive smart manufacturing upgrades under the "technology + service" philosophy, offering full-cycle support for long-term partnerships.
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Product Paramenters
No.
Item
JTCLF-6
1
Filling nozzles
6
2
Production capacity
1000~1800bph
3
Filling principle
Gravity filling or pumb
4
Filling standard
Depend on customer
5
Bottle height
100~350mm,can customized as required
6
Power
0.37/0.55Kw
7
Frame Material
PP &SUS304
8
Overall dimension(L*W*H)
customized as required
Why Choose Us
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Product packaging
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
Small Automatic Liquid Detergent Filling Machine for Acidic and Corrosive Chemicals
FAQ
1. What main products does Qingzhou Jiutai specialize in?
We specialize in manufacturing filling machinery, packaging equipment, and water treatment
systems, including full-auto liquid filling machines, intelligent packaging lines, and carbonated liquid mixers.

2. Do your products meet international standards?
Yes, all core products are certified under ISO 9001 and CE, ensuring compliance with global quality and safety regulations for food, beverage, and chemical industries.

3. Can you provide customized solutions for specific needs?
Absolutely. We offer tailored equipment designs and production lines to meet unique requirements, with case studies in 30+ countries demonstrating our expertise in customized, energy-efficient solutions.

4. What after-sales support do you provide?
Our "technology + service" philosophy includes comprehensive support: R&D consultation, installation guidance, maintenance training, and 24/7 technical assistance to ensure long-term operational efficiency.

5. How does your equipment enhance production efficiency?
Our automated systems (e.g., semi-auto capping machines, conveyor lines) reduce manual labor, while intelligent controls and energy-saving designs optimize output by up to 40% compared to traditional models.
