Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Specifications
application :
Water, Other, Chemical
packaging material :
Plastic, Metal, Wood
MOQ :
1 set
Voltage :
220 V, 110 V, 415V, 380 V
Bottle type :
plastic bottle glass bottle
core components :
Motor, PLC, Pump
dimension(l*w*h) :
890*870*805
filling material :
Oil, Liquid Soap, Viscous Liquid, Honey, Peanut Butter, Shampoo, Glue
Price :
$9,000-9,200 / set
machinery test report :
Provided
video outgoing-inspection :
Provided
Filling Volume :
50ml-20L, 50ml-5000ml
Control :
PLC+ Touch Screen
Suitable for :
viscous liquid(Edible oil, engine oil, washing products, etc.)
automatic grade :
Automatic
key selling points :
Easy To Operate, Competitive Price, Digital
filling accuracy :
±3%
Weight (kg) :
500
Filling speed :
1200-300BPH
Place of Origin :
Shandong, China
warranty :
1 Year
Filling head :
4-12Heads(Customizable)
After Warranty Service :
Online Suppot
Material :
SUS304 / 316
Product name :
Automatic Liquid Filling Machine
Keywords :
Fillng Machine
packaging type :
Bottles, Cans, Barrel, Pouch
driven type :
Electric
filling nozzle :
4, 6, 10, 8
After-sales Service Provided :
Video Technical Support
Description
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 250ml Soap Gallon Dish Wash Automatic
Products Description
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
This automatic liquid filling machine, controlled by a servo motor, is suitable for filling viscous liquids such as edible oils, mechanical oils, shampoos, hand sanitizers, etc. During the filling process, the filling nozzles will move along with the bottles and fill the materials while moving. Since the conveyor line keeps running, it has a relatively fast filling speed. In addition, each filling nozzle is connected to an independent servo-controlled pump, so the filling accuracy is high.

1. This machine adopts optical fiber to track bottles, enabling high-speed and efficient filling with an uninterrupted production process.
2. It is suitable for filling viscous liquids such as edible oil, engine oil, shampoo, shower gel, and hand sanitizer.
3. It operates fully automatically. Bottle feeding, positioning, filling, and bottle discharging are all automatically controlled by PLC, and the entire process complies with GMP standards.
4. According to the characteristics of different products, various filling methods such as piston type, rotor pump, flow meter, and solenoid valve can be provided.
5. For bottles of different heights and capacities, especially irregularly shaped bottles, debugging can be completed in only 3-5 minutes.
Details Images
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic

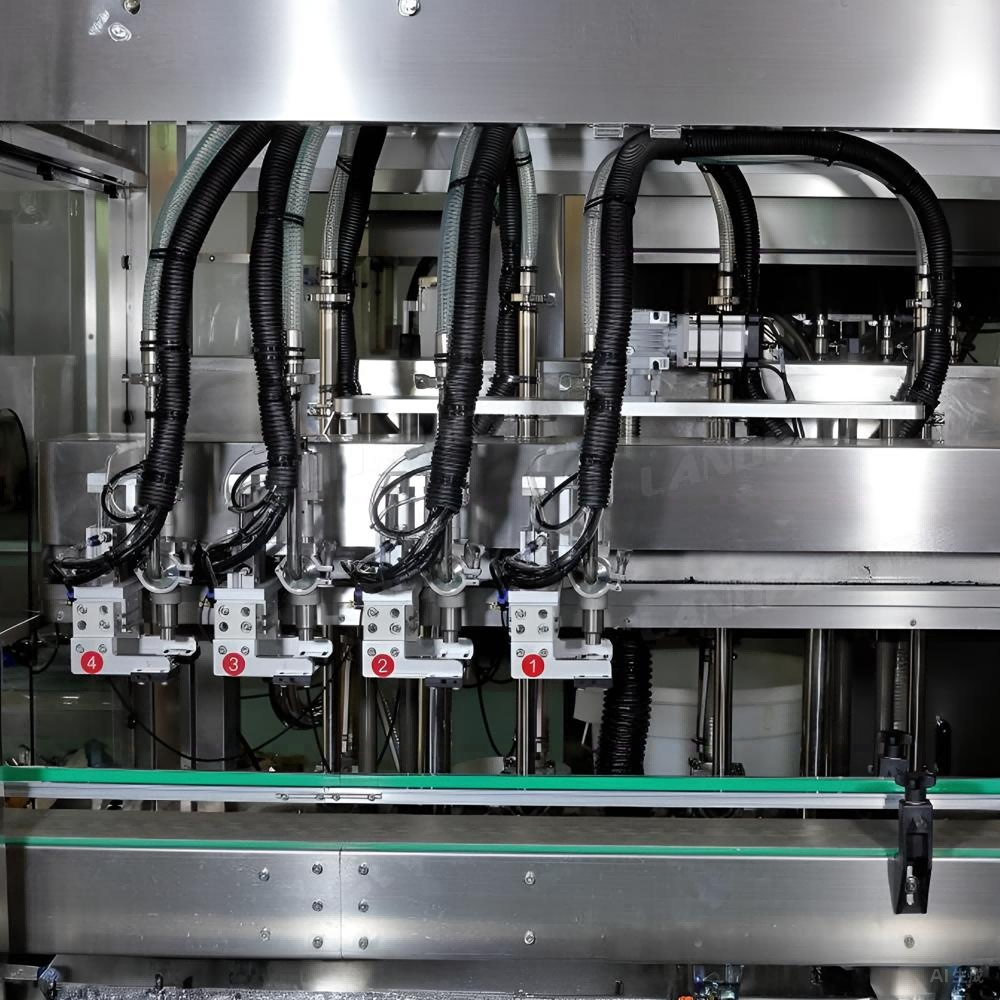

The nozzles of this tracking filling machine will move along with the bottles during the filling process and complete the liquid filling while moving. During this process, the conveyor line keeps running, which ensures the speed of bottle feeding and filling, thereby increasing the output. Moreover, you can customize multiple filling nozzles according to your output requirements.

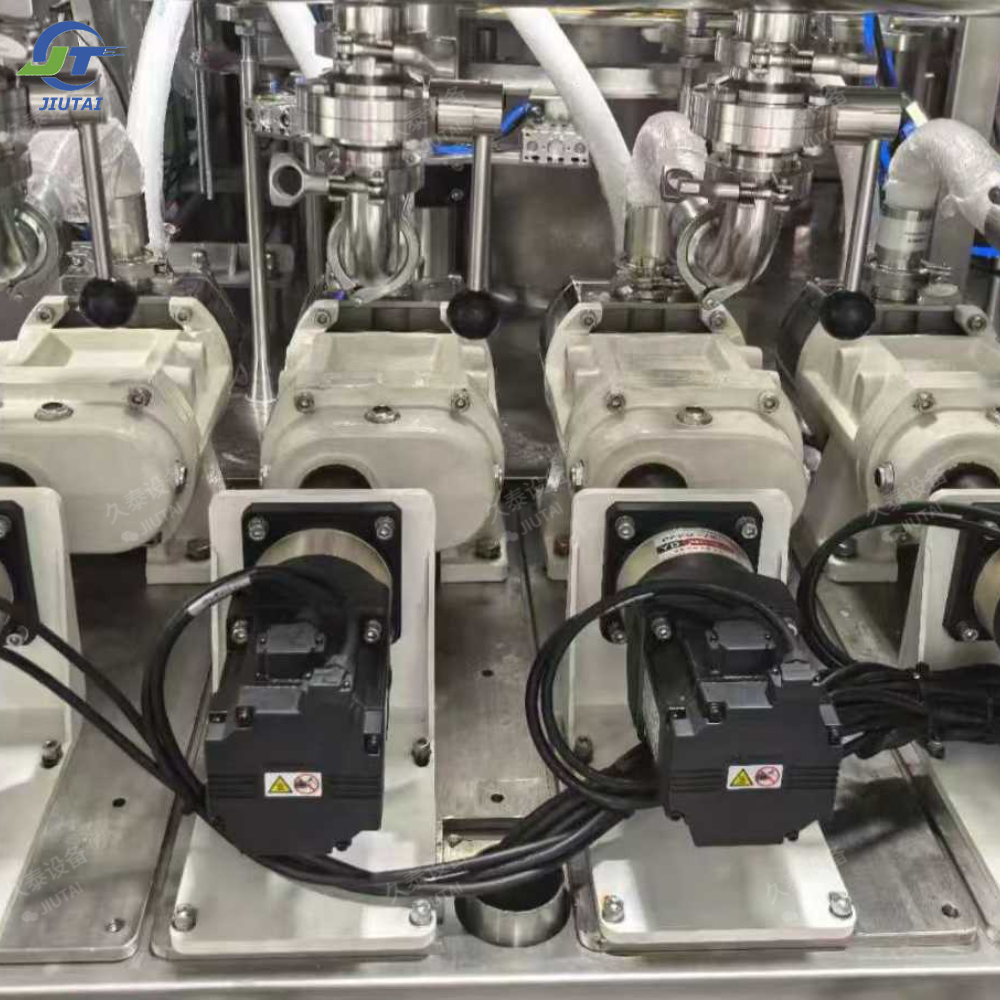

The above pictures show the servo motor-driven pumps and the connected trackable filling nozzles.
Note: We can customize the machine according to your actual output requirements and plan the layout of the production line based on your site, so that you can achieve the most efficient use of the site.
Commercial Tracking Type Filling Machine Shampoo Gel Bottle Lotion Paste 500ml Soap Gallon Dish Wash Automatic
Product Paramenters
Model
JTTF-2，JTTF-4，JTTF-6，JTTF-8
Filling nozzles
2/4/6/8
Filling speed
1500~3000NPH
Filling volume range
100~5000ml
Filling pump
Rotor pump
Bottle size
H=80-180mm W=15-120mm(customized)
Filling accuracy
About ±0.5%
Air pressure
0.5~0.8Mpa
Machine size
1500*1200*2200mm(customized)
Weight
500-800Kg
