Specifications
dimension(l*w*h) :
1500*1200*2200
machinery test report :
Provided
filling nozzle :
8, 18, over 20
application :
Chemical, Water, Other
Filling Volume :
200ml-1500mL,
packaging type :
Bottles, Cans, Barrel, Pouch
Weight (kg) :
500
After Warranty Service :
Online Suppot
MOQ :
1 set
driven type :
Electric
key selling points :
Easy To Operate, Competitive Price, Digital
After-sales Service Provided :
Video Technical Support
Material :
SUS304 / 316
Price :
$10,900-11,000 / set
Place of Origin :
Shandong, China
filling material :
water
Voltage :
220 V, 110 V, 415V, 380 V
video outgoing-inspection :
Provided
warranty :
1 Year
filling accuracy :
±3%
Product name :
Automatic rotary vacuum Liquid Filling Machine
packaging material :
Plastic, Metal, Wood
Filling speed :
1800-8000BPH
Filling head :
8-36 Heads(Customizable)
core components :
Motor, PLC, Pump
Keywords :
Fillng Machine
automatic grade :
Automatic
Bottle type :
PET Plastic Bottle
Control :
PLC+ Touch Screen
Suitable for :
Fluid Material (alll Liquid Products)
Description
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Products Description
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
JIUTAI excels in bottled water production lines with key strengths.​
Its machinery is mature: R&D-honed rinsing-filling-capping lines feature high automation. Proven devices, validated by market use, run stably, suiting all scales.​
Rich turnkey experience: It delivers full-cycle services—planning, installation, commissioning to support. Successful cases meet needs on time, saving clients effort.​
Most upstream/downstream gear is self-produced: Core systems (filtration, blowing, filling) ensure compatibility, quality, lower costs. Sound supply chains secure timely, quality labels/packaging from premium partners. JIUTAI is an ideal partner.
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Product Paramenters
Model
Washing heads
Filling heads
Capping Heads
Applicable bottles
Applicable Cap Shape
Output(BPH)
Power(Kw)
Overal Size (mm)
8-8-3
8
8
3


Diameter: Φ50-Φ100 mm

Height: 150-320 mm

Volume: 200-2000 ml


Plastic Screw Cap
2000
3
2000*1800*2100
14-12-5
14
12
5
4000
3.75
2600*2100*2200
18-18-6
18
18
6
6000
5
2700*1900*2300
24-24-8
24
24
8
10000
6.57
2940*2300*2300
32-32-10
32
32
10
15000
8.63
3750*2900*2300
40-40-12
40
40
12
20000
10.68
4450*3100*2300
50-50-15
50
50
15
24000
12
5450*3300*2500
60-60-18
60
60
18
26000
14
6500*4500*2900
Details Images
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine

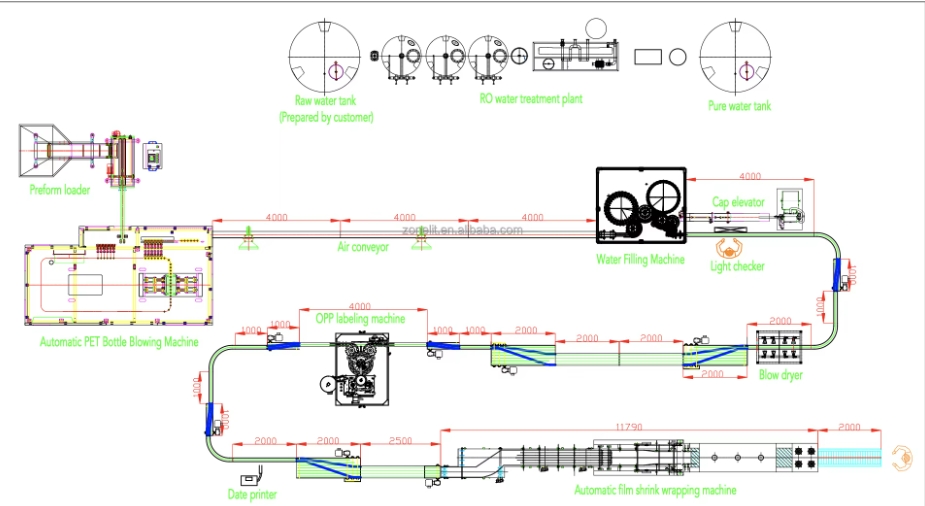

The complete production line:
☑PET bottle blowing machine
☑Water treatment system
☑Bottle washing filling and capping machine
☑Ink code printer / Laser code printer
☑PVC shrink sleeve / OPP hot glue / Adhesive sticker labeling machine

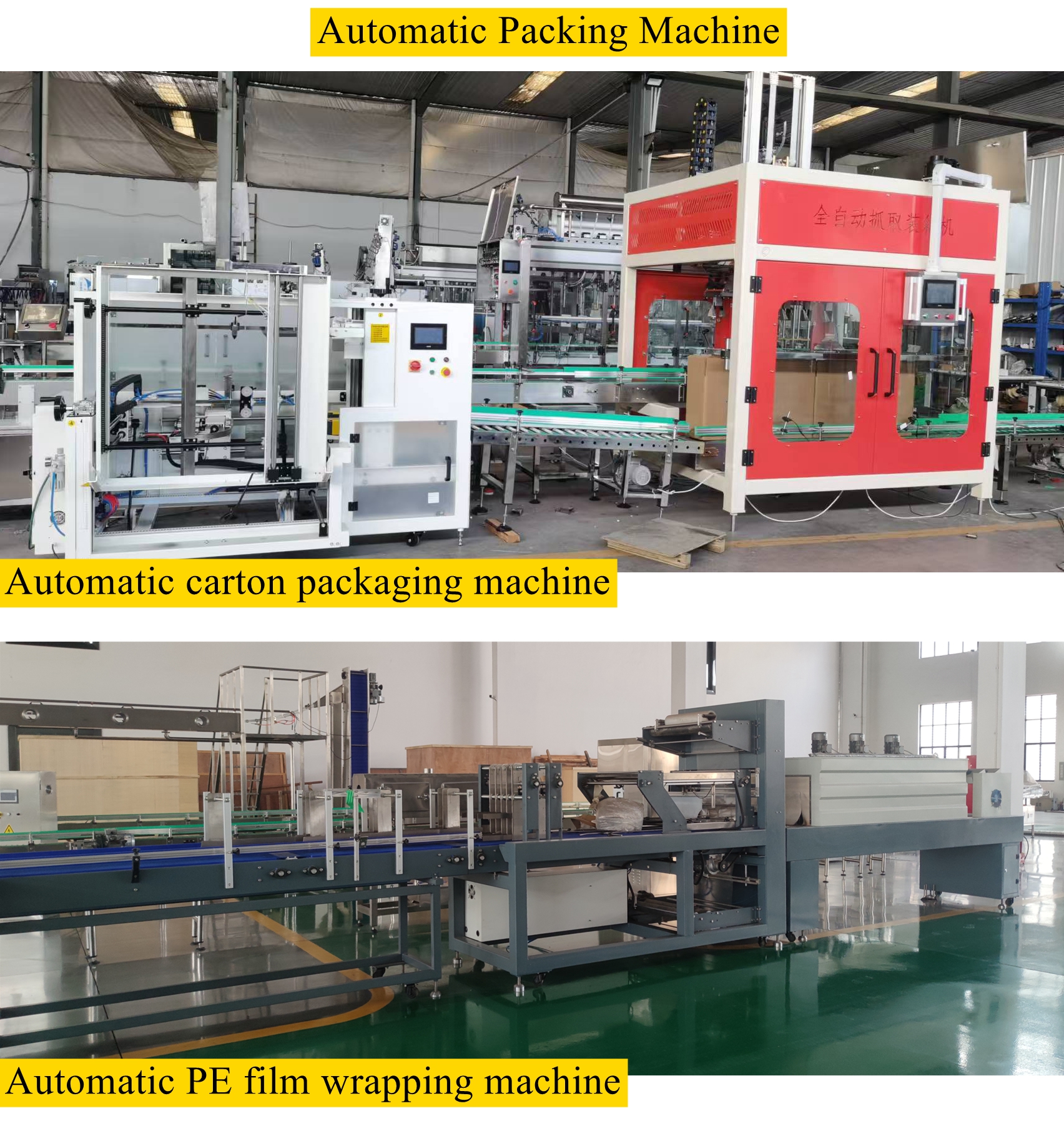

☑PE film packaging machine / Carton packaging machine
☑Automatic palletizer
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine

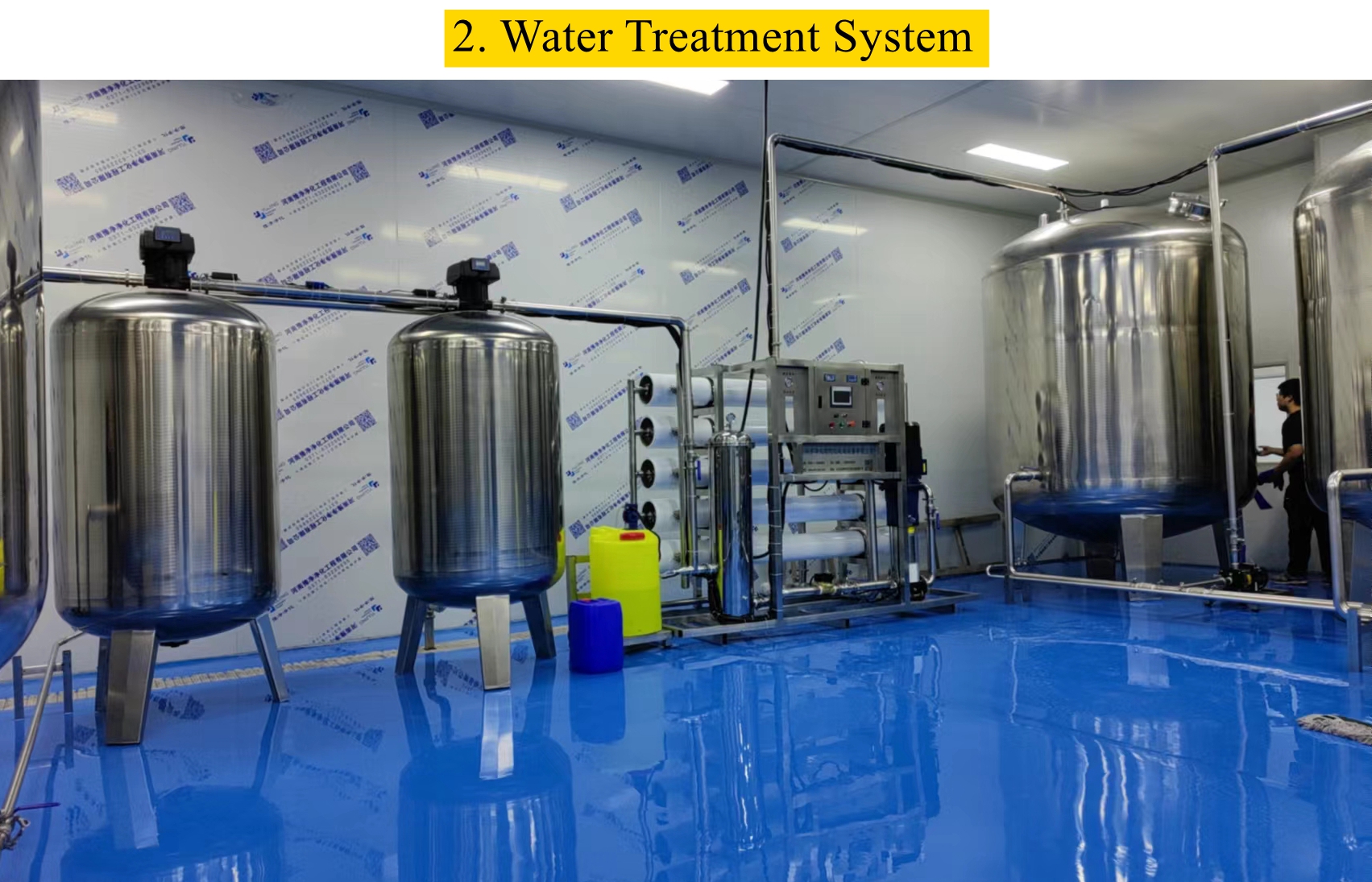

Water Treatment System

It is mainly composed of the following equipments:
1. Pre-treatment system (water tank/ multi-medium filter / active carbon filter / ion exchanger / precious filter)
2. Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)
3. Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine

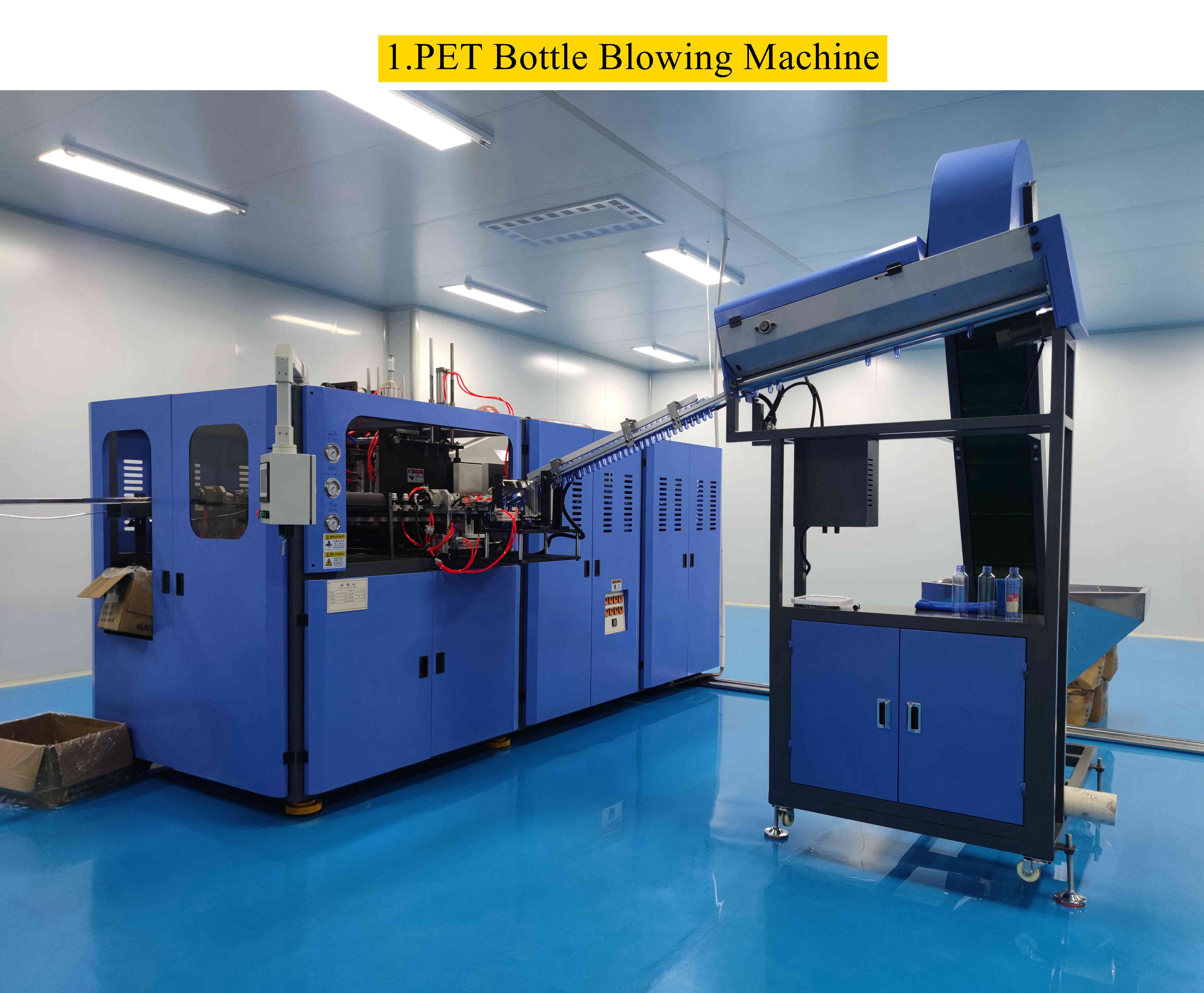

PET Bottle Blowing Machine

1. PET Bottle Blowing machine 1000-24000bph, and 0.25-2L PET bottles are available.
2. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle, etc.
3.The man-machine interface is highly automated and easy to operate.
4.The compact machine occupies a smaller area.
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine

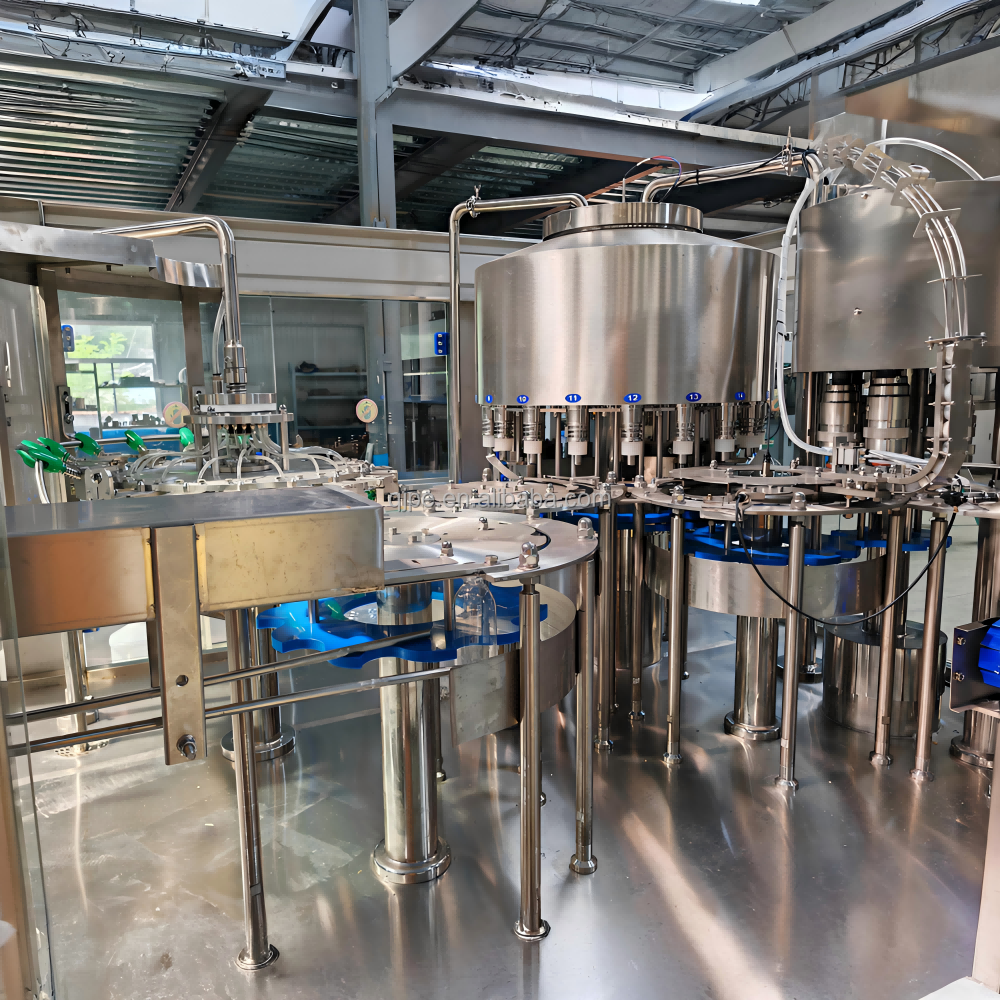

Auotmatic bottle water washing filling capping 3 in 1 Machine

1.Water filling line production capacity is usual in 1,000-36,000bph, 0.25-2.5L PET bottles are available.
2.Automatic water filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316. The key electric elements adopt international famous products.
3.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
4. SUS304/316 high precision filling nozzle ,PLC variable signal control, ensure high filling precision & filling smoothly and steadily
5.Place an capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping..No bottle no capping . Automatic stop when lack of bottle. Capping effect is stable and reliable, Defective rate ≤0.2%
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine

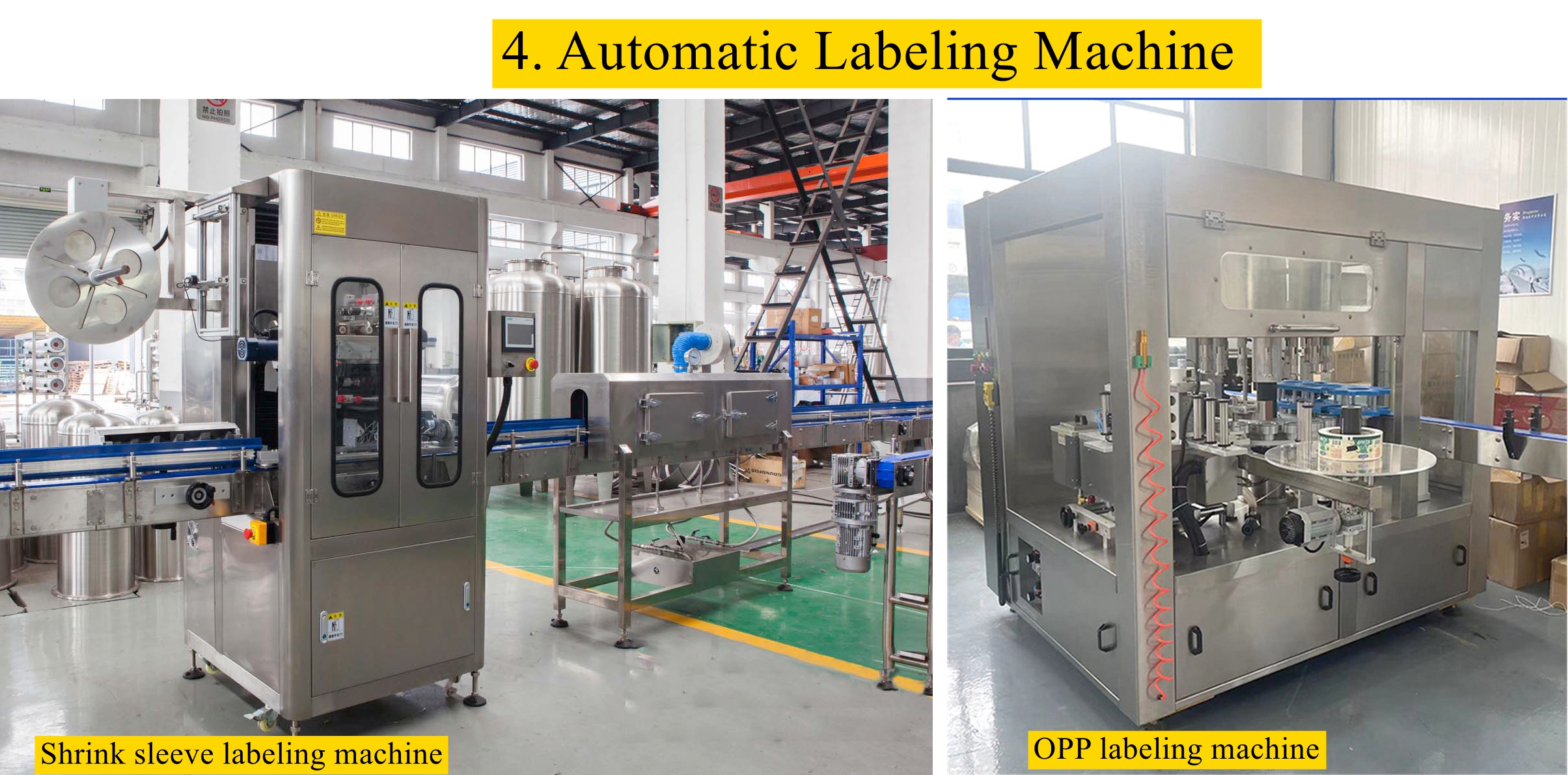

Automatic lalebling machine

The labeling machine has 3 types: shrinking sleeve labeling mnachine,OPP labeling machine & Sticker Labeling Machine. As your output,label type,and label positions etc,we will recommend you the suitable solutions.
1.They mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water,food,etc.
2.Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.
3.High speed,high accuracy, stable performance.
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Company Profile
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Qingzhou Jiutai Packaging Equipment Co., Ltd. specializes in filling, packaging and water treatment equipment. Star products include full-auto liquid filling machines, intelligent production lines and flexible systems for diverse industries. Serving 30+ countries, we provide customized, energy-efficient solutions with ISO9001/CE certification. Our goal is to optimize efficiency, cut costs via advanced tech, and drive smart manufacturing upgrades under the "technology + service" philosophy, offering full-cycle support for long-term partnerships.
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Why Choose Us
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Product packaging
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
Automatic PET Bottle Rinsing, Filling & Capping Integrated Machine, equipped with bottle blowing system, case packer or film wrapping machine
FAQ
1. What main products does Qingzhou Jiutai specialize in?
We specialize in manufacturing filling machinery, packaging equipment, and water treatment
systems, including full-auto liquid filling machines, intelligent packaging lines, and carbonated liquid mixers.
2. Do your products meet international standards?
Yes, all core products are certified under ISO 9001 and CE, ensuring compliance with global quality and safety regulations for food, beverage, and chemical industries.
3. Can you provide customized solutions for specific needs?
Absolutely. We offer tailored equipment designs and production lines to meet unique requirements, with case studies in 30+ countries demonstrating our expertise in customized, energy-efficient solutions.
4. What after-sales support do you provide?
Our "technology + service" philosophy includes comprehensive support: R&D consultation, installation guidance, maintenance training, and 24/7 technical assistance to ensure long-term operational efficiency.
5. How does your equipment enhance production efficiency?
Our automated systems (e.g., semi-auto capping machines, conveyor lines) reduce manual labor, while intelligent controls and energy-saving designs optimize output by up to 40% compared to traditional models.
