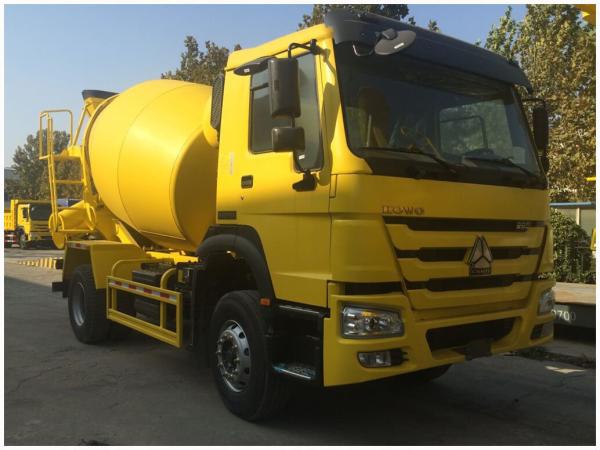

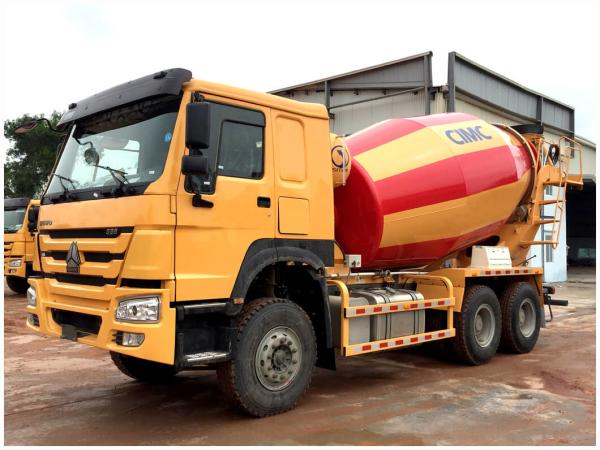

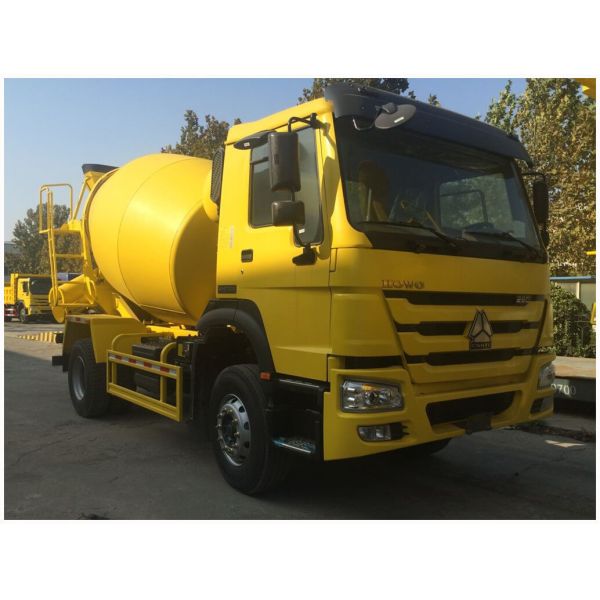

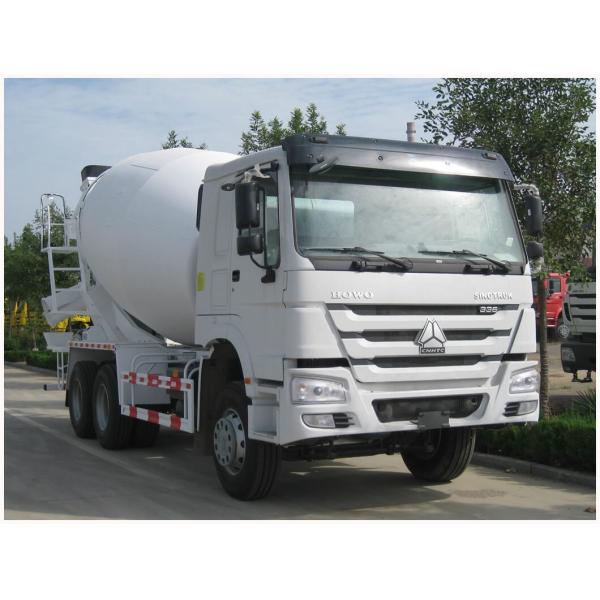

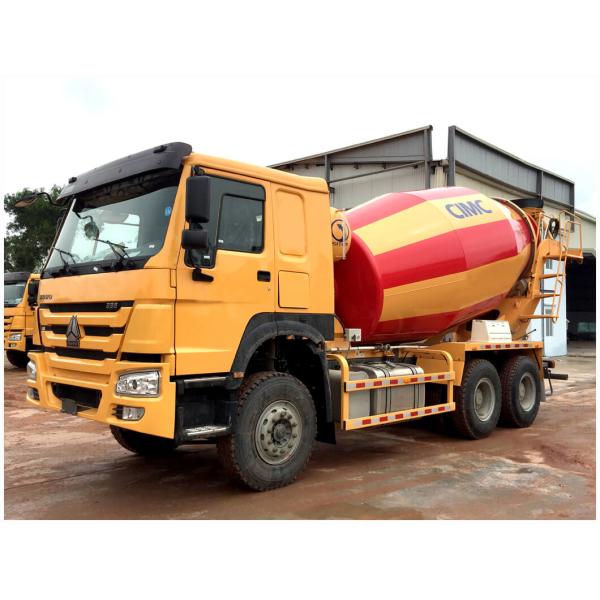

SINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EURO
SINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EURO
SINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EURO
SINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EURO
SINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EURO
SINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EURO
Specifications
Brand Name :
SINOTRUK
Model Number :
HOWO
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
1000/Y
Delivery Time :
30DAYS
MODLE :
MIXER TRUCK
POWER :
371HP
TYPE :
HOWO7
Description
SINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EUROSINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EUROSINOTRUK HOWO TRUCK concrete mixer truck 6X4/8X4 HOWO 371HP EUROHOWO 8×4
ZZ3317N2867W
Engine Model WD615.69/WD615.47
Emission EURO 2
Maximum output 336HP (247KW)/2200rpm 371HP(273KW)/2200rpm
Maximum torque 1300Nm/1300-1600rpm 1470Nm/1300-1600rpm
Number of cylinder 6
Displacement(L) 9.726
Bore(mm) 126
Stroke(mm) 130
Fuel Diesel
Compression ratio 38.1hp/1
Engine oil filling quantity(L) 19
Specification 6-cylinder in-line with water cooling,turbo-charging and intercooling
Gearbox Model Opition HW15710,HW19710,FAST RT11509C
Operation Manual
Speeds (8)9 Forward and 1 Reverse
Front Axle Model HF9
Rated load(kg) 9000
Maximum steering angle of inner wheel(.) 45
Kingpin inclination(.) 3
Camber angle(.) 1
Spring gage(mm) 850~900
Brake Air drum brake
Min rim size(inch) 20
Driving Axle Model HC16(Tandem axle)
Type Central single reduction + hub reduction,welded axle housing
Rated load(kg) 2×13000
Ratio 3.93/4.42/4.80/5.73/6.72/9.49
Spring gage(mm) 1020
Wheel tread(mm) 1850
Input flange φ180
Differential device Inter-wheel and inter-axle
Brake Drum φ420×220
Weight(Without lubricants)(kg) 1 st axle:895/2nd axle:815
Wheel bolt(mm) φ335-10×M22×1.5
Min rim size(inch) 20
Lubricants(L) GL5 85W-90
Cab Model HW76
Bunk 1
Air Conditioner With
Steering ZF power steering,model ZF8098,hydraulic steering with power assistance Ratio:26.2
Electrics Operating voltage 24 V,negative grounded
Starter 24 V,5.4 Kw
Alternator 3-phrase,28 V,1500 W
Batteries 2×12 V,165 Ah
Others Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light
Tyre Rims 8.5-20,10 hole-steel
Opition 11.0020 Radial Tyres,12.00R20 Radial Tyres
Brake Service brake Dual circuit compressed air brake
Parking brake(emergency brake) Spring energy,compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Bulk(Cargo Box) Lifting Opition Front Lifting,Ventral Lifting
L × W × H(mm) 6200×2300×1500
Working Volumn(M3) 21.4
Dimensions Wheel base(mm) 1800+2800+1350
Overall length(mm) 9160
Overall width(mm) 2516
Overall height(mm) 3310
Weight(kg) Permissible loading capacity(kg) 32000
Chassis dead weight(kg) 13100
Front axles loading capacity(kg) 9000
Rear axles loading capacity(kg) 13000×3
Performance Maximum driving speed(km/h) 75
Maximum gradeability(%) 39
Minimum ground clearance(mm) 298
Minimum turming circle(m) 21
Fuel consumption(1/100 km) 40
Opition Color Blue/White/Yellow/Green/Red
Brake ABS,EVB
Enging EURO 2,EURO 3,EURO 4
