High Power 30W LED Floodlights 120°with IP65 Integrated Chip AND Aluminum Alloy Die Cast
High Power 30W LED Floodlights 120°with IP65 Integrated Chip AND Aluminum Alloy Die Cast
Specifications
Place of Origin :
shenzhen
Brand Name :
spring-lighting
Certification :
CE RoHS
Model Number :
SPL-FL30WAS
MOQ :
1PCS
Price :
0-40USD/PCS
Packaging Details :
1.Put into a standard CTN 2.Also according your need
Delivery Time :
1day for samples,5-15days for order production
Payment Terms :
L/C,TT .Western Union
Supply Ability :
100000pcs/month or more
Input Voltage :
DC10-28V
LED Working Voltage :
DC30～36V
Total Power :
35W
Beam Angle :
120°
Description

High Power 30W LED Floodlights 120°with IP65 Integrated Chip AND Aluminum Alloy Die Cast

LED flood light applications: Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

DC 30W Led flood lamp

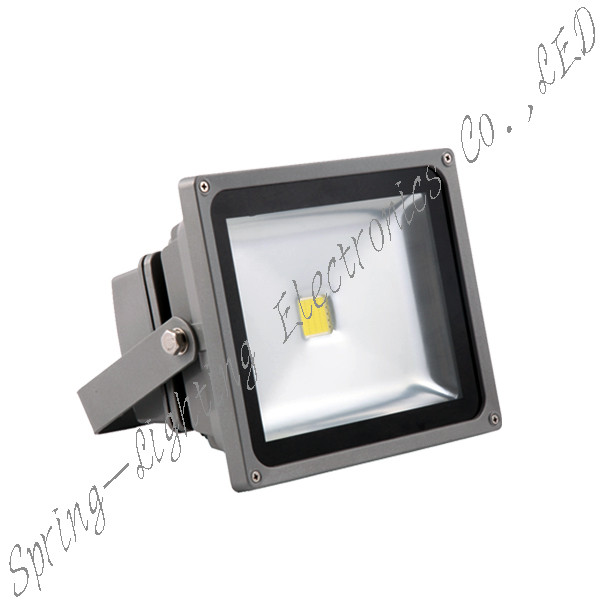

【1】Product Appearance

Speciality

(1)Adopting integrated Chip as light source with high lighting efficiency (80-100LM/W) , high CRI(Ra>70), good quality heat dissipation, low light degradation.

(2)Aluminum alloy die cast housing, good strength, high quality heat dissipation. anti corrosion and baking varnish surface, can be for outdoor using.

(3)Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options for lighting distribution, one is for focusing, another is for diffusing.

(4)Supply electricity by using low voltage and direct current, gives high safety factor, suitable for lighting in outlying area and the wild.

【2】Shape Structure

Shell Material:Aluminum

Shell Color:hoar/Black

Net Weight:2.5Kg

Unit:mm ±1mm

3】Parameter

Input Voltage

DC10-28V

 Color Rendering Index

Ra>70
Power Factor

>0.97

 Beam Angle

120°
Power Efficiency

>87%

 LED Reduction Rate

1～3% / 1,000Hrs
LED Working Voltage

DC30～36V

 Color Temperature

2700～7000K
Total Power

35W

 Working Temperature

-20℃～+45℃
Luminous Efficiency

80～100lm / W

 IP Grade

IP65
Working Life-span

>35000H

 Power line

VDE 3×1mm2
Connect wire

Brown→L / Blue→ N/Yellow or Green→G

【6】Illumination Distance/illuminance/Irradiated Area

【7】Packing specification

Packing Dimension:(L)554×(W) 340×(H) 264mm 4PC/CTN 12Kg

Attentions:

1,Only professional electrician can install the lamp, please check the lamp very carefully before installation.

2,Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
