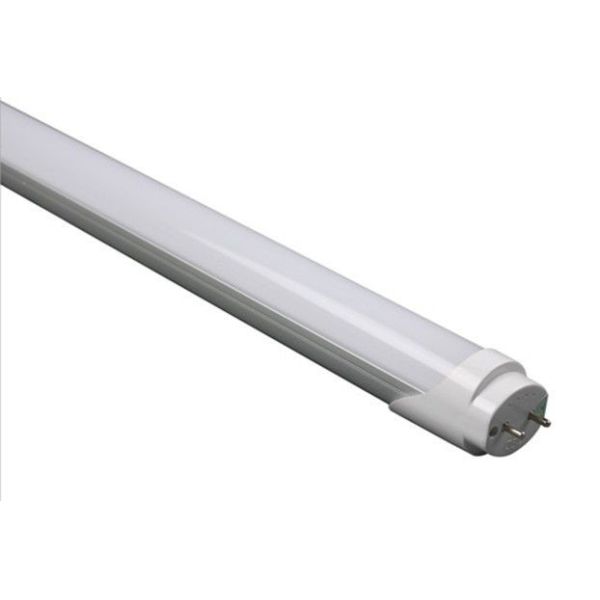

High Brightness 10W T8 LED Tube Lights Fixtures 600mm , LED Tube Lighting Lamp
High Brightness 10W T8 LED Tube Lights Fixtures 600mm , LED Tube Lighting Lamp
Specifications
Place of Origin :
China
Brand Name :
Spring-lighting
Certification :
CE.RoHS,C-tick.
Model Number :
SPL-10W2835CT8F2
MOQ :
1 pcs
Price :
Negotiable
Packaging Details :
66*36*34cm/48pcs
Delivery Time :
Sample within 3 days,big order between 10-15 days
Payment Terms :
TT, Western Union
Description

High Brightness 10W T8 LED Tube Light Fixtures 600mm, LED Tube Lighting Lamp

Description:

  • Caps could be developed to rotatable socket, easy to adjust beaming angle
  • Epistar led with wide light-emitting area, high brightness and low light decay
  • Aluminum housing and PC cover(Transparent, frosted wave PC covers)
  • The light even effect and no dark area, efficacy 85~110LM/W
  • Power adopt isolation scheme, constant-current driver, safe and reliable. Conversion efficiency can reach more than 85%, PF>95%
  • Up to 60% energy savings
  • CE RoHS TUV UL compliant
  • With 3 Year Warranty

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Model SPL-10W2835CT8F2
LED Qty 144pcs
LED Type Epistar 3528 smd LED
LED Power 10W
LED Color Warm white, Pure white, Cool white
Input Voltage AC85~265V
Frequency Range 50Hz – 60Hz
Power Factor >95
Power Efficiency >85%
Luminous Efficiency 85~110LM/W
Dimension L600mm x D28mm
Color Temperature WW 2700-3500K
PW 4000-5500K
CW 6000-7000K
CRI WW Ra>73
PW / CW Ra>78
Lumens Output WW 800lm
PW 900lm
CW 950lm
Beam Angle >120°
PC Housing Transparent / Frosted / Wave
Working Temperature -20℃ ～ +40℃
Storage Temperature -25℃ ～ +65℃(25℃best)
Life span 35000~50000hrs
Certification CE, RoHS, FCC
Net Weight 230g
package 65*21*20cm (25pcs/box) 8kgs

Curve of light distribution & Lux distance(Ta=25℃±3℃)

Comparison of color temperature:

Comparison of Lifetime:

Fluorescent Tube 6000,hrs lifetime Increase the
replacement cost
LED Tube Lights 50000,hrs lifetime long time with
3 years warranty

LED tube light dimension (mm)

LED Tube Composition:

Installation Instruction:

Package:

Applications:

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.
