HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
Specifications
Banding Material :
Kraft Paper/OPP Tape
Delivery Time :
30 work days
Min. Banding Size :
40×10mm(W×H)
Certification :
CE
Banding Width :
20/30/50mm(selectable)
Price :
USD 1720 per set
Packaging Details :
Stretch Film with Wooden Case
Weight :
56KG
Supply Ability :
10 sets/month
Dimension :
400×560×1100mm(L×W×H)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Banding Strength :
5-60N
Place of Origin :
China
Max. Banding Size :
410×200mm(W×H)
Brand Name :
HXCP
Banding Speed :
≤26times/min
MOQ :
1 set
Description

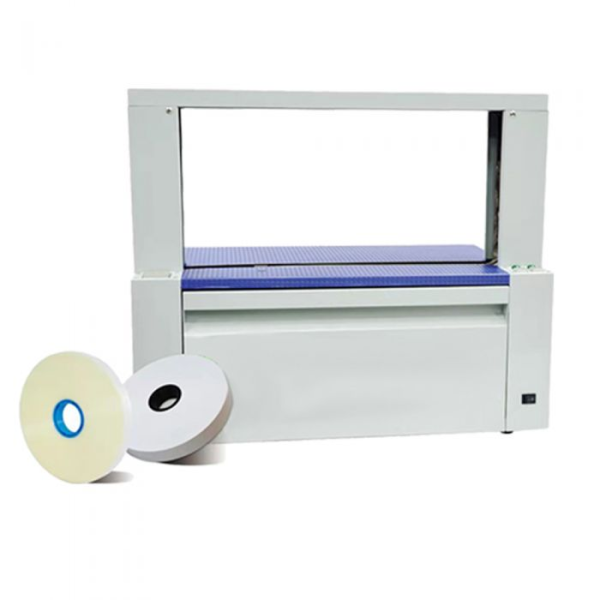

HX26 Adjustable Tension Banding Device
This versatile machine protects goods from edge compression damage while binding various commodities including printed labels, packing inserts, textiles, and general consumer goods. It supports two binding materials: kraft paper band and OPP plastic tape.
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage
HX26 Adjustable Tension Banding Device Protecting Goods from Edge Compression Damage

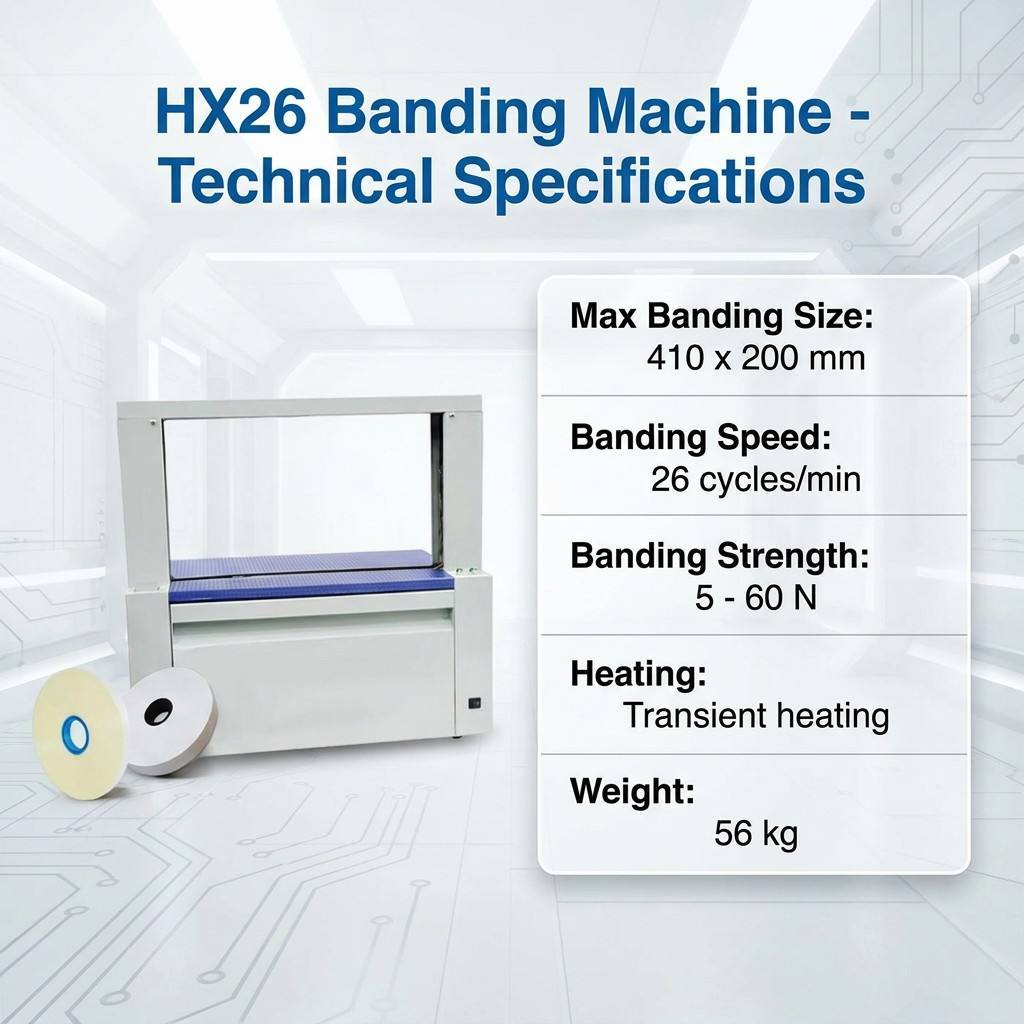

Technical Specifications

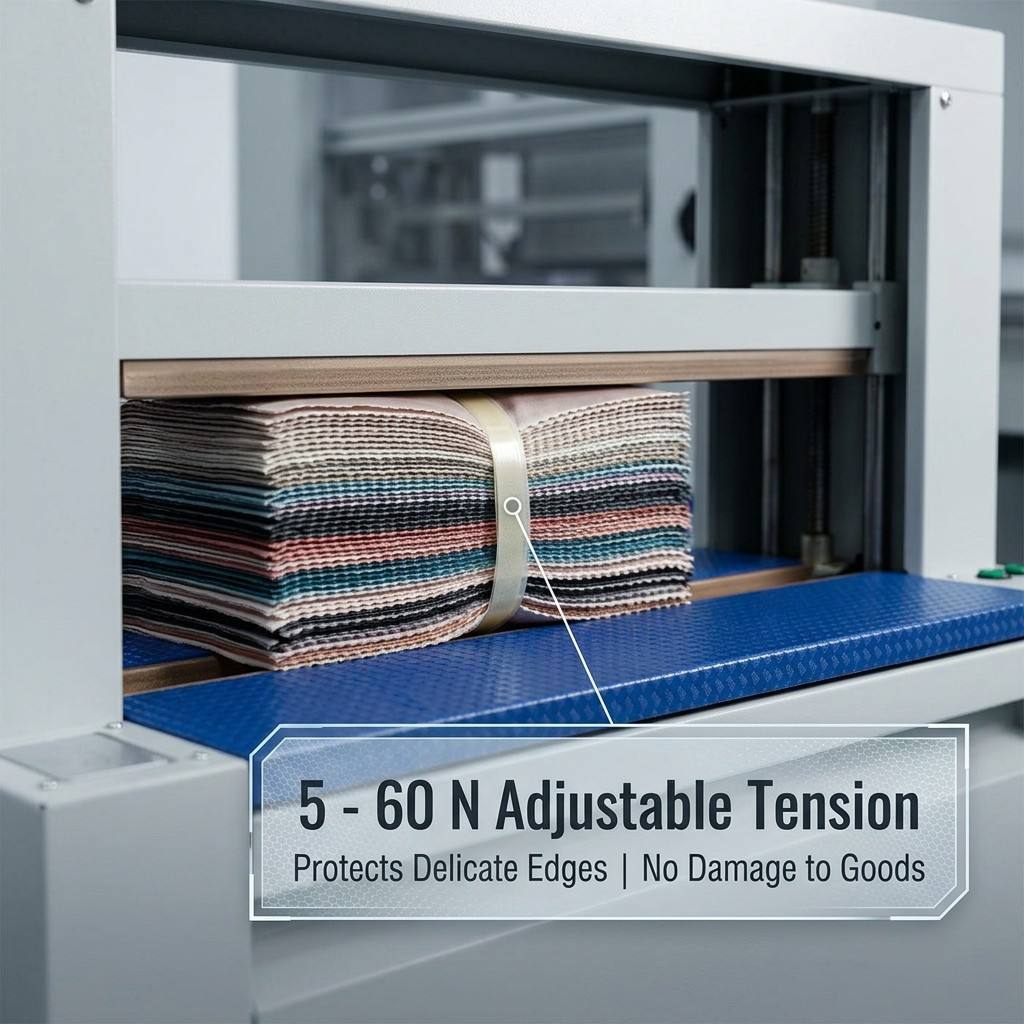

  • Adjustable tension system: 5N to 60N range
  • Maximum working speed: 26 cycles per minute

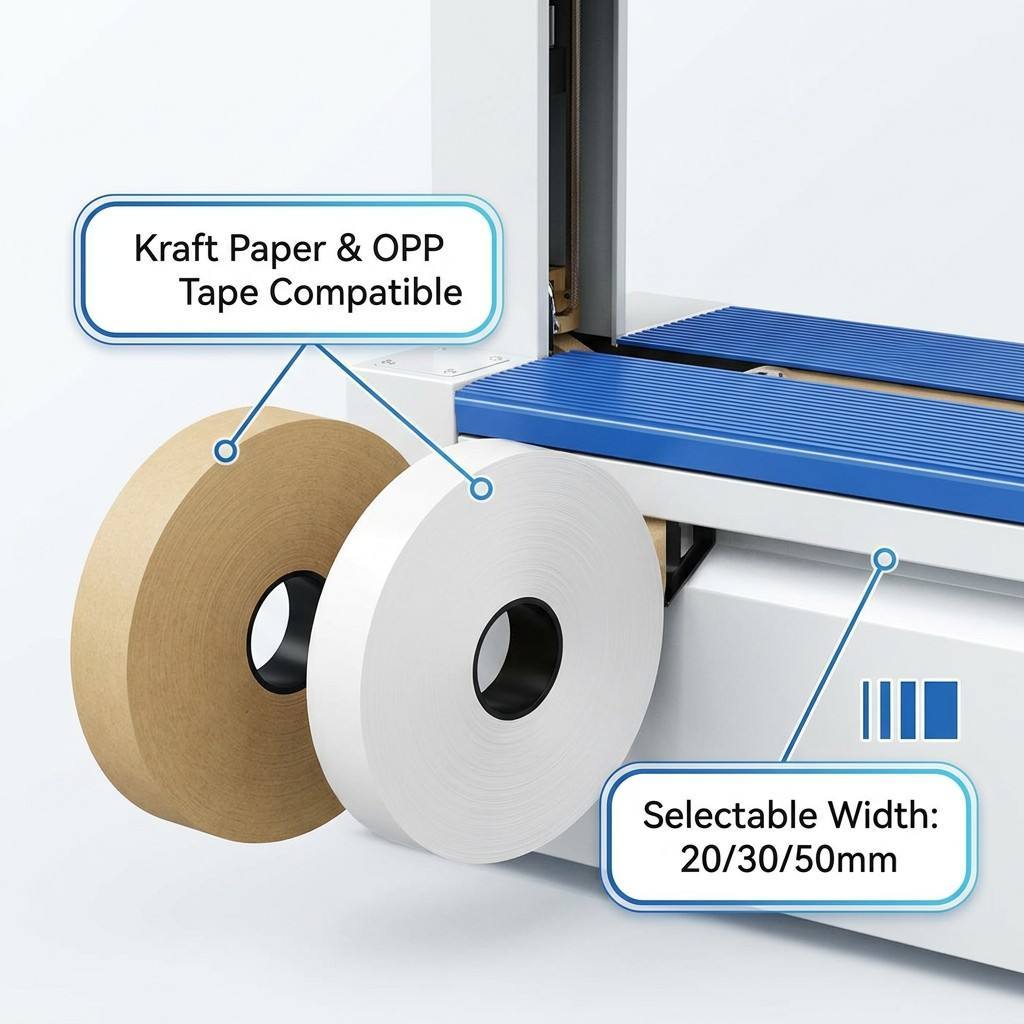

  • Binding materials: Kraft paper band and OPP plastic tape
  • Compact and intelligent structure design
Application Scenarios
  • Bundling of printed products: labels, leaflets, brochures, booklets and printed inserts in printing houses
  • Packaging consolidation for textile fabrics, cloth accessories and soft textile finished goods
  • Consolidation packing of small daily consumer goods for retail shops and commodity warehouses
  • Office document, bill, file sorting and bundling for enterprise administrative offices
  • Small parts finished product bundling and temporary packaging in packaging processing plants
Core Advantages
Two optional strapping materials expand application flexibility for different packaging standards. Customizable tension setting from 5N to 60N delivers gentle clamping for fragile items and firm binding for rigid products without surface abrasion. Up to 26 cycles per minute enhances packaging efficiency compared with manual bundling ways. Small footprint makes placement unrestricted, and stable operational performance provides consistent bundling quality for long-term daily use across multiple industries.
