HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
Specifications
Model :
HX60R
Maximum Case Size :
700×400mm (L×W)
Dimensions :
2600×1200mm (L×W)
Power :
2kW
Voltage :
400v/3ph
Model Number :
HX60R
Certification :
CE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability :
10 sets/month
Brand Name :
HXCP
Place of Origin :
China
MOQ :
1 set
Delivery Time :
30 work days
Packaging Details :
Stretch Film with Wooden Case
Minimum Case Size :
150×100mm (L×W)
Fastest Speed :
60m/min
Gas Demand :
900L/min @6bar
Weight :
800kg
Description

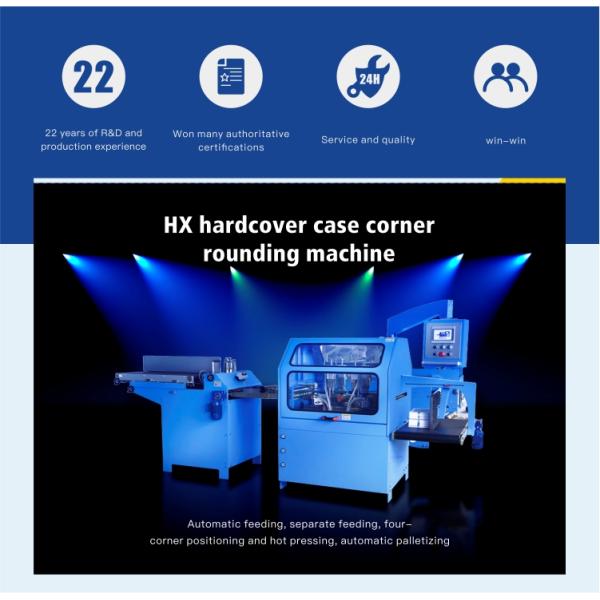

HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

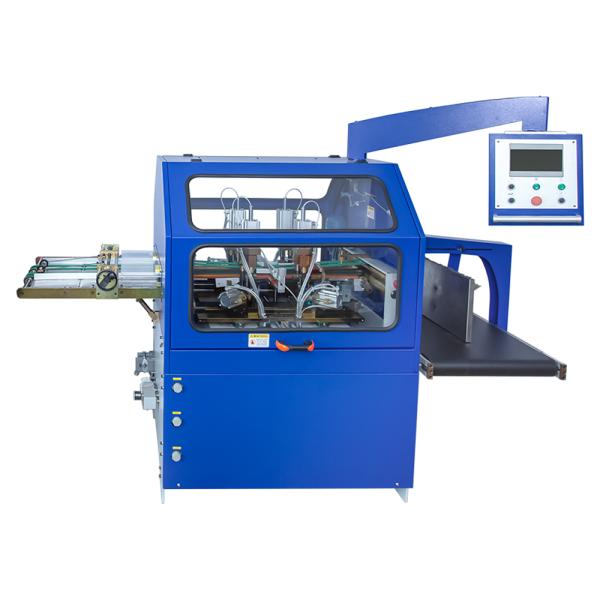

HX60R​ Automatic Hardcover Case Corner Rounding Machine

HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

Description
HX60R Hardcover Case Corner Rounding Machine hardcover case is conveyed into the working area though the feeding table conveyor belt, then pressed and formed into round corners by the air cylinders and the hot press, and finally sent out the working area to be stacked on the collecting table after the corner round forming, the edge of corner is smooth and mellow. It is used to round corners of book covers, especially for hardcover books. The machine with the transparent protective cover, is able to clearly observe the working procedures and ensures the safety of the operator. Operate through the panel control system, which is easy and quick to get started.

HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

The case of right corners is conveyed into the working area though the feeding table conveyor belt, then pressed and formed into round corners by the air cylinders, and finally sent out the working area to be stacked on the collecting table.

Function:

1. Automatic feeding of the hardcover case
2. Split-feeding the hardcover case
3. Four-corner positioning hot pressing and forming
4. Automatic counting and palletizing of the hardcover case

Features:
1. Transparent machine body, able to note the working procedures
2. Operate through a panel control system, which makes it easy and quick to get started
3. Equipped with a protective cover, which ensures the safety of the operator
4. Efficient in production, and generally equipped to the case maker

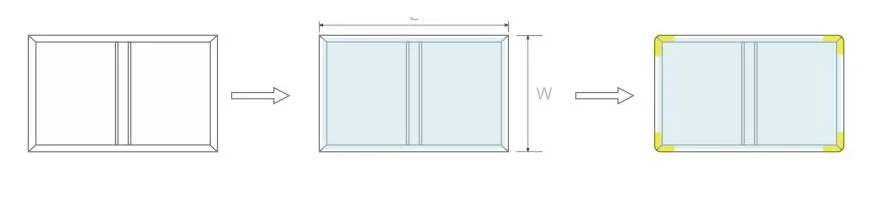

Workflow:

HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

MBO Stahl Paper Folder Paper Folding Machine CP GUK trifold for sale operator second hand used new manufacturer made in china shoie horizon Heidelberg Komori buckle leaflet brochure bookbinding post press auto folder combi combination HXCP Aster sewing machine thread sewing machine muller martini program control book block Smyth Sewn Binding HXCP bible notebook hardcover book case maker case making machine case maker hardcover case rigid box gift box board cardboard case lining hot melt gluing cold glue white glue BDM UNIVERSAL HÖRAUF Kolbus photobook

Parameters

Model

HXCP HX60R

Speed

60pcs/min

Dimension

2600*1200*1400mm(L*W*H)

Weight

800KG

Max Case Size

700×400mm(L*W)

Min Case Width

150×100mm(L*W)

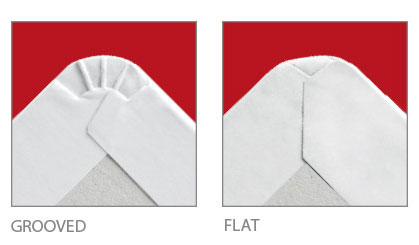

Corner Type

R3-R16

Voltage

400V/3PH

Heating Power

2KW

Gas Demand

900L/min @6Bar

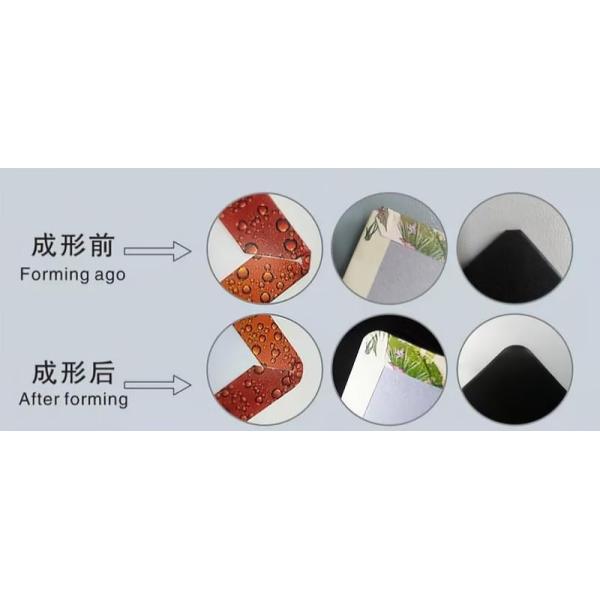

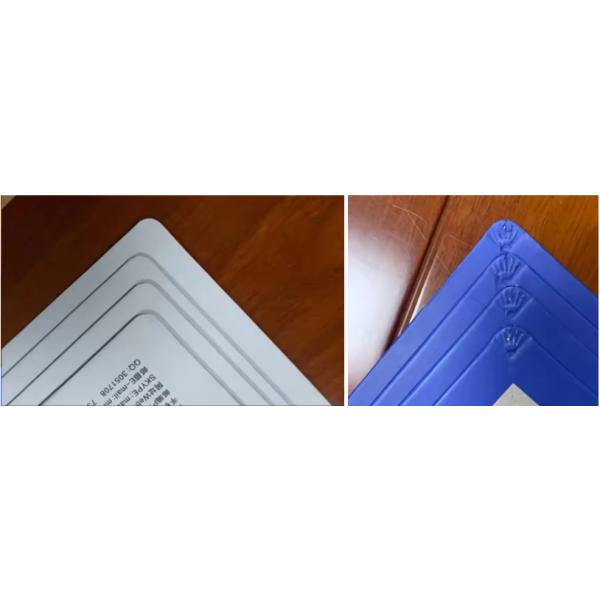

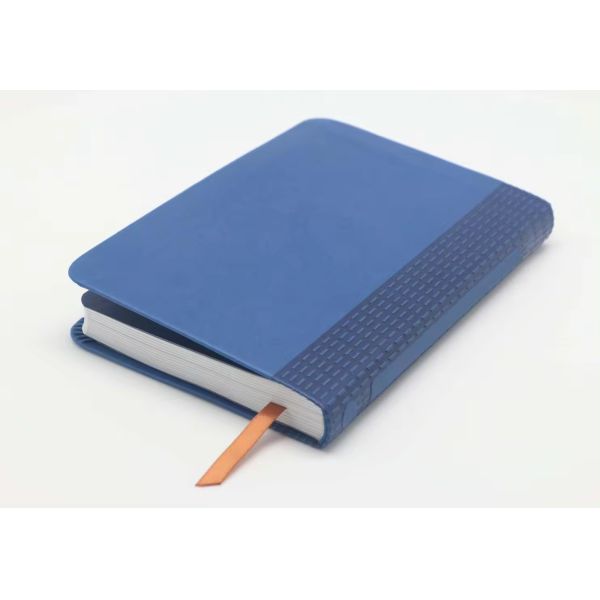

Products Show
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

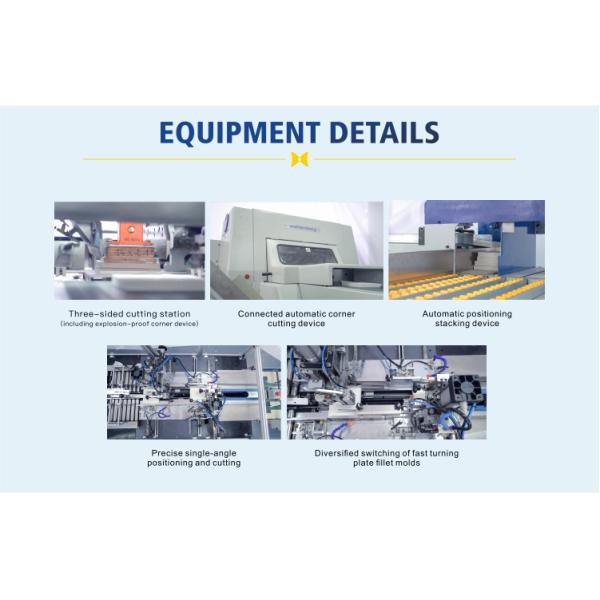

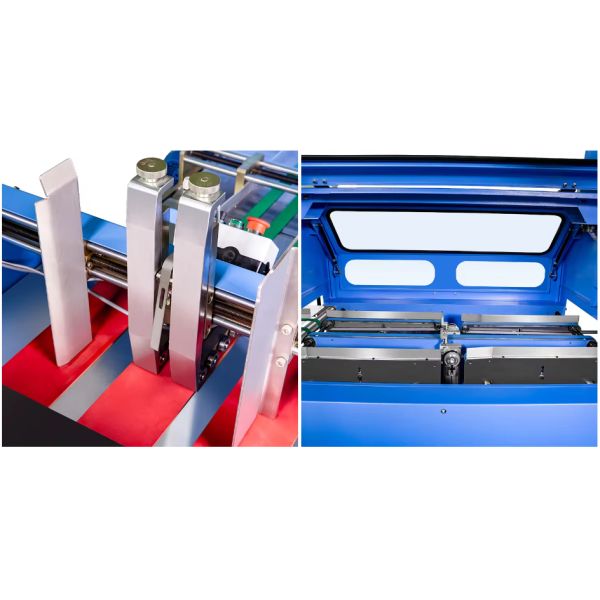

Details
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production
HX60R Case Corner Rounding Machine Automatic Hardcover Case Corner Rounding With Panel Control System For Quick Startup And Production

HXCP bookbinding hardcover book post-press perfect binding HXCP board book cardboard book paper folding machine paper folder book block exercise book notebook paper folder folding machine notebook making machine print bookbindi
