HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
Specifications
Brand Name :
HXCP
Maximum Paper Board Feeding Thickness :
5 mm
Model Number :
HX480
Place of Origin :
China
Minimum Book Thickness :
5 mm
Maximum Book Size :
320 × 450 mm(L × H)
Packaging Details :
Stretch Film with Wooden Case
Maximum Book Thickness :
30 mm
Certification :
CE
Dimensions :
Length 19.8 m(12 stations), Width 2.7 m(including footboard)
Price :
USD 40000 per set
Minimum Paper Feeding Thickness :
180 gsm(folded)
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Minimum Book Size :
100 × 180 mm(L × H)
Supply Ability :
10 sets/month
MOQ :
1 set
Maximum Speed :
4200 pcs/h
Delivery Time :
30 work days
Description

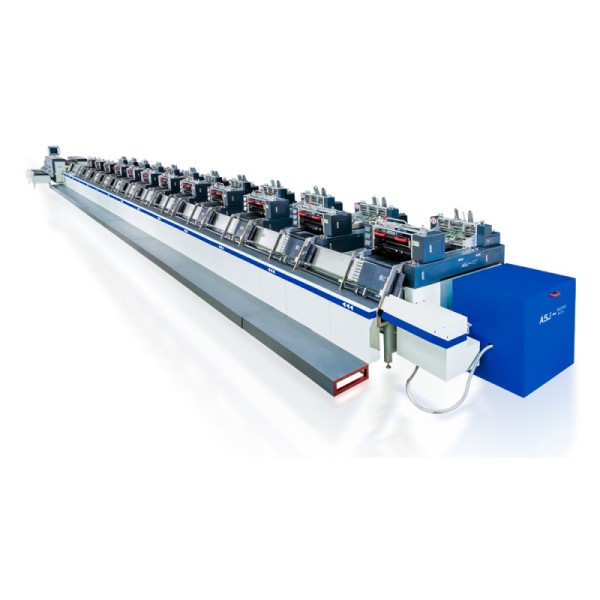

Children’s board books require high precision, flexible adaptability and stable structural bonding due to their diverse interactive designs and special cardboard materials. Traditional manual and semi-automatic processing methods struggle to meet modern mass production demands for complex-shaped, lift-the-flap and puzzle interactive board books. The HX480 Board Book Shaped Page Mounting and Pasting Production Line is an advanced professional automated production line tailor-made for children’s board book manufacturing, solving multiple industry problems in board book page mounting and pasting processing.
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process

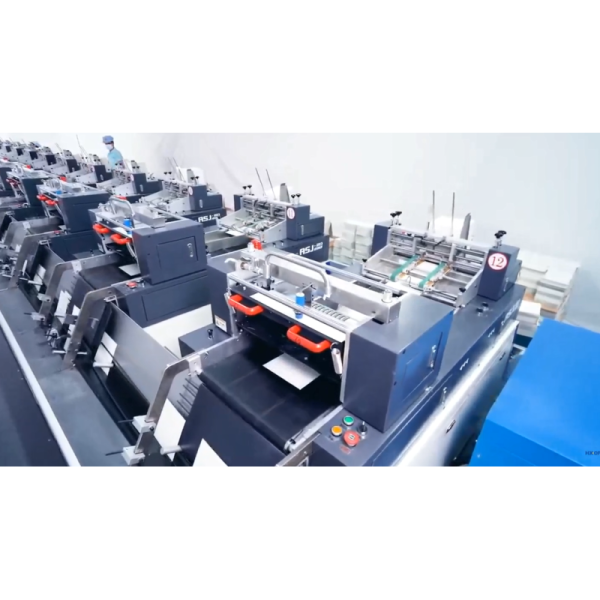

Equipped with 12 independent working stations, the production line achieves highly collaborative and segmented automated operation. It fully automates the whole process including cardboard signature feeding, gathering, precise mounting and firm pasting. The multi-station independent operation design ensures orderly and efficient production procedures, effectively improving processing accuracy and overall production throughput while maintaining stable long-term continuous operation.
HX480 Board Book Shaped Page Mounting Pasting Production Line 12 Working Stations Inline Process
One of the core advantages of this equipment is its professional partial gluing function. Different from ordinary full-gluing machines, it supports targeted and segmented gluing, perfectly adapting to various complex interactive board book designs. It can skillfully handle special structures such as punched pages, lift-the-flap pages and interactive puzzle pages, realizing accurate gluing without affecting movable and interactive parts. It ensures both firm page bonding and flexible activity of interactive components, greatly expanding the production range of creative children’s board books.
  • Maximum Book Size
  • 320 × 450 mm(L × H)
  • Minimum Book Size
  • 100 × 180 mm(L × H)
  • Maximum Book Thickness
  • 30 mm
  • Minimum Book Thickness
  • 5 mm
  • Maximum Paper Board Feeding Thickness
  • 5 mm
  • Minimum Paper Feeding Thickness
  • 180 gsm(folded)
  • Maximum Speed
  • 4200 pcs/h
  • Power
  • 8 kW
  • Detection
  • Automatic stop for missing sheet at any station
  • Dimensions
  • Length 19.8 m(12 stations), Width 2.7 m(including footboard)
  • Weight
  • 10.5 T
This production line integrates independent gathering, precision mounting and intelligent pasting into one seamless inline continuous workflow. It eliminates tedious manual procedures, reduces human error, and realizes standardized, integrated and automated production for board book page forming. It effectively improves finished product uniformity, reduces defective rates, and greatly upgrades production efficiency compared with traditional processing methods.



Dedicated to high-quality and diversified children’s board book production, the HX480 automated production line is an ideal intelligent upgrading device for printing and bookbinding enterprises focusing on children’s book manufacturing. It enables manufacturers to efficiently produce various creative and complex interactive board books with stable quality and higher output.
