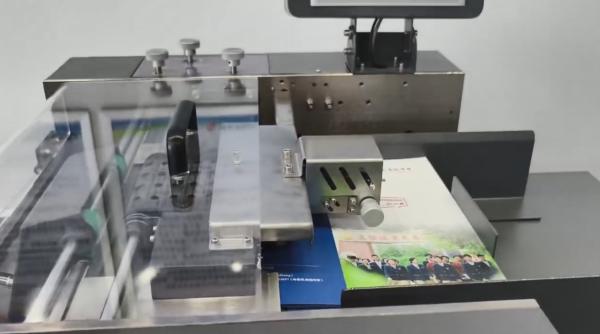

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
Specifications
Supply Ability :
3 sets/month
Weight (Front Cutting) :
170kg
Front Cutting Length :
95-238mm
Paper Width :
145-340mm
Price :
USD 27200 per set
Packaging Details :
Stretch Film with Wooden Case
Weight (Double-Sided Cutting) :
358kg
Paper Length :
200-480mm
Double-Sided Cutting Width :
140-335mm
Speed with Cover :
Max 2800 times/h
Folding Thickness :
0.2-2.5mm
Brand Name :
HXCP
Payment Terms :
D/P, D/A, T/T, L/C
Min Product Size :
145×100mm
Binding Speed :
Max 4000 times/h
Front Cutting Speed :
Max 3500 times/h
Double-Sided Cutting Thickness :
5mm
Delivery Time :
20 work days
Front Cutting Width :
Max 340mm
Max Product Size :
340×240mm
Weight (Stitcher/Folder & Delivery) :
345kg
Place of Origin :
China
Front Cutting Thickness :
5mm
Dimensions :
4700×950×1000mm(L×W×H)
Double-Sided Cutting Speed :
Max 2800 times/h
MOQ :
1 set
Binding Thickness :
0.2-2.5mm
Double-Sided Cutting Length :
98-238mm
Description

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

The HX480P Covering Stitching Trimming Machine is a high-efficiency integrated finishing solution specially designed for booklet production. It combines multiple core processes into one fully automatic line, including cover feeding, saddle stitching, folding, flat pressing and three-side trimming. This all-in-one design eliminates the need for multiple standalone devices and frequent material transfer, greatly streamlining the entire booklet manufacturing workflow.




Constructed with a robust heavy-duty steel frame, the machine features outstanding structural rigidity and operational stability. It can withstand long hours of continuous high-speed running without vibration or deformation, laying a solid foundation for consistent production quality in busy print workshops.

Equipped with advanced servo-driven synchronized feeding system, the equipment ensures steady and accurate material delivery throughout operation. It also supports intelligent automatic adjustment for stitching heads and cutting dimensions. Operators can complete parameter setting quickly, which dramatically cuts down traditional manual debugging time and improves overall production flexibility.
Fitted with a professional flat press unit and high-precision trimming mechanisms for front and double sides, the machine delivers neat pressing effect and clean, burr-free cutting results. Every finished booklet features tidy edges, uniform shape and standard appearance, meeting strict quality requirements for commercial printed products.
Boasting a remarkable working speed up to 2800 cycles per hour, this machine achieves excellent productivity for mass production. Its optimized mechanical and control system not only raises output but also maintains stable performance during long-term operation, balancing high speed and reliable quality perfectly.
Optimized for modern digital print environments, the HX480P requires minimal setup time and adapts well to diverse production demands. Whether for bulk orders or variable small-batch tasks, it always produces well-finished booklets efficiently. It is undoubtedly a cost-effective and high-performance upgrade choice for printing and post-press enterprises.

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line

HX480P Booklet Processing Machine servo synchronized feeding multi function integrated line
