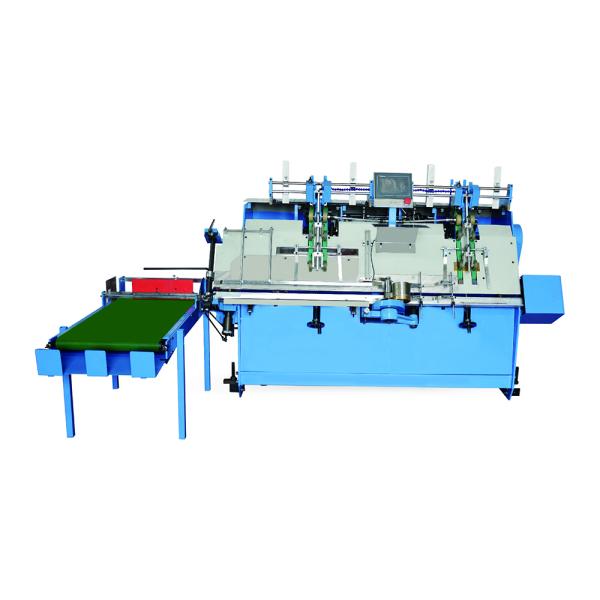

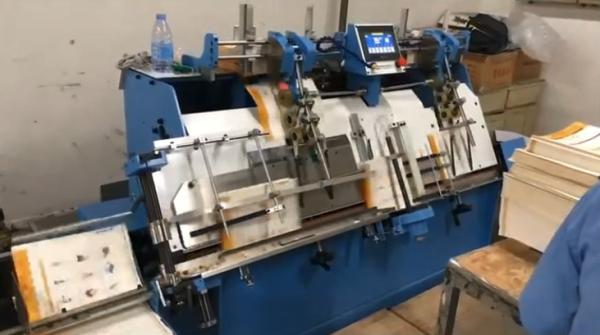

Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Specifications
Certification :
CE
Max size of Cover/Sticker :
440×300mm
Max Pasting Speed :
5000Page/Hour
End Sheet Thickness :
80-300gsm
Machine Power :
4.5Kw
Dimensions :
2580×1780×1380 mm(L×W×H)
Place of Origin :
China
Supply Ability :
10 sets/month
Min Size of Cover/Sticker :
155×100mm
Weight :
950Kg
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Signature Thickness :
0.5-2mm
Brand Name :
HXCP
Max Inserting Speed :
7000Page/Hour
Model Number :
HXNP440
Delivery Time :
30 work days
Packaging Details :
Stretch Film with Wooden Case
Price :
USD 16000 per set
Description
Precision and consistency in book finishing are essential to deliver premium-quality notebooks and diaries in today’s competitive printing industry. The Automatic End Sheet Pasting and Paper Inserting Machine is a multi-functional, intelligent finishing equipment specially engineered to streamline end sheet lining, paper pasting and signature inserting processes for modern book production.
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
Featuring versatile processing capabilities, the machine efficiently handles page converting and end sheet pasting, while supporting flexible insertion of single sheets, folio papers and folded signatures. It serves as an ideal dedicated solution for end sheet lining production of notebooks, diaries and various bound books, perfectly meeting the standardized finishing requirements of stationery and book manufacturing.
Automatic End Sheet Pasting Paper Inserting Machine Notebook Diary Lining Missing Sheet Detection
What distinguishes this machine from traditional manual and semi-automatic equipment is its built-in intelligent detection system. Equipped with automatic monitoring functions for double sheets, missing sheets and blocked books, it actively identifies and rejects defective materials during continuous operation. This intelligent error-proof design effectively reduces defective products, minimizes material waste, and stabilizes batch production quality.
  • Max size of Cover/Sticker
  • 440×300mm
  • Min Size of Cover/Sticker
  • 155×100mm
  • Max Inserting Speed
  • 7000Page/Hour
  • Max Pasting Speed
  • 5000Page/Hour
  • End Sheet Thickness
  • 80-300gsm
  • Signature Thickness
  • 0.5-2mm
  • Machine Power
  • 4.5Kw
  • Weight
  • 950Kg
  • Dimensions
  • 2580×1780×1380 mm(L×W×H)
By integrating multi-process functions and smart quality inspection into one compact unit, the machine simplifies complicated manual procedures, lowers labor dependence, and greatly boosts overall production efficiency. It ensures precise paper inserting, neat sheet pasting and flawless book finishing results in every batch.



Ideal for both small-batch customized orders and large-scale mass production, this reliable end sheet pasting & inserting machine is a cost-effective and high-performance upgrade for printing factories and bookbinding workshops pursuing stable output and premium finished product quality.
