HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
Specifications
Delivery Time :
30 work days
Power :
0.75kw
Place of Origin :
China
Model :
HX60BCR
Packaging Details :
Stretch Film with Wooden Case
Certification :
CE
Warranty :
1 Year
Dimensions :
850×1100×1400mm
Material :
Book Bloclk, Board Book
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Maximum Length :
420mm
Brand Name :
HXCP
MOQ :
1 set
Speed :
170pcs/min
Application :
Book Binding
Rated Voltage :
380v
Supply Ability :
30 sets/month
Paperboard Thickness :
1-5mm
Model Number :
HX60BCR
Price :
USD 29000 per set
Maximum Width :
60mm
Product Type :
Trimming Machine
Description

HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process

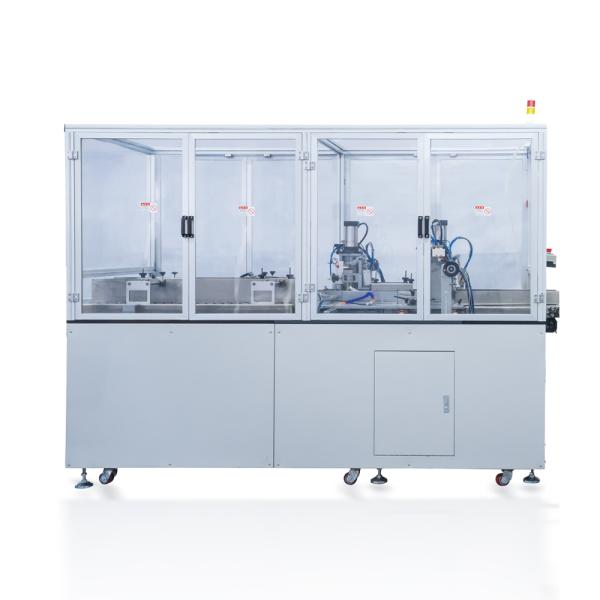

HX60BCR​ Automatic Book Block Corner Rounding Trimming Machine

HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process



Description

HXCP HX60BCR Automatic High-speed Book Block Round Corner Trimming Machine is your ideal high productivity machine for the diary and notebook, perfect binding book, board book, and photo book's book block round corner trimming, can be connected with the three-knife trimmer, after the three-side trimmer, the book block will be sent to the trimmer stack with the automatic feeder, patented precise single-angle positioning trimmer system allows the book block＇s round corner is precise and smooth, and the corner mold is easy to change, automatic counting and stacking, all process is hand free and high efficiency. The speed can be 40 pcs/min, allowing the book block thickness from 10-60mm, and the different jobs conversion time only needs 15-20 mins.

HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process

HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process

MBO Stahl Paper Folder Paper Folding Machine CP GUK trifold for sale operator second hand used new manufacturer made in china shoie horizon Heidelberg Komori buckle leaflet brochure bookbinding post press auto folder combi combination HXCP Aster sewing machine thread sewing machine muller martini program control book block Smyth Sewn Binding HXCP bible notebook hardcover book case maker case making machine case maker hardcover case rigid box gift box board cardboard case lining hot melt gluing cold glue white glue BDM UNIVERSAL HÖRAUF Kolbus photobook

Parameters

Model Name

HX60BCR

Voltage

380V

Dimension(L*W*H)

3300*850*1600mm

Weight

1000KG

Warranty

1 Year

Max Block Size

H380*W350mm

Min Block Size

H110*W100mm

Speed

30 knife/min

Cutting Thickness

10-150mm

Cutting Method

2 corners/time

Yield

99.5%±0.5%

Conversion Time

15-20min

Gas Source

200L/min @0.5-0.6Mpa

Power

AC220V/3KW
Products Show
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process

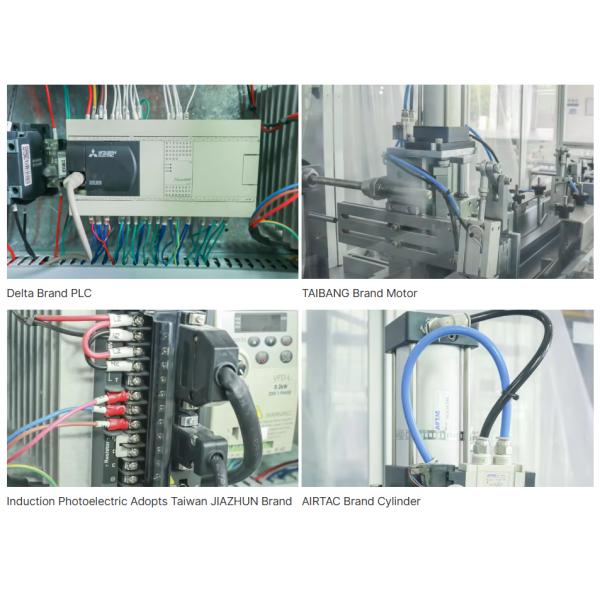

Details
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process
HX60BCR Book Block Corner Rounding Trimmer Automatic Machine with Automatic Feeder and Stacker for Book Block Corner Rounding Process

HXCP bookbinding hardcover book post-press perfect binding HXCP board book cardboard book paper folding machine paper folder book block exercise book notebook paper folder folding machine notebook making machine print bookbinding
