Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Specifications
Trimming Speed :
300-4200cuts/h
Price :
USD 225000 per set
Packaging Details :
Stretch Film with Wooden Case
Brand Name :
HXCP
Feeding Speed :
300-12000books/h
Electrical Box Size :
2250×670×1850mm
MOQ :
1 set
Supply Ability :
10 sets/month
Whole Machine Weight :
6000kg
Min Book Size (After Trim) :
70×100mm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Place of Origin :
China
Max Book Size (After Trim) :
305×420mm
Electrical Box Weight :
500kg
Min Trim Thickness :
2mm
Delivery Time :
30 work days
Stacking Height :
2-80mm
Max Trim Thickness :
80mm
Book Stacking Speed :
300-12000books/h
Max Book Size (Before Trim) :
310×430mm
Description

Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing

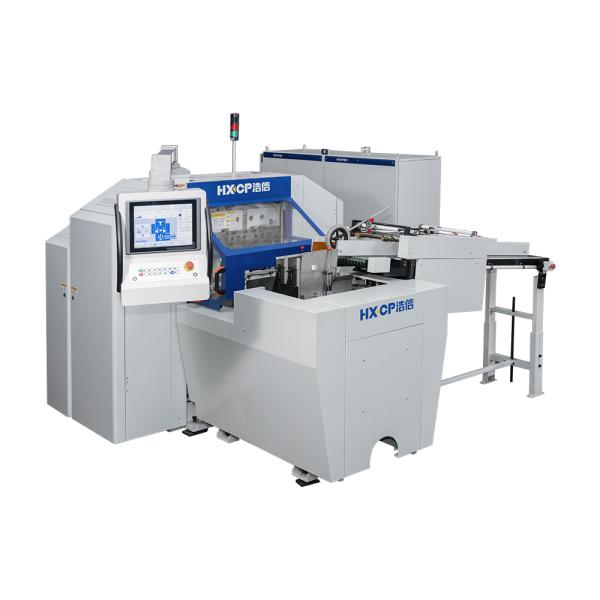

The HX120DH Three-knife Trimmer is a high-performance three-side finishing machine specially designed for perfect-bound books and book blocks. It serves as an ideal trimming solution for post-binding finishing, featuring dual-purpose usability that supports both independent standalone operation and seamless inline connection with high-speed perfect binding production lines. With strong compatibility and stable mechanical performance, it fully meets flexible and large-volume book trimming demands in modern printing factories.
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Delivering outstanding production efficiency, the machine runs steadily at a trimming speed of 4200 knives per hour for independent operation. When integrated into a complete perfect binding production line, it can synchronously support a comprehensive line speed of up to 12000 books per hour, perfectly matching high-speed continuous binding production and eliminating finishing bottlenecks in mass output.
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book FinishingAutomatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book FinishingAutomatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing

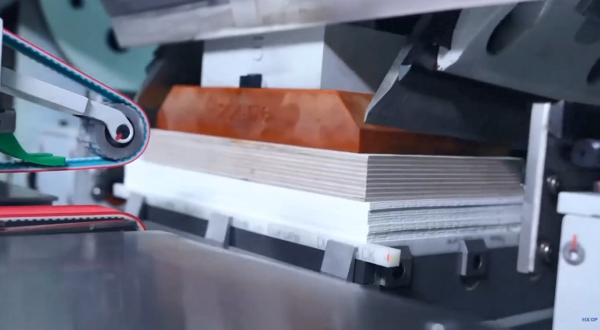

Equipped with a professional belt conveyor system, the equipment precisely separates individual books and smoothly transports them to dual pre-stacking stations. The innovative multi-book stacking and batch cutting structure greatly improves single-cycle processing capacity, multiplying overall production efficiency compared with traditional single-piece trimming machines. It ensures consistent feeding positioning and stable cutting precision during high-speed continuous operation.
  • Electrical Box Size
  • 2250×670×1850mm
  • Whole Machine Weight
  • 6000kg
  • Electrical Box Weight
  • 500kg
  • Trimming Speed
  • 300-4200cuts/h
  • Book Stacking Speed
  • 300-12000books/h
  • Stacking Height
  • 2-80mm
  • Max Book Size (Before Trim)
  • 310×430mm
  • Max Book Size (After Trim)
  • 305×420mm
  • Min Book Size (After Trim)
  • 70×100mm
  • Max Trim Thickness
  • 80mm
  • Min Trim Thickness
  • 2mm
  • Feeding Speed
  • 300-12000books/h
  • Input Air Pressure
  • ≥6Pa
  • Input Voltage
  • 3ph,380V
  • Power
  • 13kW
Focusing on stable and high-quality finishing results, the HX120DH achieves neat, flat and uniform three-side trimming for all perfect-bound book blocks. It effectively eliminates uneven edges, burrs and irregular book sizes, delivering standardized, exquisite finished books with precise dimensional consistency. Whether for small-batch independent processing or ultra-large-volume inline linkage production, it maintains reliable and stable trimming quality.



Combining dual operation modes, ultra-high production speed, dual-station stacking cutting design and stable finishing performance, the HX120DH Three-knife Trimmer maximizes workshop production efficiency. It is a cost-effective and high-reliability core finishing device for printing enterprises pursuing high-speed, standardized and automated perfect book production.
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
Automatic Three Knife Trimmer Machine For Perfect Bound Books, Book Blocks And Post Press Book Finishing
