HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
Specifications
Max Book Size (Before Trim) :
310×430mm
Model Number :
HX150DH
Price :
USD 281500 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Trimming Speed :
300-4200cuts/h
Min Book Size (After Trim) :
70×100mm
Electrical Box Weight :
500kg
Delivery Time :
30 work days
Electrical Box Size :
2250×670×1850mm
Min Trim Thickness :
2mm
Supply Ability :
10 sets/month
Max Trim Thickness :
80mm
Brand Name :
HXCP
Feeding Speed :
300-15000books/h
Max Book Size (After Trim) :
305×420mm
Whole Machine Weight :
6100kg
Place of Origin :
China
MOQ :
1 set
Stacking Height :
2-80mm
Book Stacking Speed :
300-15000books/h
Packaging Details :
Stretch Film with Wooden Case
Description

HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack

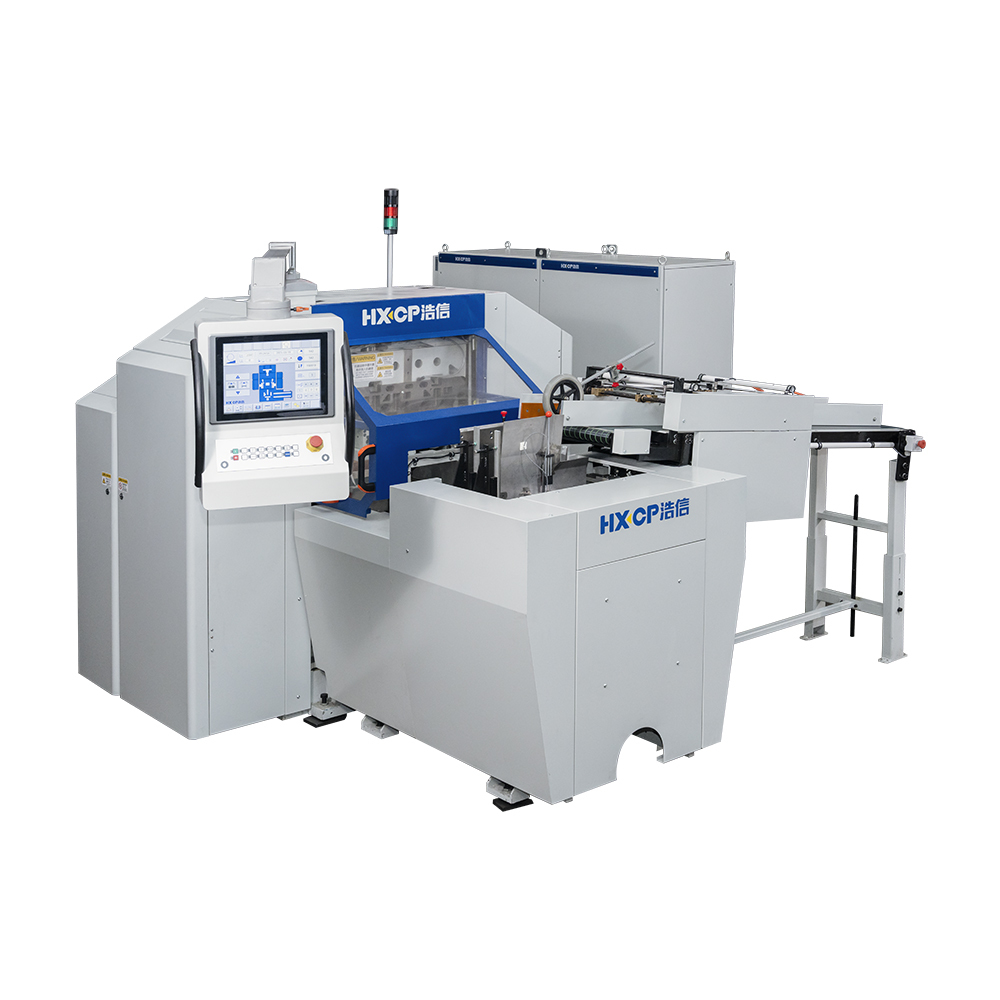

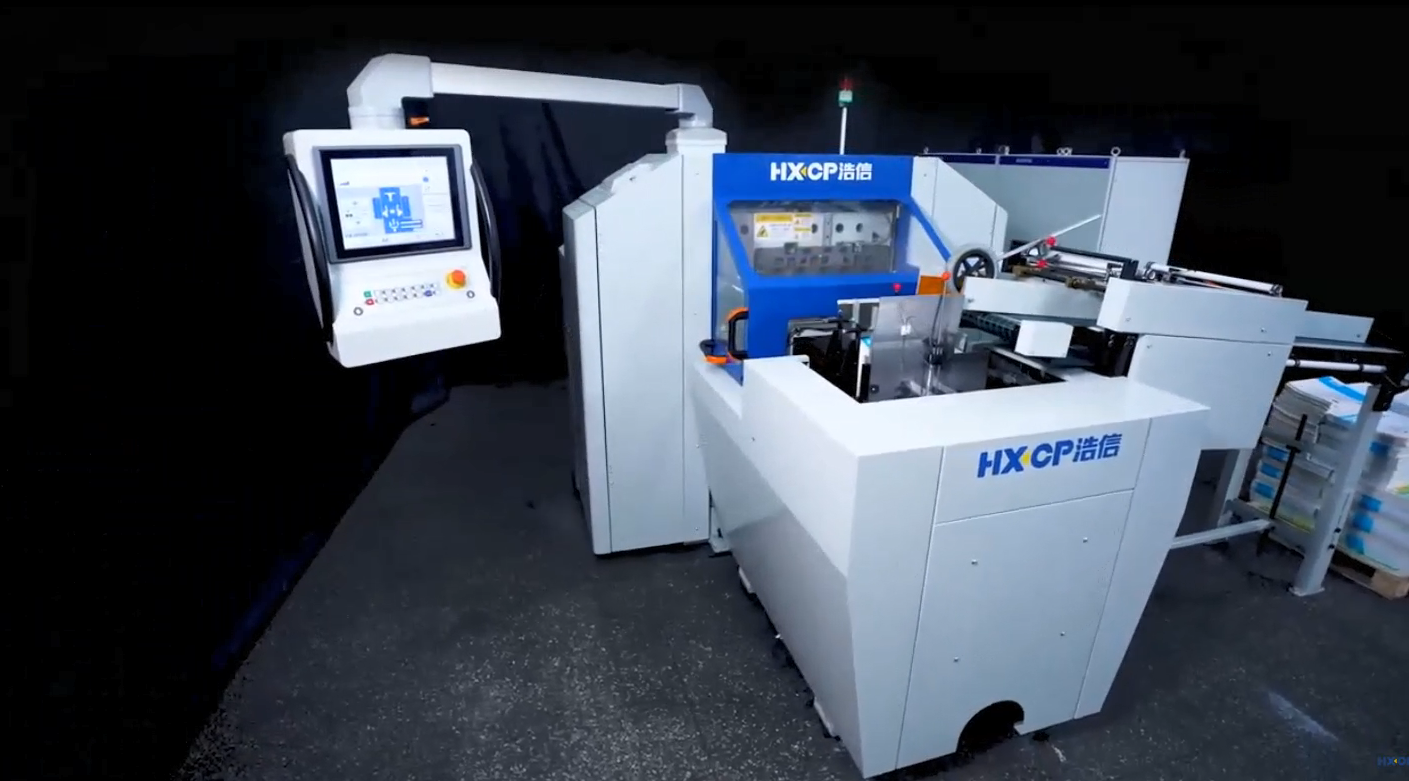

The HX150DH Three-knife Trimmer is premium three-side cutting machinery customized for perfect-bound books and book blocks, delivering outstanding high-precision trimming performance for post-press finishing workflows. It boasts dual flexible working modes to satisfy diversified production needs: it can run independently for small and medium batch orders, or be seamlessly linked with high-speed perfect binding lines for fully automated mass production, offering great layout flexibility for printing factories of all scales.
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
This trimmer features a stable independent cutting speed of 4,200 cuts per hour with consistent, neat trimming quality. Its optimized mechanical transmission and positioning structure enable perfect synchronization with top-tier perfect binding production lines, supporting an overall line throughput as high as 18,000 books per hour. It effectively eliminates trimming bottlenecks in high-volume continuous binding production and greatly lifts the overall automation efficiency of the whole workshop.
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stackHX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stackHX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack

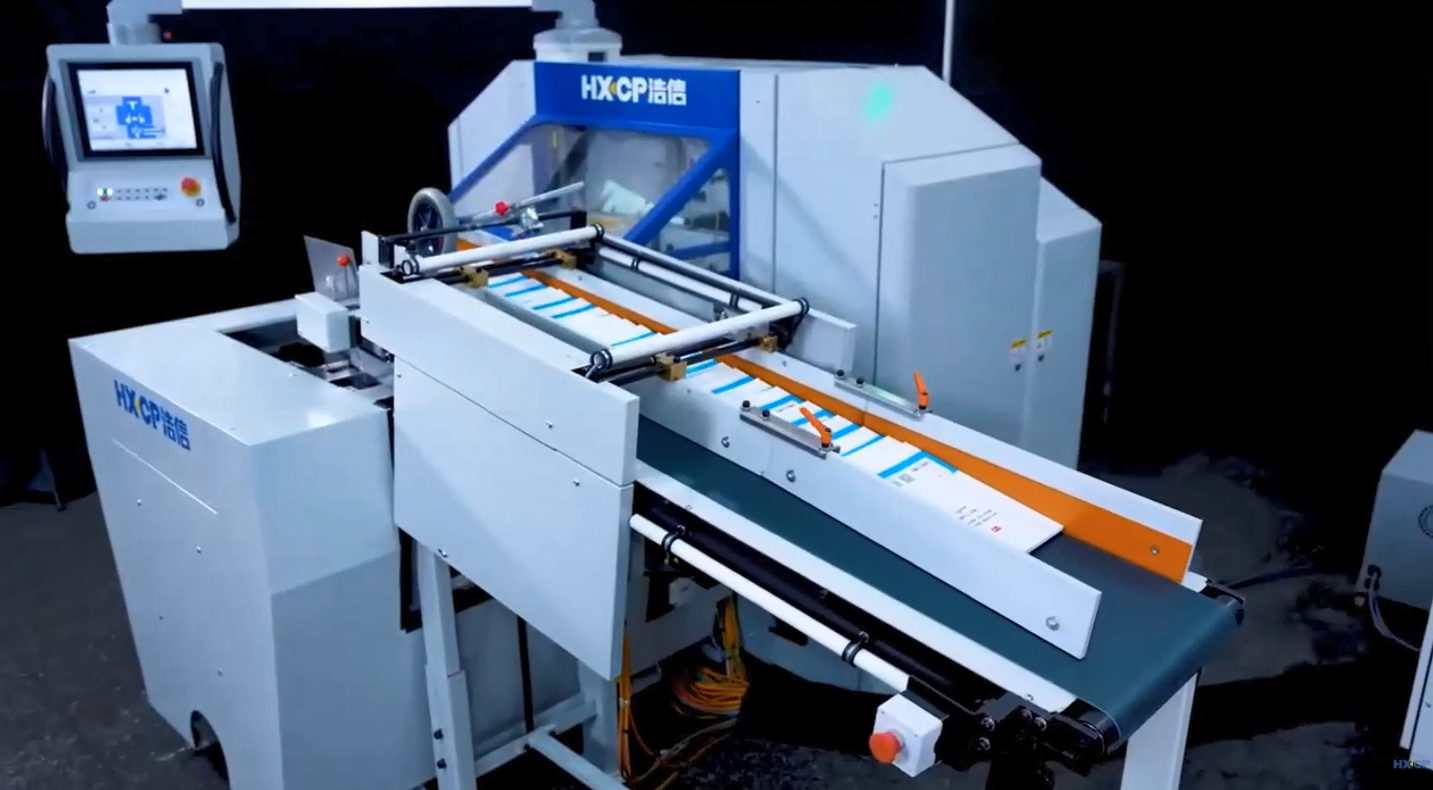

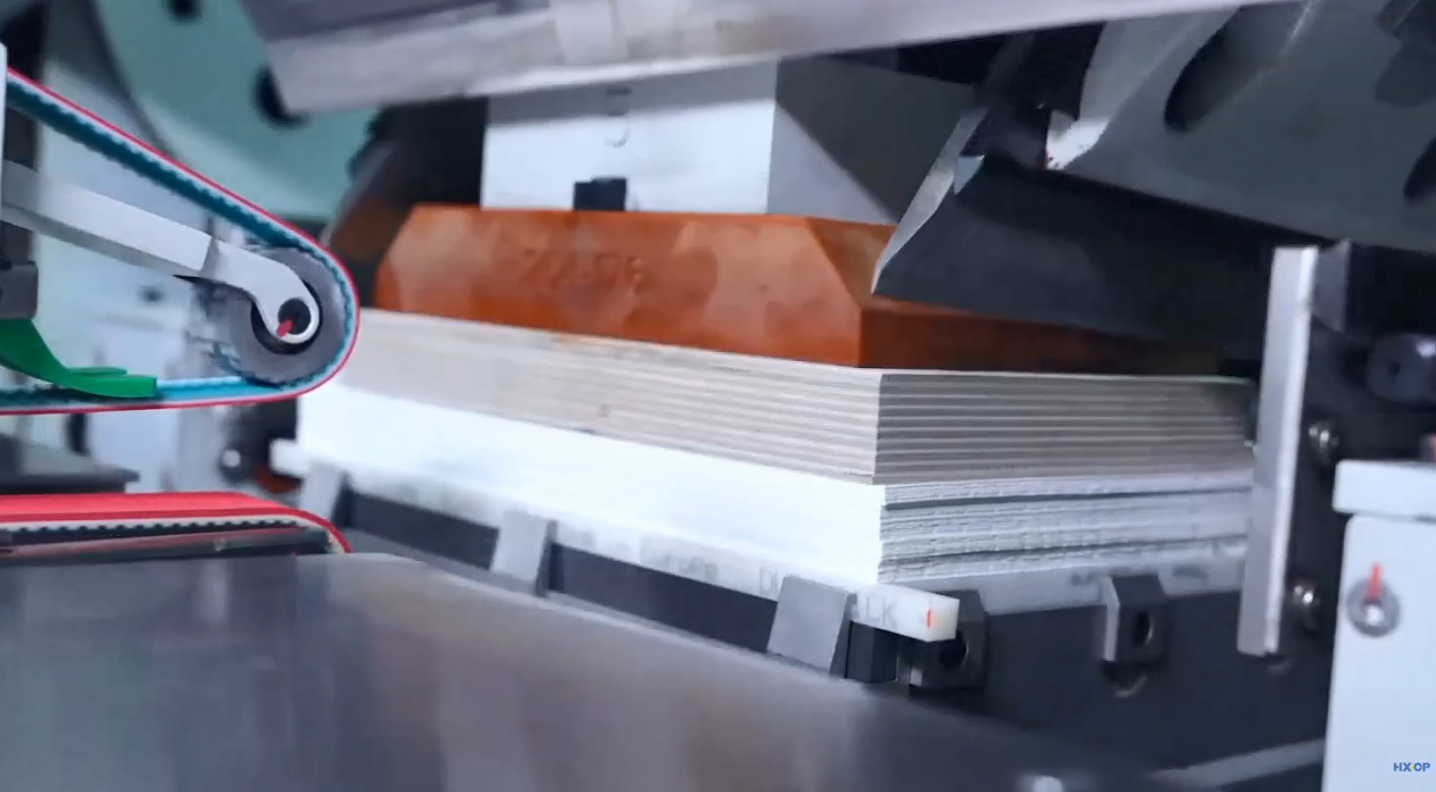

Different from traditional single-piece cutting devices, the HX150DH adopts a smooth stream feeding system that continuously conveys finished books into dedicated stacking stations. Operators can freely adjust the pusher height according to book thickness and batch requirements to realize multi-book simultaneous cutting. This batch processing design maximizes single-cycle output, drastically slashes repetitive cutting cycles and significantly boosts overall processing efficiency compared with ordinary three-knife trimmers.
  • Electrical Box Size
  • 2250×670×1850mm
  • Whole Machine Weight
  • 6100kg
  • Electrical Box Weight
  • 500kg
  • Trimming Speed
  • 300-4200cuts/h
  • Book Stacking Speed
  • 300-15000books/h
  • Stacking Height
  • 2-80mm
  • Max Book Size (Before Trim)
  • 310×430mm
  • Max Book Size (After Trim)
  • 305×420mm
  • Min Book Size (After Trim)
  • 70×100mm
  • Max Trim Thickness
  • 80mm
  • Min Trim Thickness
  • 2mm
  • Feeding Speed
  • 300-15000books/h
  • Input Air Pressure
  • ≥6Pa
  • Input Voltage
  • 3ph,380V
  • Power
  • 14kW
Reliable structural configuration guarantees stable operation during long-duration high-speed running. Every book is positioned uniformly before cutting, removing rough edges, uneven margins and dimensional deviations to deliver standardized, sleek finished books. Simple height adjustment of the pusher lowers operation difficulty, requiring minimal training for new operators to master batch trimming settings quickly.



Combining dual-purpose standalone/inline operation, ultra-high matching line speed, stream feeding and adjustable multi-book batch cutting function, the HX150DH Three-knife Trimmer is a must-have high-efficiency finishing machine for large printing manufacturers focusing on mass perfect-bound book production. It balances fast throughput, stable cutting precision and easy operation, helping enterprises cut production time and upgrade finished book quality simultaneously.
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
HX150DH Perfect Binding Trimmer 4200 cuts per hour stream feeding adjustable pusher multi book stack
