Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Specifications
Model Number :
HX450DK
Price :
USD 19500 per set
Delivery Time :
30 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
Stretch Film with Wooden Case
Punching Size :
A3,A4,A5
Place of Origin :
China
Stacking Conveyor Length :
1200mm
Speed :
100-130 times/min
Certification :
CE
MOQ :
1 set
Dimensions :
2580×1200×1200mm(L×W×H)
Supply Ability :
10 sets/month
Weight :
1300KG
Brand Name :
HXCP
Power :
380V, 2.2KW
Punching Thickness(One Time) :
0.5-4mm
Description

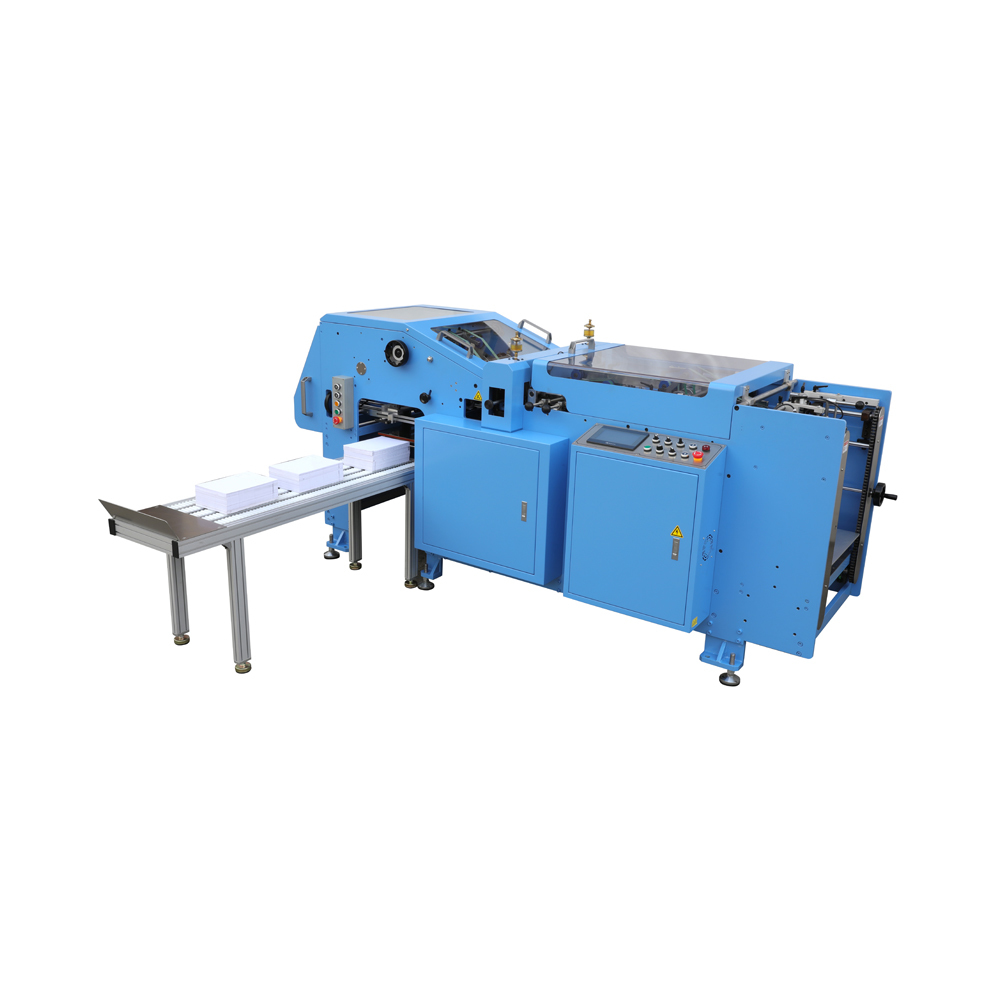

As diversified paper and plastic products keep emerging in modern post-press industry, manufacturers need flexible punching equipment adaptable to varying material thickness and processing demands. The Automatic Punching Machine is developed to cover versatile hole punching and die-cutting tasks for multiple printing items, becoming a practical all-rounder for bookbinding and stationery factories.
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
This machine features remarkable adaptability for materials of different thickness grades. It efficiently handles folded signatures, printed sheets, hardcover cases, cardboard as well as PP sheet die-cutting, breaking the limit of conventional punchers that only fit single specification paper. It satisfies two mainstream punching applications including tear-hole punching for notebook inner pages and spiral hole punching for exercise book covers.
  • Speed
  • 100-130 times/min
  • Punching Size
  • A3,A4,A5
  • Punching Thickness(One Time)
  • 0.5-4mm
  • Power
  • 380V, 2.2KW
  • Dimensions
  • 2580×1200×1200mm(L×W×H)
  • Stacking Conveyor Length
  • 1200mm
  • Weight
  • 1300KG

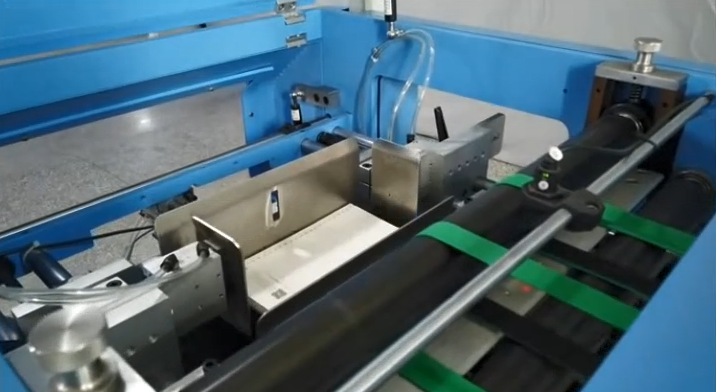

Equipped with user-friendly adjustable components, the equipment realizes quick switch for different production needs. Both convertible feeder and splitting needle support flexible adjustment to match varying material thickness, enabling stable positioning and precise punching regardless of thin paper or thick hard stock.
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
For thick boards and hardcover cases that are hard to feed manually, the built-in vacuum sucker delivers stable automatic feeding. It avoids sheet skewing or missing feeding during high-speed operation and effectively cuts material waste caused by inaccurate positioning.
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP SheetAutomatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet

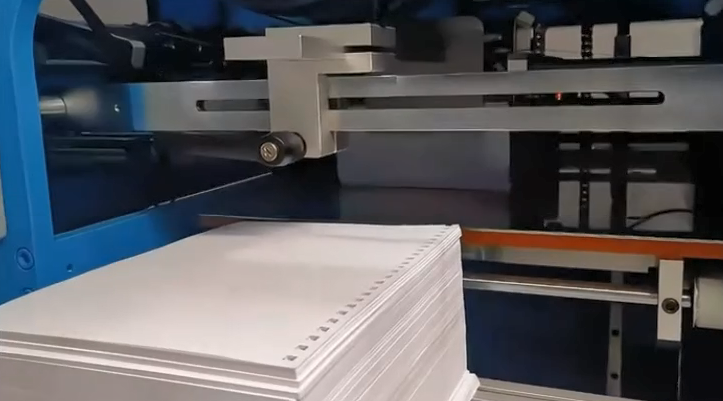

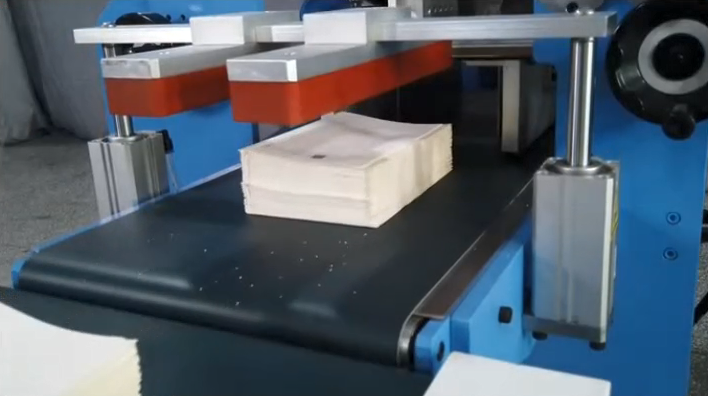

Its convertible conveyor brings dual receiving modes for flexible collection. Operators can switch freely between belt streaming collection and fixed-height stacking collection according to production plans, optimizing post-process sorting and improving overall workshop running efficiency.



Combining wide material compatibility, adjustable functional parts and dual finished-product collection modes, this automatic punching machine greatly reduces equipment investment for multi-item production. It is an ideal cost-effective upgrading option for printing plants focusing on notebooks, exercise books and various die-cut paper goods.
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet
Send your message to this supplier
Send Now

Automatic Punching Machine Splitting Needle Adjustment For Hardcover Cases Cardboard PP Sheet

Ask Latest Price
Watch Video
Product Detail
Model Number :
HX450DK
Price :
USD 19500 per set
Delivery Time :
30 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
Stretch Film with Wooden Case
Punching Size :
A3,A4,A5
