HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
Specifications
Double-Sided Cutting Thickness :
5mm
Weight (Double-Sided Cutting) :
358kg
Price :
USD 27200 per set
Payment Terms :
D/P, D/A, T/T, L/C
Min Product Size :
145×100mm
Packaging Details :
Stretch Film with Wooden Case
Brand Name :
HXCP
Max Product Size :
340×240mm
Binding Speed :
Max 4000 times/h
Binding Thickness :
0.2-2.5mm
Double-Sided Cutting Speed :
Max 2800 times/h
Paper Length :
200-480mm
Front Cutting Width :
Max 340mm
MOQ :
1 set
Weight (Front Cutting) :
170kg
Dimensions :
4700×950×1000mm(L×W×H)
Paper Width :
145-340mm
Double-Sided Cutting Width :
140-335mm
Weight (Stitcher/Folder & Delivery) :
345kg
Supply Ability :
3 sets/month
Double-Sided Cutting Length :
98-238mm
Speed with Cover :
Max 2800 times/h
Place of Origin :
China
Front Cutting Speed :
Max 3500 times/h
Front Cutting Thickness :
5mm
Delivery Time :
20 work days
Folding Thickness :
0.2-2.5mm
Front Cutting Length :
95-238mm
Description

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

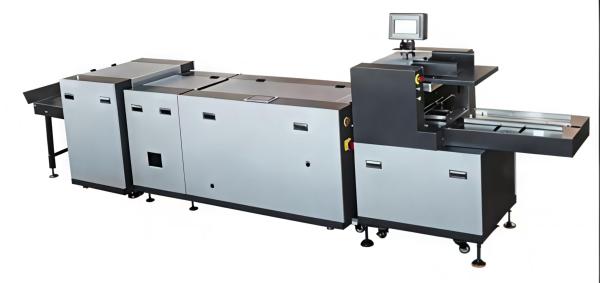

The HX480P Covering Stitching Trimming Machine seamlessly integrates cover feeding, saddle stitching, folding, flat pressing, and 3-side trimming into a single automatic production line. Built on a heavy-duty steel frame, it utilizes servo-driven synchronized feeding and smart automated adjustments for stitching heads and cutting sizes. Combining a dedicated flat press with high-precision front and double-sided trimming mechanisms, the HX480P operates at up to 2800 cycles/hour. It minimizes setup time while consistently delivering perfectly finished booklets tailored for modern digital print environments.




HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching

HX480P Covering Stitching Trimming Machine High Precision Saddle Stitching
