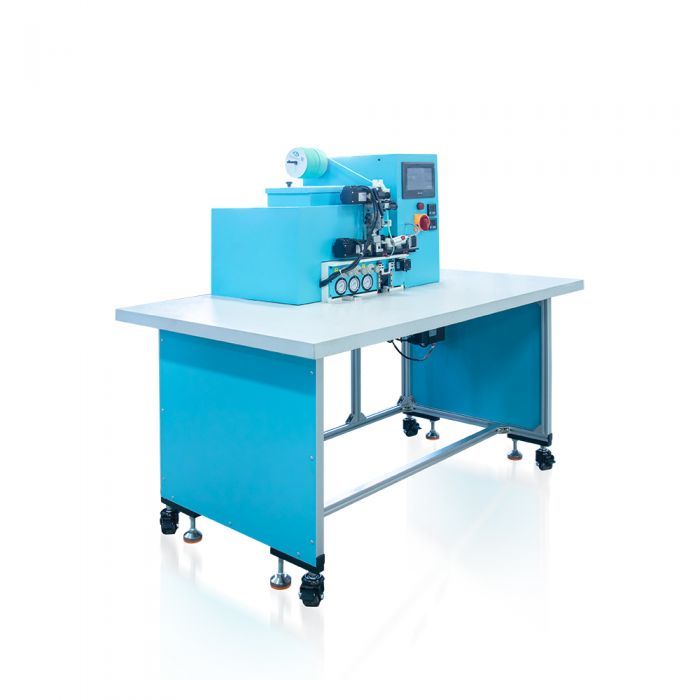

HX20EPL Semi-Auto Elastic Pen Loop Applying Machine for Notebooks
HX20EPL Semi-Auto Elastic Pen Loop Applying Machine for Notebooks
Specifications
Elastic Width Range :
6-30mm
Packaging Details :
Stretch Film with Wooden Case
Cover Length Range :
100-300mm
Capacity :
1000-1200pcs/h
Model Number :
HX20EPL
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Power :
2.5Kw
Delivery Time :
30 work days
Loop Diameter Range :
3-10mm
Brand Name :
HXCP
Case Thickness Range :
1-3.5mm
Voltage :
220V, 50/60Hz
Certification :
CE
MOQ :
1 set
Supply Ability :
10 sets/month
Place of Origin :
China
Dimensions :
1500×860×1100mm(L×W×H)
Description
HX20EPL Semi Auto Elastic Pen Loop Applying Machine

HX20EPL Semi-Auto Elastic Pen Loop Applying Machine for Notebooks

Description

HX20EPL Semi Auto Elastic Pen Loop Applying Machine is a specialized machine designed to apply one elastic pen loop onto notebook, agenda, or diary cases or onto already cased-in products by hot-melt glue. Manual positioning of the flat covers or notebooks already cased in on the feeder, cutting off the elastic band directly from the roll, automatic positioning of the elastic band and threading of the same in the cuts previously done, automatic hot-melt gluing and pressing of the elastic, then delivery of the final product back to the operator to maintain the safety of the operation.

Parameters

Cover Length Range 100-300mm Case Thickness Range 1-3.5mm
Elastic Width Range 6-30mm Loop Diameter Range 3-10mm
Capacity 1000-1200pcs/h Voltage 220V, 50/60Hz
Power 2.5Kw Dimensions 1500×860×1100mm(L×W×H)

Products Show

HX20EPL Semi-Auto Elastic Pen Loop Applying Machine for NotebooksHX20EPL Semi-Auto Elastic Pen Loop Applying Machine for NotebooksHX20EPL Semi-Auto Elastic Pen Loop Applying Machine for Notebooks

Details

HX20EPL Semi-Auto Elastic Pen Loop Applying Machine for NotebooksHX20EPL Semi-Auto Elastic Pen Loop Applying Machine for NotebooksHX20EPL Semi-Auto Elastic Pen Loop Applying Machine for NotebooksHX20EPL Semi-Auto Elastic Pen Loop Applying Machine for Notebooks
