HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing

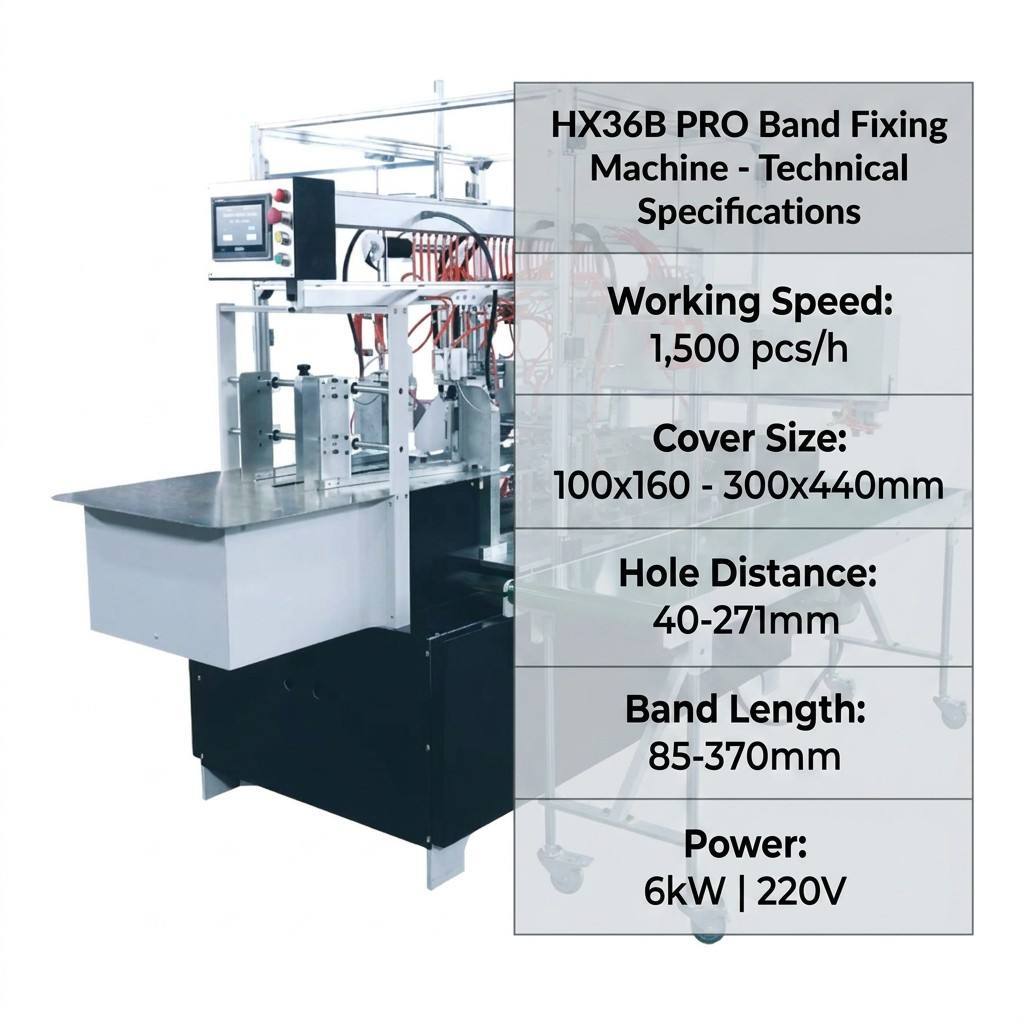

Specifications
Supply Ability :
10 sets/month
Min Cover Size :
100×160mm(W×L)
Model Number :
HX36B PRO
Elastic Band Length :
85-370mm
Distance between 2 Holes :
40-271mm
MOQ :
1 set
Delivery Time :
30 work days
Distance from Hole to Cover Edge Side :
10-60mm
Payment Terms :
L/C,D/A,D/P,T/T
Max Cover Size :
300×440mm(W×L)
Distance from Hole to Upper and Bottom Side :
0-30mm
Price :
USD 60000 per set
Working Speed :
1500pcs/h
Certification :
CE
Place of Origin :
China
Packaging Details :
Stretch Film with Wooden Case
Brand Name :
HXCP
Cover Thickness :
1.5-4mm
Description
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing

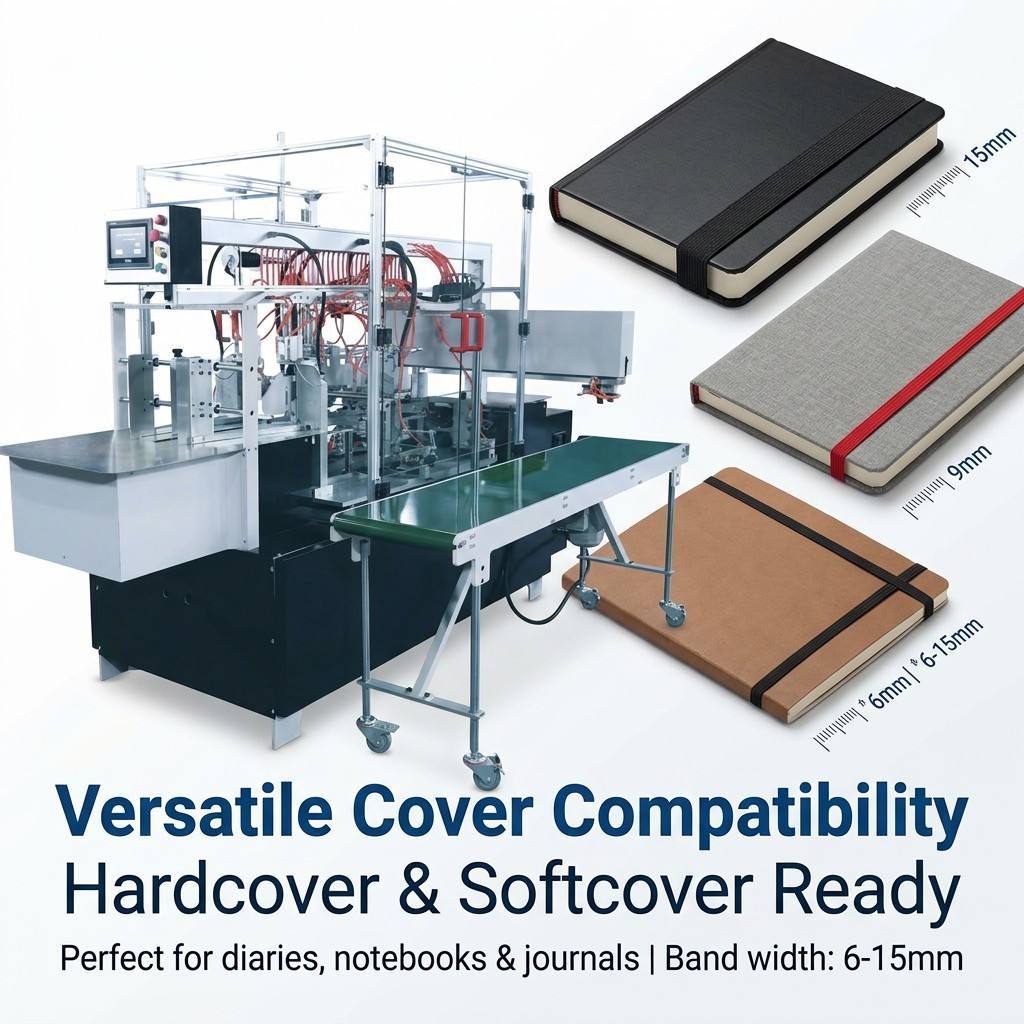

The HX36B PRO Automatic Diary/Notebook Elastic Band Fixing Machine is specialized automatic post-processing equipment used to install and secure elastic closing straps onto notebook and diary covers. It is compatible with both hardcover and softcover notebooks and diaries.
HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing HX36B PRO Automatic Diary Notebook Elastic Band Fixing Machine For Hardcover And Softcover Processing
The machine delivers high processing speed and consistent assembly quality for elastic band fixing procedures. Its rated working speed reaches 1500 pieces per hour, providing reliable automated solutions for stationery manufacturers producing elastic closure notebooks and diaries.
Application Scenarios
Ideal for:
  • Stationery factories: mass production of elastic band diaries, planners, journals and notebooks
  • Printing & binding workshops: post-finishing for hardcover and softcover elastic closure notebooks
  • Custom stationery manufacturers undertaking medium-volume notebook and diary orders
  • Notebook production lines focusing on standardized elastic strap mounting quality
  • Bindery workshops for commercial stationery finished product processing
Core Advantages
Developed specifically for installing elastic closing straps on notebooks and diaries, the HX36B PRO supports both hardcover and softcover products to satisfy diversified stationery production demands. The automated elastic band fixing process replaces manual operation, effectively improving assembly uniformity and avoiding inconsistent quality caused by human error. Maintaining stable high-quality processing effect, it runs at a speed of 1500 pieces per hour, steadily lifting overall production efficiency for notebook manufacturers.
