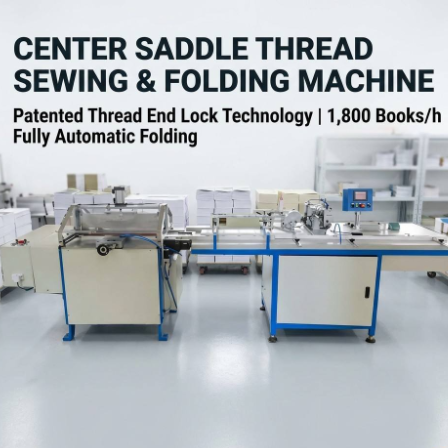

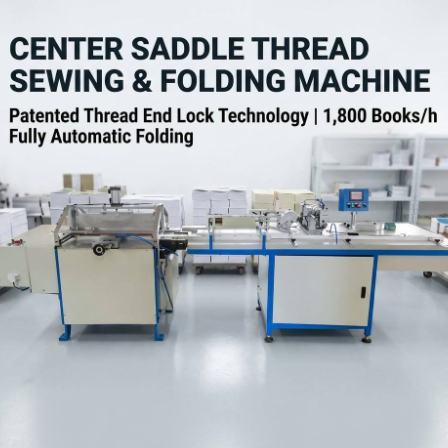

High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production

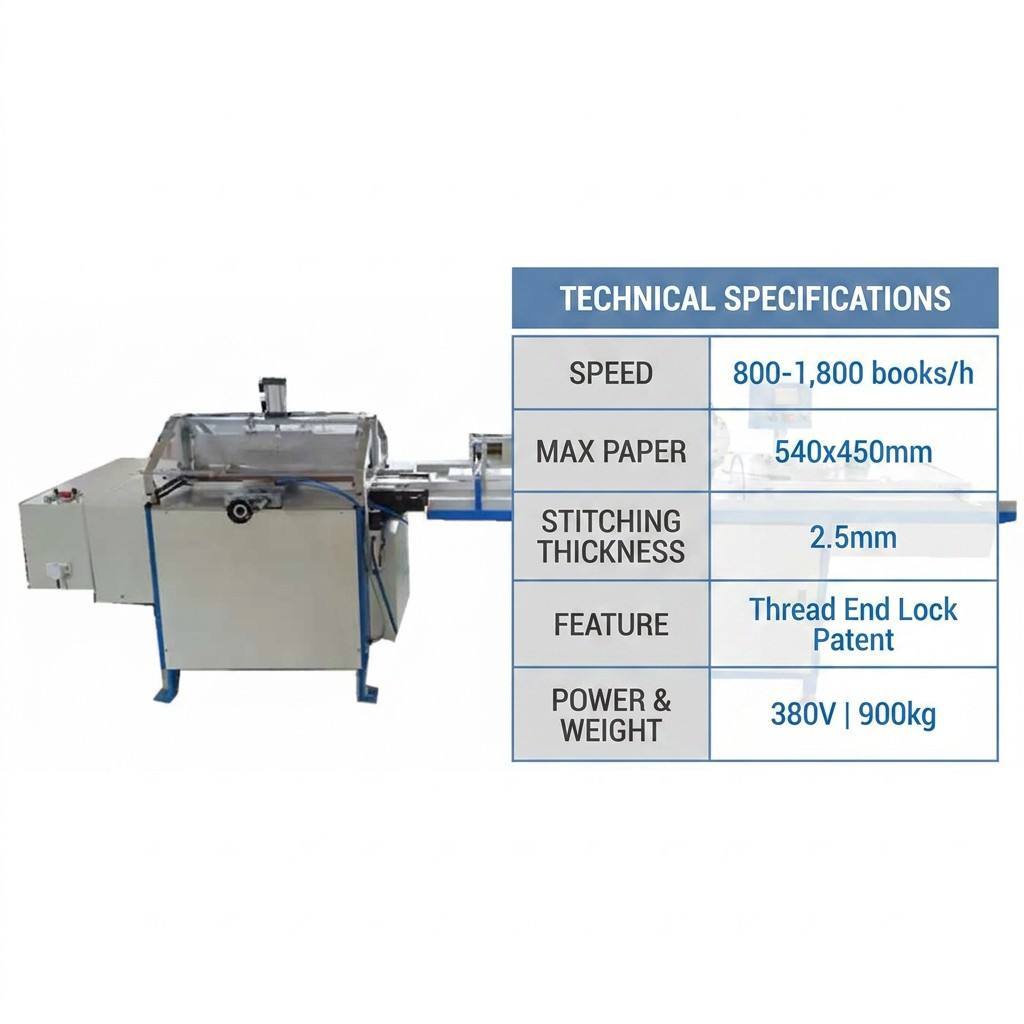

Specifications
Delivery Time :
30 work days
Max Paper Size :
540×450mm(L×W)
Certification :
CE
Machine Dimension :
2830×1500×1500mm
Supply Ability :
10 sets/month
Min Paper Size :
200×100mm(L×W)
Power :
380V/ 50-60Hz
Payment Terms :
L/C,D/A,D/P,T/T
Stitch Pitch :
Adjustable
Stitching Thickness :
2.5mm (folded 5mm)
Price :
USD 10800 per set
Packaging Details :
Stretch Film with Wooden Case
Net Weight :
900kg
Place of Origin :
China
MOQ :
1 set
Speed :
800-1800 books/hour
Brand Name :
HXCP
Description
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800-1800 Books Per Hour For Exercise Book Production. Center Saddle Thread Sewing Inward Folding Machine With Patented Thread End Lock Function.
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
High Speed Book Binding Machine Running 800–1800 Books Per Hour For Exercise Book Production
Product Overview

The Center Saddle Thread Sewing with Thread End Lock and Inward Folding Machine is specifically developed for central saddle thread sewing and inward folding processing of notebooks, exercise books, bank account books, passports, manuals, and hardcover book blocks. Workpieces are loaded manually, while the majority of subsequent procedures run automatically.

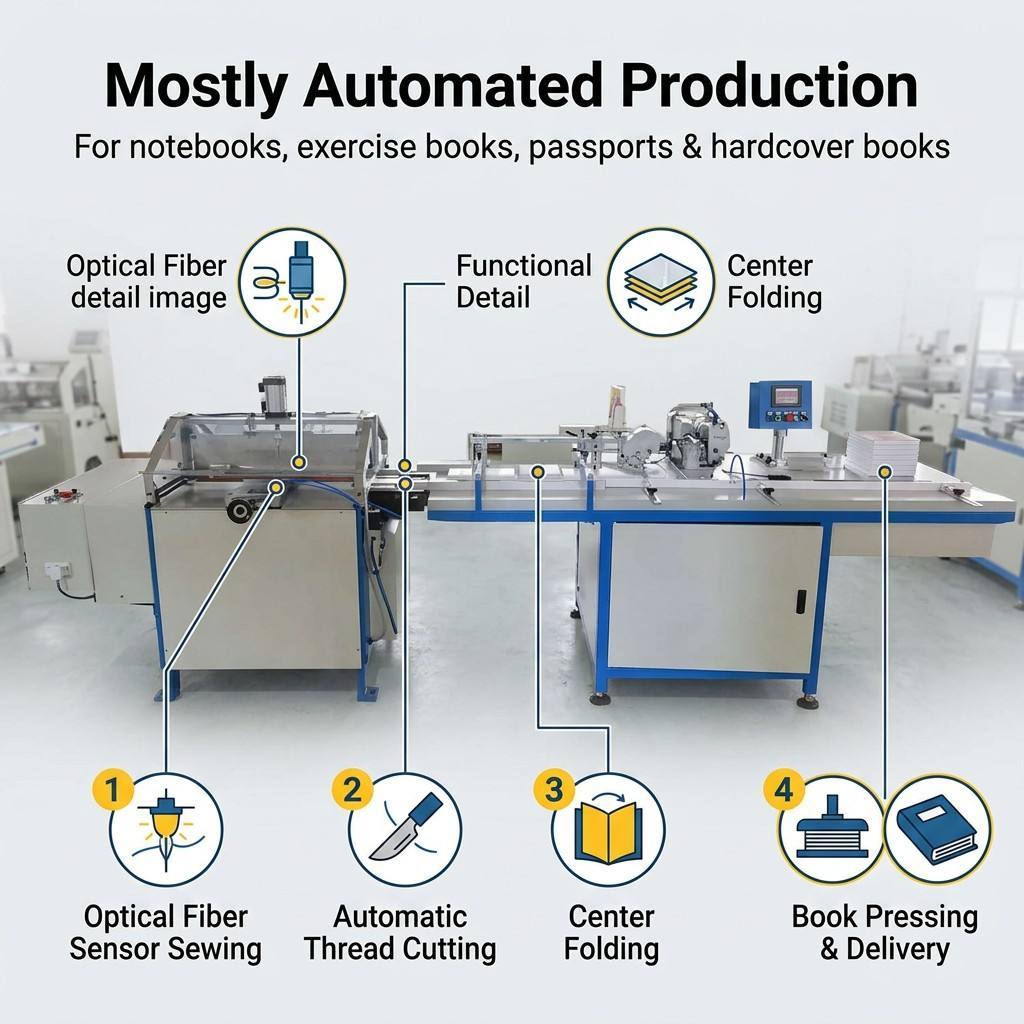

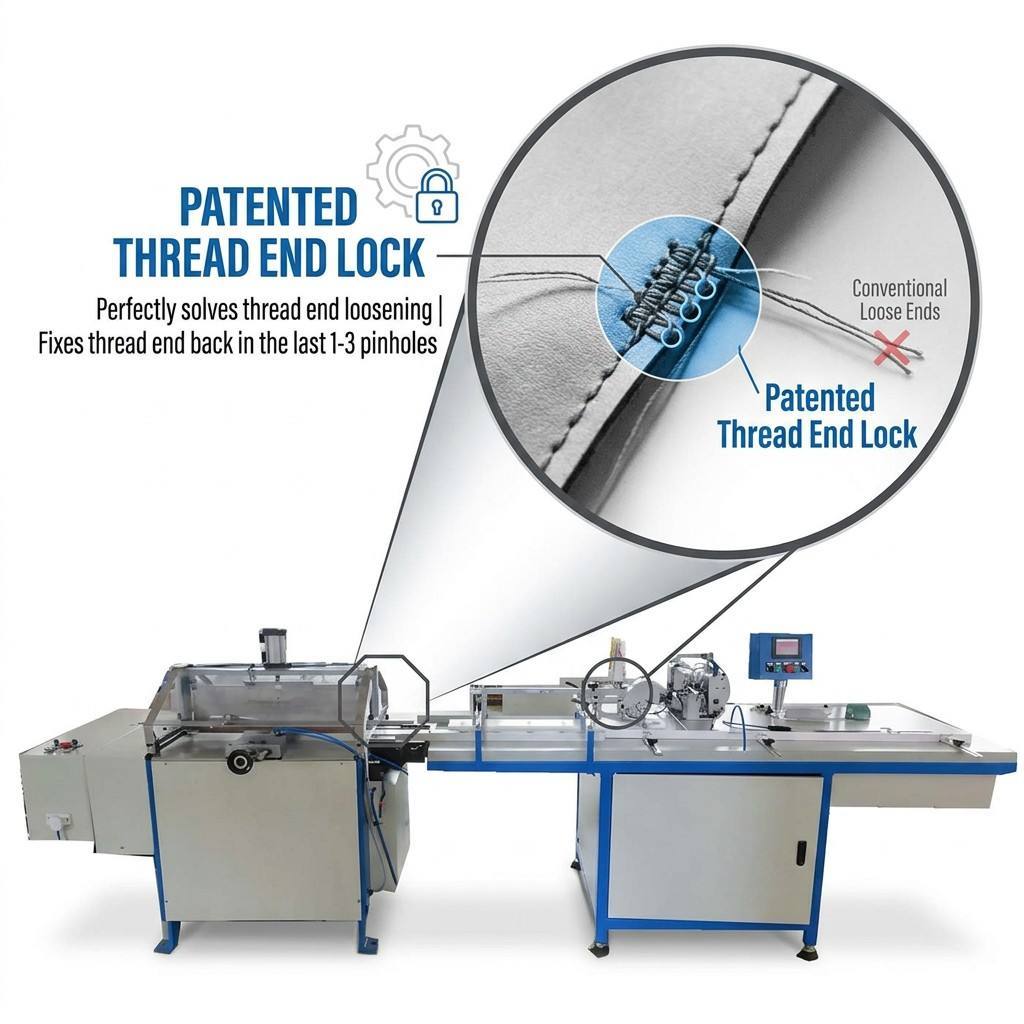

Processes include fiber optic sensor controlled central thread sewing, automatic thread trimming, central half folding, book pressing, and finished product delivery. Equipped with a unique patented Thread End Lock function during stitching, the machine effectively eliminates loose thread ends by firmly fastening thread ends inside the last 1-3 pinholes for stable stitching quality. The adjustable working speed ranges from 800 to 1800 books per hour.

Application Scenarios
  • Bookbinding factories: mass production of exercise books, notebooks, and bank account books
  • Printing post-press workshops: processing passports, manuals, and various hardcover book blocks
  • Manufacturers producing high-quality stitched books requiring stable, non-loosening stitching
  • Production lines adopting inward folding process for thread-sewn book blocks
  • Factories troubled by loose thread ends and seeking to improve finished book qualification rate
Core Advantages

Combining central thread sewing, inward folding and spine pressing into one unit, the machine streamlines the post-press workflow for stitched books. Fiber optic control system guarantees accurate sewing triggering. The unique thread locking mechanism avoids loose tails without extra manual trimming or rework. It is widely adopted for producing bank account books, notebooks and official certificates that demand high stitching reliability. Continuous automatic operation enhances overall throughput and unifies finishing quality standards.
