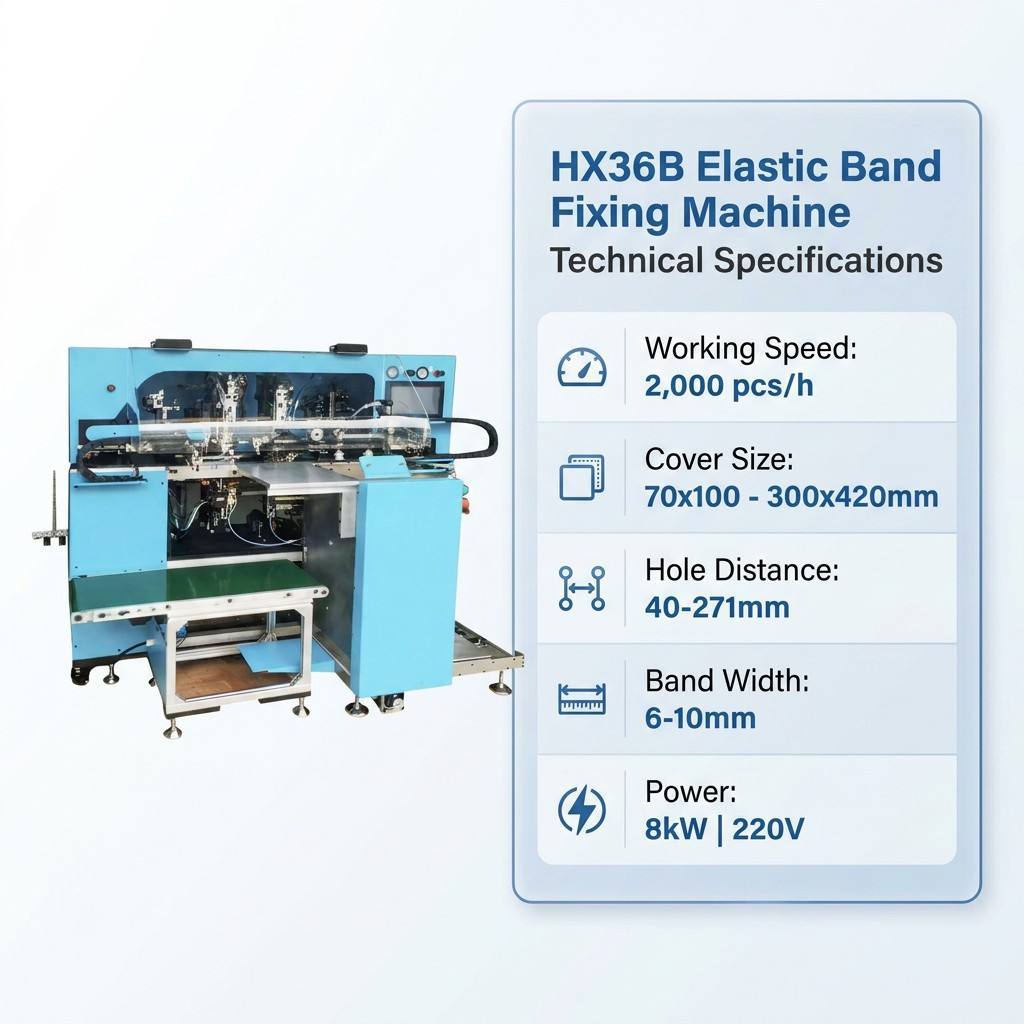

HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Elastic Band Length :
0-160mm
Model Number :
HX36B
Max Cover Size :
300×420mm(W×L)
MOQ :
1 set
Delivery Time :
30 work days
Distance from Hole to Upper and Bottom Side :
9-100mm
Price :
USD 50000 per set
Distance from Hole to Cover Edge Side :
0-40mm
Certification :
CE
Working Speed :
2000pcs/h
Place of Origin :
China
Distance between 2 Holes :
40-271mm
Supply Ability :
10 sets/month
Cover Thickness :
0.7-7mm
Brand Name :
HXCP
Min Cover Size :
70×100mm(W×L)
Packaging Details :
Stretch Film with Wooden Case
Description
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
The HX36B Automatic Notebook Elastic Band Fixing Machine is dedicated post-press equipment for automatically attaching and fixing elastic bands onto notebook covers. This advanced system integrates a complete production workflow including notebook feeding, punching, elastic band threading, cutting, gluing, fixing, and finished product stacking within a compact unit.
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
HX36B Notebook Processing Machine Supporting Hardcover Softcover And Pre-Cased Notebooks
Key Specifications
  • Production Capacity: 2000 pieces per hour
  • Program Memory: 10 sets of job parameters
  • Operation Modes: Fully automatic and semi-automatic
  • Compatible Products: Hardcover, softcover, and pre-cased notebooks
  • Drive System: Servo motor control
Application Scenarios
  • Stationery factories: Mass production of elastic band notebooks, planners, journals, and diaries
  • Printing & binding workshops: Post-processing of hardcover and softcover notebooks with elastic closures
  • Notebook manufacturers undertaking diversified orders with frequent specification changes
  • Production workshops requiring both mass automatic production and small-batch trial production
  • Custom stationery processing plants for sample testing and flexible batch manufacturing
Core Advantages

Targeted at the elastic band mounting process of notebook production, the equipment eliminates inconsistent quality and low efficiency caused by manual threading and gluing. The compact integrated layout effectively saves factory floor space. Advanced servo control minimizes mechanical failures and downtime. Operators can quickly call preset parameters to finish format adjustment. It supports three mainstream notebook types, and semi-automatic manual feeding mode provides flexible production solutions for trial orders and small batches.
