Specifications
Place of Origin :
China
Brand Name :
Golden Electric /OEM
Certification :
CCC, CE
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Supply Ability :
5000/Month
Model NO. :
GD-PV-CQ102
Contact Resistance :
≦5mΩ
Cable Cross Section :
1*4mm²
Insulation Material :
PPO
Temperature Range :
-40~ +85ºC
Transport Package :
Carton/Pallet
Specification :
Different sizes and specifications
Trademark :
Golden Electric or Customize
Origin :
China
HS Code :
8537209000
Type :
Solar Junction Box
IP Rating :
IP67
Power for PV Module :
285-350W
Rated Voltage :
1500V DC
Rated Current :
13A
Samples :
US$ 2/Piece 1 Piece(Min.Order) | Request Samp
Customization :
Available | Customized Request
Description

Product Description

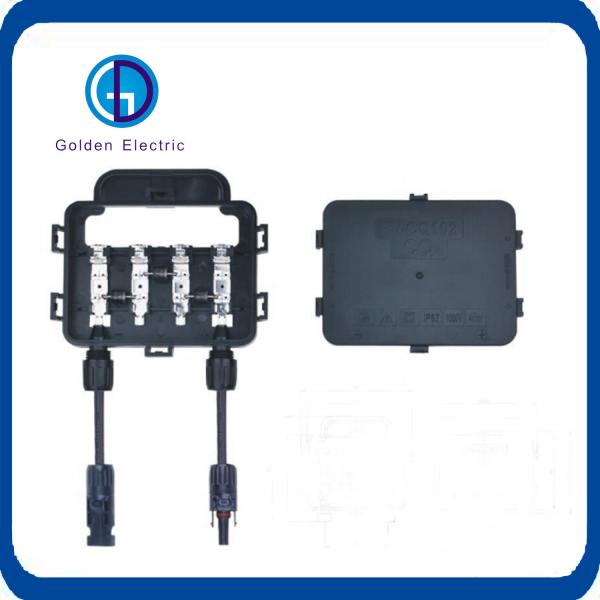

PV-CQ102 junction box got the TUV certificate, The maximum current of the junction box could be changed according the different diodes.
PV-102 can transmit the current generated by a photovoltaic module through a cable

2 Product Characteristic
b) It adopts the glue-filling sealing method, which is simple, convenient and safe to install
c) Good electrical performance.
d) Low contact resistance, extremely low power loss
e) The shell has excellent high and low temperature, anti-aging and anti-ultraviolet
performance, suitable for long-term outdoor use

Product Parameters

Power for PV module 285-350W
Rated Voltage 1500V DC
Rated current 13A
Contact resistance <=5mΩ
Cable cross section 1×4mm²
Insulation material ppo
Temperature range -40~ +85ºC

Drawings

High Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated Current

Cable Specification
High Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated Current

Production and Shipping

High Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated Current

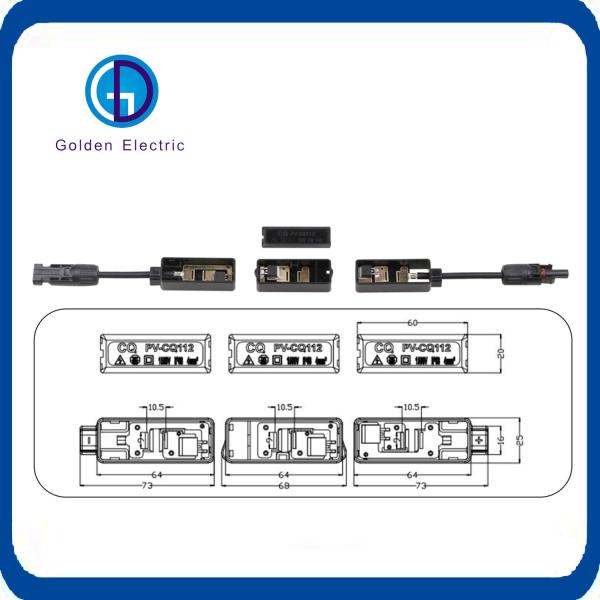

Other model we have:

High Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated CurrentHigh Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated CurrentHigh Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated CurrentHigh Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated CurrentHigh Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated CurrentHigh Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated CurrentHigh Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated CurrentHigh Temperature Resistance Solar PV Junction Box Dustproof PV-CQ102 With Rated Current

1) Are you a factory or trading company?
Yes we are factories.

2) What is your FOB port?
FOB Guangzhou, and we can according to customer requirements.

3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.

4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many
overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very
easy and effective to reach you. Also our 24 hours online inquiry service is available.

5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.

Any more query please contact with us, thank you!
