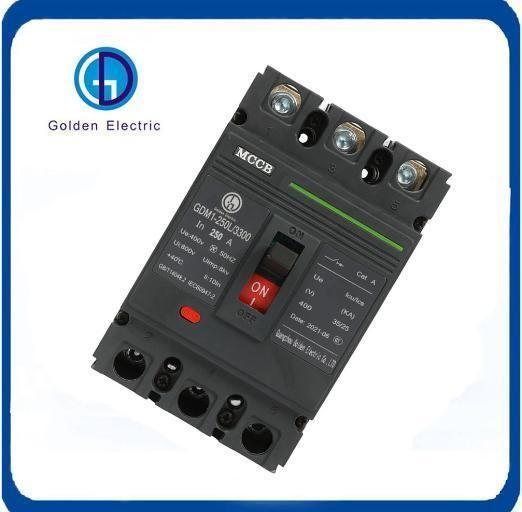

Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design
Specifications
Type :
Circuit Breaker
Function :
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Model No. :
Gdm1-250L
Product Name :
DC Series Moulded Case Circuit Breaker MCCB
Rated Impact Voltage Uimp(Kv) :
8kv
Rated Insulation Voltage(Ui) :
800V
Rated Ultimate Shortcircuit Sgementation :
35/25ka
Rated Working Voltage(Ue) :
400V
Ambient Temperature :
+40 Degree
Current (Optional) :
100A/125A/250A/400A/630A/800A
Transport Package :
Standard Export Carton
Specification :
1p/2p/3p/4p
Trademark :
Golden Electric or Customize
Origin :
China
HS Code :
8543709990
Supply Ability :
5000/Month
Breaking Capacity :
Low Voltage Circuit Breakers
Operation :
Electric Type
Speed :
Normal Type Circuit Breaker
Arc-extinguishing Medium :
Air
Installation :
Fixed
Structure :
MCCB
Samples :
US$ 1/Piece 1 Piece(Min.Order) | Request Samp
Customization :
Available | Customized Request
Place of Origin :
China
Brand Name :
Golden Electric /OEM
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Description

Product Description

GDM1 series moulded case circuit breaker(hereinafter called MCCB) is a new generation of breaker. This MCCB is suitable for the circuit of AC 50Hz/60Hz with rated insulation voltage 1000V (800V for frame size of 125) and rated service current between 63A and 630A. It is mainly used to distribute electric energy and protect circuits and electric equipment against over-load, under-voltage, short-circuit and earthing fault.
Standard: IEC/EN 60947-2.

Technological characteristics

Gdm1 DC Moulded Case Circuit Breaker Switch 3p/4p MCCB for Solar System Durable Design

Product Parameters

Model GDM1-63 GDM1-125 GDM1-250 GDM1-400 GDM1-630 GDM1-800
IEC60947-2 GB/T 14048.2
Shell grade current Inm(A) 63 125 250 400 630 800
Operating frequency(Hz) (Hz) 50 50 50 50 50 50
Breaking type L M L M L M L M L M L M
Number of poles 3P 3P,4P 2P,3P 2P,3P,4P 2P,3P 2P,3P,4P 3P 3P,4P 3P 3P,4P 3P,4P 3P
Rated current In(A) 10~63 16~125 100~250 225,250,315,350,400 400,500,630 630,700,800
Rated insulation voltage Ui(V) 500 800 800 800 800 690
Rated impulse withstand voltage Uimp(V) 8 8 8 8 8 8
Rated working voltage Ue(V) 400 230/400 230/400/690 230/400 230/400/630 400 400/690 400 400/690 400
Flashover distance (mm) ≯50 ≯50 ≯50 ≯100 ≯100 ≯100
Rated ultimate short-circuit sgementation capability Icu(kA) 400V 25 50 35 50 35 50 50 65 50 65 50 65
690V - - 20(3P) - 20(3P) - 20(3P) - 20(3P) -
Rated running short-circuit segementation capability Ics(kA) 400V 12.5 35 25 35 25 35 35 50 35 50 35 45
690V - - 10(3P) - 10(3P) - 15(3P) - 15(3P) -
Utilization category A A A A A A
Service life Mechanical life(times) Free maintenance 20000 20000 20000 10000 10000 10000
Maintenance 40000 40000 40000 20000 20000 20000
Mechanical life(times) 8000 8000 8000 7500 7500 7500
Outline dimension Width(W)(2P*/3P/4P) 78 78,103 65,92 65,92,122 75,107 75,107,142 150 150,198 181 181,239 210,280 210
Length(L) 135 150 165 258 270 280
Height(H) 89 96 86 104 106 124 150 155 158
Opitonal Accessories
Alarm contact 08 O O O O O O
Shunt release 10 O O O O O O
Auxiliary contacts 20 O O O O O O
Under-voltage tripper 30 O O O O O O
Two groups of auxiliarycontact 60 O O O O O O
Direct rotation handle RH O O O O O O
Extended rotation handle ERH O O O O O O
Hand-operated mechanism SC1 O O O O O O
Electrical operation mechanism MT O O O O O O
Mechanical interlocking MIF O O O O O O
Wiring in front of the plate O O O O O O
Plug-in back-panel wiring O O O O O O
Plug-in front-panel wiring - O O O O O
Draw-out type - - - O O O

Features:

1.high breaking capacity

2.beautiful appearance

3.light in weight

4.excellent and reliable function

5.In accordance with IEC60898, GB10963

6.Protection functions: overload, short circuit, unfrequent operation and isolation.
