Specifications
Model NO. :
FT series
Current :
10A/20A/30A/40A/50A/60A/80A/100A
Waterproof Level :
IP32
USB Output :
5V/2A Max
USB :
2 USB
Package :
50PCS/CTN
Package Carton Size :
540mm*320mm*200mm
Package Carton Weight :
14.6kg
Product Name :
Solar Charge Controller
Charging Mode :
PWM
Transport Package :
Standard Export Carton
Specification :
135mmx95mmx29mm
Trademark :
Golden or netural, or customer brand
Origin :
China
HS Code :
8504403090
Supply Ability :
5000/Month
After-sales Service :
Best After-Sales Service
Warranty :
12 Month
Condition :
New
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Application :
Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station
Rated Voltage :
12V/24V
Customization :
Available | Customized Request
Place of Origin :
China
Brand Name :
Golden Electric /OEM
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Description

Product Description


PWM Solar Charge Controller designed for off-grid solar power system and control the charging as well as discharging of the various batteries which including flood type, lead acid maintenance free type, GEL type as well as lithium batteries, main function for purpose protect batteries, the intelligent charging process has been optimized for long battery life and improved sysytem performance.


1. Adopt high quality components of ST, making sure products using lifespan.

2. Controller can work continously with full load within the environment temperature range from -15 degree to 50 degree.

3. Three stages intelligent charging mode (bulk, boost, float)

4. Support 4 charging options: Sealed, Gel, Flooded and User.

5. LCD display design, dynamatically displaying device' operating data and working condition.

6. Double USB design,the power supply change for electronic equipment.

7. With humanized button settings, operation will be more comfortable and convenient.

8. Muitiple load control modes.

9. Battery temperature compensation function.


Product Features

12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels

1. Reverse Polarity Protection
Function: The connection of positive and negative cable fault, then enter automatic protection status:blown fuse

2. Short Circuit Protection
Function: automatic protection status when short circuit: stop working

3. Overcharge Protection
Function: over current then enter automatic protection status: autoshop

4. Over Discharge Protection
Function: over discharge then enter automatic protection status: autoshop





Product Parameters

Model FT2024 FT4024 FT6024 FT8024
PV voltage ≤100v
Rated Charge current 10A 20A 30A 40A 50A 60A 80A 100A
Tated systten voltage 12V/24V/36V/48V Auto
Rated Discharge current 10A 20A 30A 40A 50A 60A N/A
Charge mode PWM Multi stage(bulk.absorption.float.equalized)
Float charge voltage 13.8v(13v-15v)x1/x2/x3/x4
Absorption voltage 14.4v(13v-15v)x1/x2/x3/x4,(lasting:2hrs)
Equalized voltage 14.6v(13v-15v)x1/x2/x3/x4,(lasting:2hrs)
HVD voltage 16.0v(13v-15v)x1/x2/x3/x4
HVR voltage 15.5v(13v-15v)x1/x2/x3/x4
LVD voltage 10.7v(10v-14v)x1/x2/x3/x4 N/A
LVR voltage 12.6v(10v-14v)x1/x2/x3/x4 N/A
Working mode for load light control,time &light control,normal model.self-timing switch on/off mode light control with switch on after and swith off before dawn
Light control voltage 5v(1v-10v)x1/x2/x3/x4
Charge circuit voltage
drop		 <0.21v
Discharge circuit voltage
drop		 <0.12v N/A
No load loss ≤14mA N/A
USB output 5v/1A N/A
Battery type GEL,SLD,FLE,Usr(default)
Installing cable size ≤6mm2 ≤16mm2 ≤25mm2
Working temperature "-20ºC-55ºC
Dimension(mm) 188x95x46.5 196x111x54 188x125x46.5 188x95x56 188x95x46.5 196x111x54 188x125x48.5 188x95x56
Weight 355g 360g 395g 562g 701g 360g 395g 564g 703g

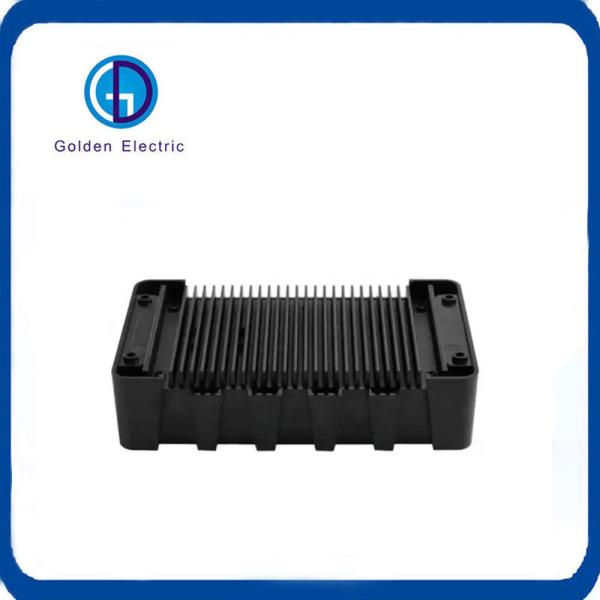

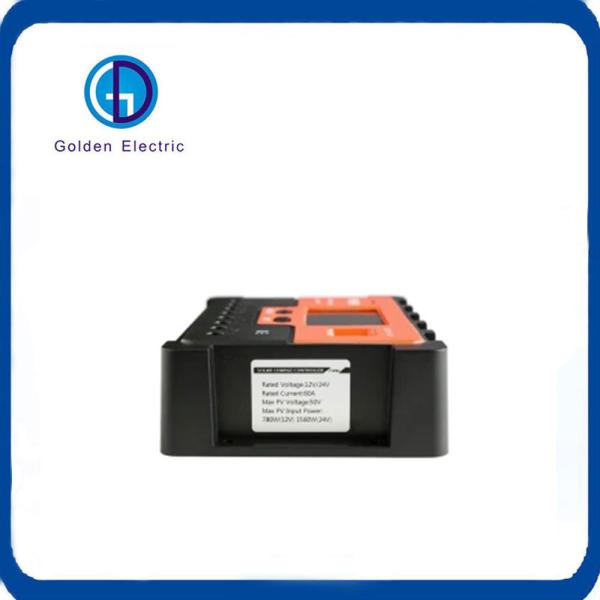

Detailed Photos

12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels


12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels



Packing

12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels
12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels
12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels


Recommand Product

12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels
12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels
12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels
12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels
12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels
12V/24V/48V 10A 20A 30A 40A 50A 60A 80A 100A Solar Charge Controller for Solar Panels







Company Profile

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Wind Turbine, Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.



FAQ

1)Q:How can i trust your company?
 A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the Solar Charge Controller guarantee?
A: 1 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for Solar charge controller. Normally less than 100PCS with stock, quick support.
7) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8) Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
