Specifications
Place of Origin :
China
Brand Name :
Golden Electric /OEM
Certification :
ISO9001-2000, CE, CCC
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Supply Ability :
20000PCS/Month
Rated Voltage :
230VAC
Rated Current :
63A
Frequency :
50/60 Hz
Display :
LED Display
Efficiency :
High Efficiency
Product Name :
Over/Under Voltage Protector
Transport Package :
Standard Export Carton
Specification :
3P
Trademark :
Golden or netural, or customer brand
Origin :
China
HS Code :
8536300000
Operation :
Electric Type
Installation :
Fixed
Poles Number :
3
Function :
OVP(Overvoltage Protection)
Phase :
Single Phase
Customization :
Available | Customized Request
Description

Product Description

Single phase voltage/current protector integrates over-voltage protection, under-voltage protection, over-current protection and integrated intelligent protector. When there is over-voltage, under-voltage and over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding unnecessary damage to electrical equipment. When the circuit returns to normal, the protector can automatically restore the circuit to make the electrical equipment work normally. The overvoltage value, undervoltage value, overcurrent value, circuit recovery time value and overcurrent protection reset time value of this product can be set by themselves. Adjust the corresponding parameters according to local actual conditions and electrical usage conditions.


LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V

1.Over-voltage protection

2.Under-voltage protection

3.Adjustable action and recovery delay time

4.Automatic recovery

5.Voltmeter





Product Parameters

Function Technical Parameter Function Technical Parameter
Input voltage AC 90-270V Power-on delay time

1-500s

default 10s

Over-voltage protection value

230-270V

default 250V

Over-voltage recovery value 220-265V
default 240V
Under-voltage protection value

90-210V

default 185V

Under-voltage recovery value

95-215V

default 190V

Recovery delay time

1-500s

default 10s

Action time

0.1-30s

default 0.5s

Rated current 63A Voltage calibration

-9.5%-9.5%

default 0

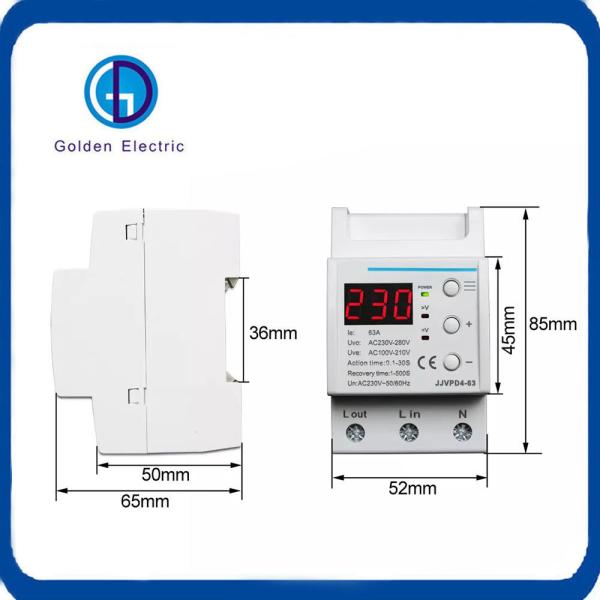

Power consumption Less than 2W Boundary dimendion

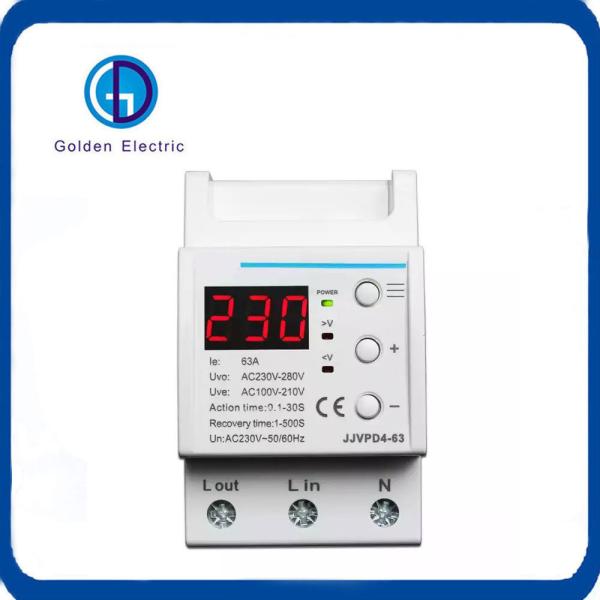

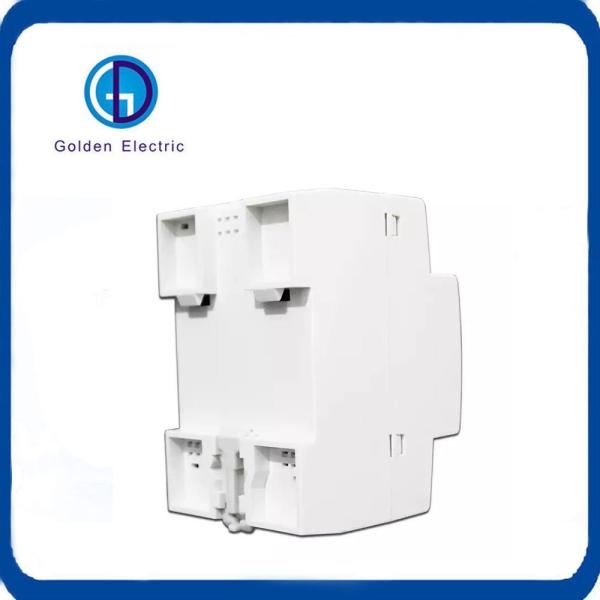

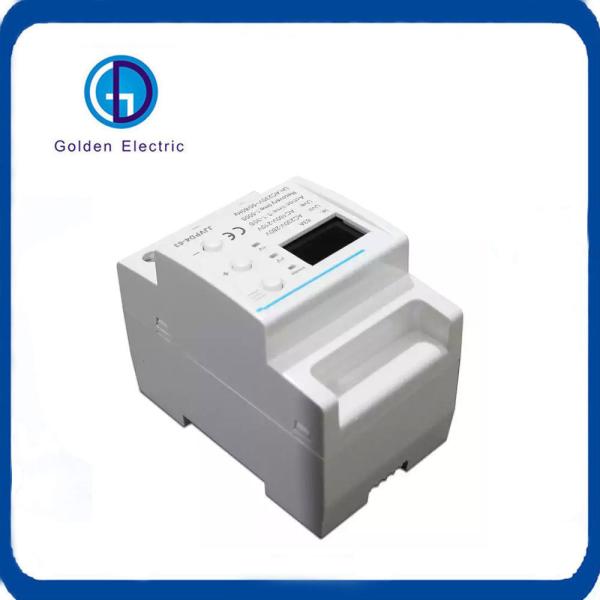

Product Details

LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230VLED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230VLED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V















Recommand Product

LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V
LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V
LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V
LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V
LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V
LED Display Digital Voltage Protector For Overload Protection Relay 3p 63A 230V




Company Profile

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Terminal Block,Solar product, Voltage & Current Protector and so on.


- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.
