120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
Specifications
Place of Origin :
China
Brand Name :
Golden Electric /OEM
Certification :
CCC, ISO9001, RoHS, CE, SAA
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Supply Ability :
50000PCS/Years
Model NO. :
RP1K
Nature of Wave String :
Sine Wave Inverter
Type :
DC/AC Inverters
Battery Voltage :
12/24/48VDC
Gross Weight :
11.4-15kg
Model :
RP Series 1kw /2kw
Product Specification :
off-Grid Solar System
AC Input Voltage :
110VAC/120VAC/220VAC /230VAC
Inverter Type :
Transformer Based ,Low Frequency Inverter
Name :
Solar Power Inverter
Brand :
Golden/OEM
Protection :
Overload,Over Voltage,Short Curcuit for Inverter
Frequency :
50/60Hz Auto Sensing
Application :
Solar Power System
Dimension :
390mm*222mm*178mm
Transport Package :
Standard Packing Carton
Specification :
1kW/2kW
Trademark :
Golden or netural, or customer brand
Origin :
China
HS Code :
8504403090
Nature of Source Flow :
Active Inverter
Output Power :
>1000W
Grid Type :
off-Grid Inverter
Output Type :
Single
Circuit Topologies :
Full-Bridge Type
Customization :
Available | Customized Request
Description

Product Description

RP series is a pure sine wave power frequency inverter that converts direct current into alternating current. All-digital intelligent design, output pure sine wave, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic audio and video.

Product Features

120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
1.Pure Sine Wave Inverter
2.The output power factor is 1
3.Optional high power charging current
4.Selectable Input Voltage Range
5.Configurable AC/Battery input priority via LCD settings
6.Automatic restart when AC restores
7.Overload and short circuit protection
8.Smart battery charger design to optimize battery performance
9.Cold start function
10.Fully industrial-grade design, adaptable to a wider working environment
11.Smart LCD Display
12.Fast dynamic response
13.Intelligent fan, efficient heat dissipation, prolong system life
14.With multiple protection functions, 360° all-round protection
15.Supports the use of lithium batteries

Protections:

Reverse polarity protection, impact protection, over temperature protection, low voltage protection, overload protection, short circuit protection, over current protection, high voltage protection.


Product Parameters

MODEL

RP 1000

RP 2000

Rated Power

1000VA/1000W

2000VA/2000W

INPUT

Voltage

100/110/120VAC;220/230/240VAC

Selectable Voltage Range

Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances)
Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer)

Frequency

40-70Hz (50Hz/60Hz)

OUTPUT

AC Voltage Regulation (Batt Mode)

100/110/120VAC (±5V);220/230/240VAC (±10V)

Surge Power

2000VA

4000VA

Efficiency (Peak)

88%

Transfer Time

<20ms

Wave form

Pure sine wave

BATTERY

Battery Voltage

12V

24V

Charge Current

75A

35A

Fast Charge Voltage

14.3VDC

28.6VDC

Float Charge Voltage

13.7VDC

27.4VDC

Battery Low Voltage Alarm

16.5VDC

33.0VDC

Over Voltage Protect

10.5VDC

21.0VDC

Battery Low Voltage Shutdown

10.0VDC

20.0VDC

Protection

over charging,over temp,over battery voltage,over load,short-circuit

Operating Environment Temperature

55ºC

Cooling

Intelligent Fan

Display

LCD

Specification Setting

By LCD or position machine:Charging current,battery type,input voltage,output frequency,wide and narrow of AC input voltage,power-saver model,AC priority or battery priority

PHYSICAL

Dimension,(D*W*H)mm

390*222*178

Net Weight (kg)

11.4

15

ENVIROMENT

Humidity

5~95% Relative humidity (No-condensing)

Operating Temperature

-10ºC~50ºC

Storage Temperature

-10ºC~60ºC

Product Details

LCD Display

120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
Overview
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency

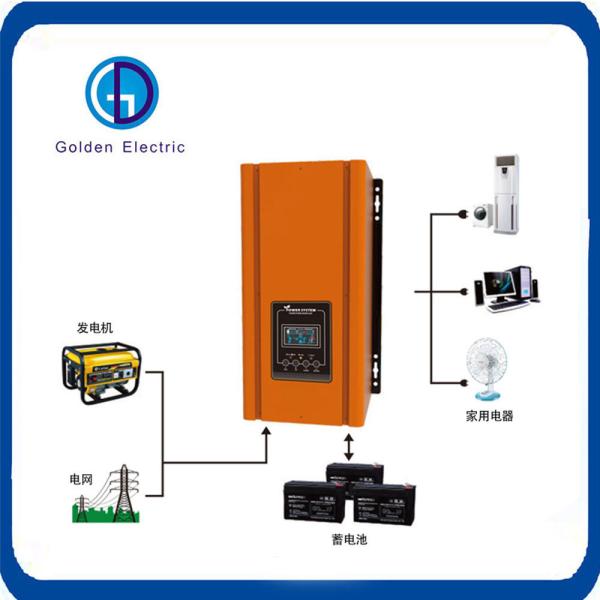

Connection

120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency



Recommand Product

120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency
120VAC Electrical 2000w Pure Sine Wave Inverter Energy Efficiency With Low Frequency

Company Profile

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,Solar Inverter, MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Wind Turbine, Solar product and so on.


- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.



FAQ

1)Q:How can i trust your company?
 A:Golden electric is The top 10 manufacturer in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's about MOQ? Delivery time ?
A: 1pcs for inverter. Normally less than 100PCS with stock, quick support.
6) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
7) Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
