Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Specifications
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Place of Origin :
China
Brand Name :
Golden Electric /OEM
Type :
Ball Type
OEM :
Yes
Categories :
Lightning Rod
Manufacturer :
Yes
Supplier by Country :
China
Transport Package :
Oceanfreight Cartons+Wooden Cases+Pallet+Container
Specification :
Different sizes and specifications
Trademark :
Golden Electric or Customize
Origin :
China
HS Code :
8535400000
Supply Ability :
5000/Month
Structure :
Tube Type Arrester
Installation :
Parallel Arrester
Application :
Lightning System, Lightning System
Size :
Custom Made, Custom Made
Shape :
Cross Line
Material :
Copper Coated Steel or Stainless Steel, Copper Coated Steel or Stainless Steel
Customization :
Available | Customized Request
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Description
Product Description

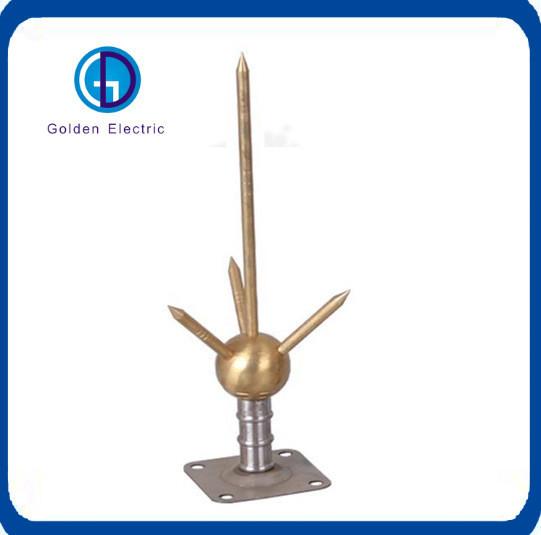

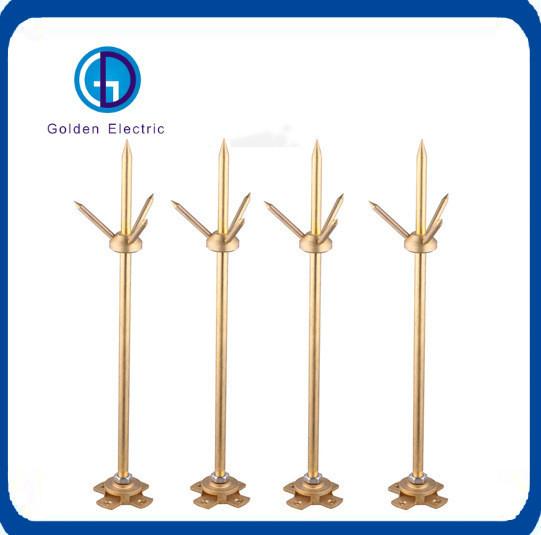

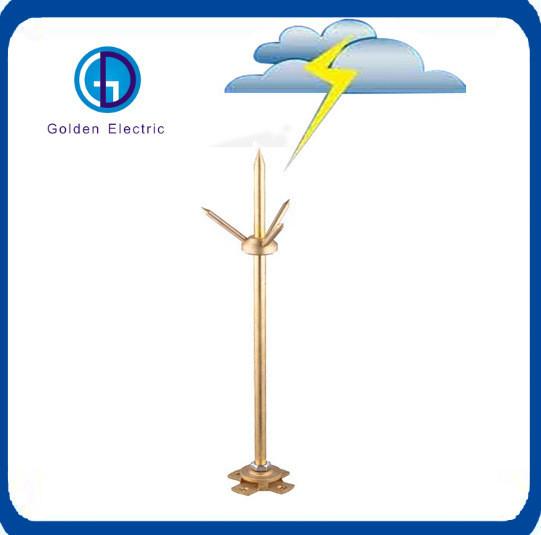

Professional Lightning Protection System

Material
Copper or Brass or Copper Clad Steel or Stainless Steel
Service life
More than 50 Years
Characters
Characters
Available service mode
OEM,ODM
Certificate
ISO9001:2015

Negotiable Price According to different material/size and and Purchase quantity
Description
Common Size(We accept customization)
Ball
Dia58mm
Base
100mmx100mmx3mm
Total Height
380mm
Rod Length
Rod diameter
Thread
Material
500mm
16mm
M16
Brass,copper
1000mm
16mm
M16
Brass,copper
1500mm
16mm
M16
Brass,copperl
Avaible Dia:8mm-25mm; Length:300mm-2000mm
Base
Conductor size
Rod diamter
Material
1
50-95mm²wire
16mm
Brass
2
25mmx3mm copper tape
16mm
Brass
Three Point Needle
Nos
Rod
Material
1
3
16mm
Brass,copper

Professional Lightning Protection System with Different Sizes and Specifications

Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications

Professional Lightning Protection System with Different Sizes and Specifications

Professional Lightning Protection System with Different Sizes and Specifications

Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications

Lightning arrester is used for lightning system of power plant ,transformer station ,tower ,communication station ,airport,railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.
Installation
(A)The installation of lightning rod
Matters need attention during installation:
(1)The lightning rod and other metal part on the building should connected together;
(2)No low voltage cable or communication cable installed on the rod
(B)Installation of earthing tape and earthing grid
1. Installation of exposed earthing tape (grid) :Installed at the ridge ,eave(abat-vent) or edge of roof
(1)Installation at the concrete base of roof :The base can be made with the roof together ,and fixed to the roof.
(2) Installation on the parapet wall or gutter bracket
Installed along parapet wall and fixed with bracket ,and the bracket should be installed earlier .The working height of bracket
should be less than 150mm . The bracket for direct line should be first and then for the middle .The bracket should be 0.25-0.5m
away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and
even distribution
(3) Installation at ridge ,eave or edge of roof
Use concrete base or bracke
If make the base on site , please remove the corner of ridge tile first ,and make the bracket and ridge tile together;
The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and
vertical interval is 1.5-2m and even distribution.
Packing & Delivery

Packaging Details Lightning Protection System packing: cartons+wooden cases+pallet+container

Lead time:

Quantity(pieces) 1 - 50 51 - 1000 >1000
Lead time (days) 10 30 To be negotiated

Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications
Gty Type Naked Tube Butt Electric Crimp Copper Butt Surface Mounted Waterproof Industrial Connectors and Terminal
Professional Lightning Protection System with Different Sizes and Specifications
Professional Lightning Protection System with Different Sizes and Specifications

Terminal Bolck Steel Mounting DIN Rails Surface Mounted Franch Type 2gang Switch 1gan Socke Switch Socke Waterproof

FAQ

1.Are you a trading company or manufacturer?
Manufacturer with factory!

2.What kinds of Grounding Material do you produce?
It covers grounding rod ,lightning rod ,connecting fixing ,conductor, exothermic welding kit, etc.

3.Is Customized Material available?
Yes, please offer your required specs.

4.Do you Accept OEM service?
YES!

5.What's your Delivery Time?
Normally 20-25days,please confirm with us before order!

6.What's the Payment Trems?
Usually,50% as deposit,50% before sending B/L by T/T.

7.How you pack products?
Normally, in steel pallet. We'll do according to customers' requirement.
