Specifications
Model NO. :
E-12 SERIES
Clamping Insert :
Nylon PA
Working Temperature :
-40~100
Advantages :
Fast Delivery
Size :
M10-M100
Model Number :
M10-M100
Key Words :
Brass Cable Gland
Function :
Cable Protection
Hot Searching :
Atex Cable Gland
Samples :
US$ 5/Piece 1 Piece(Min.Order) | Request Samp
Feature :
Seal Part Hold Cable Firmly
MOQ :
100PCS
Work Temperature :
40~+100
Cable Gland :
Waterproof
Thread Length :
Standard & Customization
Other Size :
Customization
Transport Package :
Standard Export Carton
Specification :
Metric / PG / G / NPT
Trademark :
Golden Electric
Origin :
China
HS Code :
33039649
Supply Ability :
5000/Month
Certification :
ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Surface Treatment :
Electroplating
Color :
Metallic Color
IP Rating :
IP68
Material :
Brass Nickel Plated
Type :
Straight Head
Customization :
Available | Customized Request
Place of Origin :
China
Brand Name :
Golden Electric /OEM
MOQ :
1
Packaging Details :
Carton/Pallet
Delivery Time :
Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal, Western Union
Description
What is the Special of Waterproof Cale Gland?

1.WIRE PROTECTION
Provides strain relief to cables and wires passing through plates or connecting to electrical equipment.
2.EASY INSTALLATION
Simply pass your cable through the gland and tighten the cap.
3.PROFESSIONAL LOOK

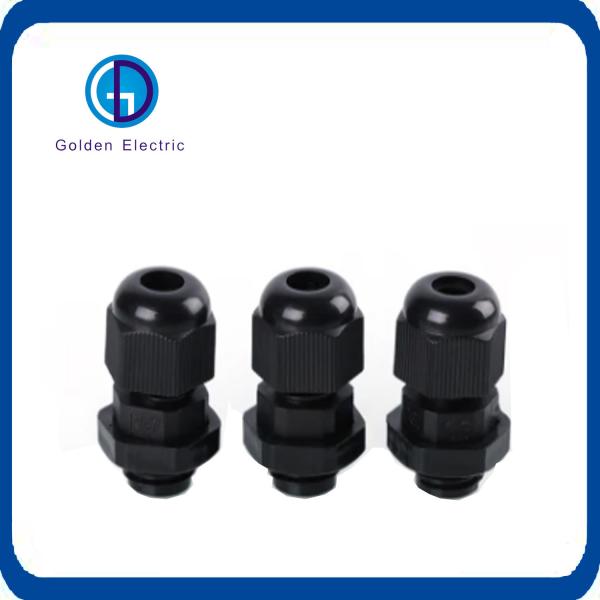

Black nylon cable glands are used by professionals everywhere.
4.VERSATILE
Used on all types of electrical, industrial, and automotive equipment and machinery
5.WATERPROOF
IP68 rating allows for underwater use. Resistant to salt water, weak acid, alcohol, oil, grease and common solvents.
Customized IP68 Waterproof Nylon Cable Gland with Metallic Color and CE Metric Thread

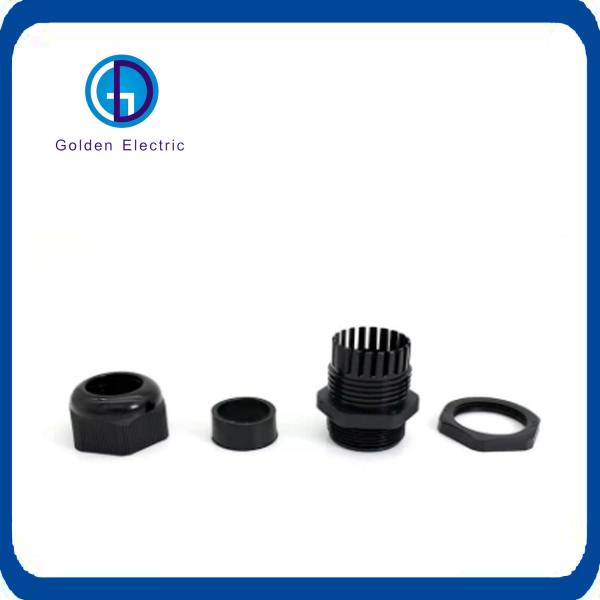

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).


Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR


Working temperature: -40ºCto 100ºCin static state, or instantaneous heat resistance up to 120ºC; -20ºCto 80ºCin dynamic state, or instantaneous heat resistance up to 100ºC.

Characteristics:The claws and seals of excellent design,sealing nut hace a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

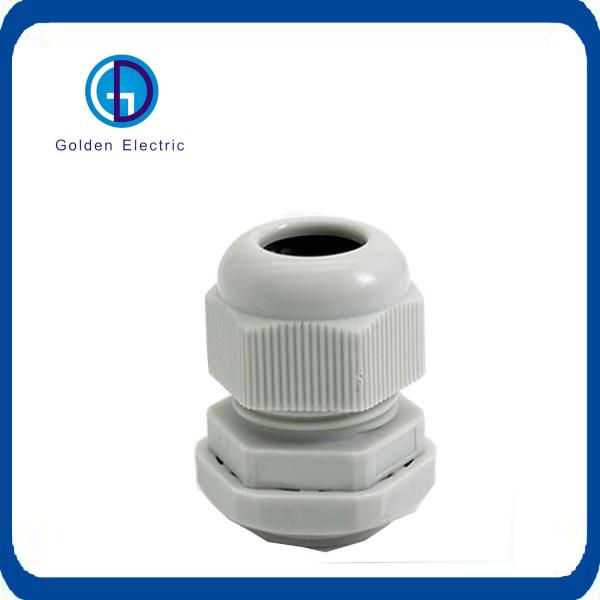

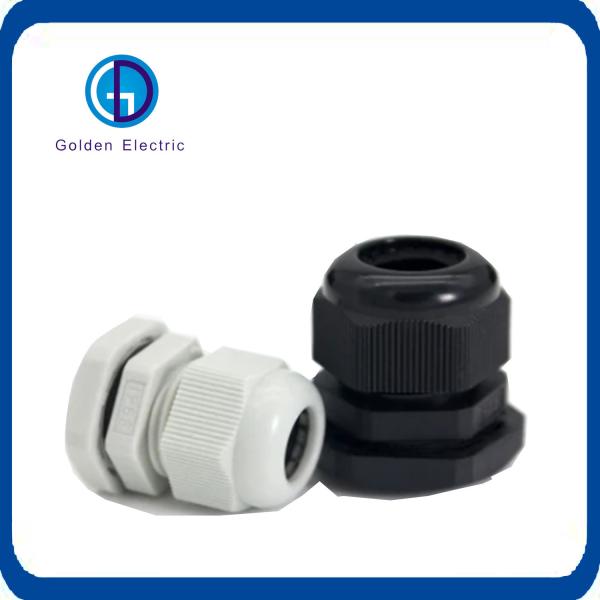

Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

Customized IP68 Waterproof Nylon Cable Gland with Metallic Color and CE Metric Thread
Customized IP68 Waterproof Nylon Cable Gland with Metallic Color and CE Metric Thread

Function:
1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.

2.Use to positively bond the conduit to a box or enclosure.

Product parameters:

United Structure Nylon Cable Gland-- Metric thread
Product Code Thread AG Cable range(mm) Thread O.D. C1(mm) Thread length GL(mm) Spanner Size (mm)
JX-NLM8-UN M8*1.25 2-4.8 8 7.5 43447
JX-NLM10-UN M10*1.5 3-6 10 8 15/13
JX-NLM12A-UN M12*1.5 3-6.5 12 8.5 18/15
JX-NLM12B-UN 3-6.5 12 15 18/15
JX-NLM12C-UN 3-5.5 12 8.5 18/19
JX-NLM12D-UN 4-8 12 8.5 18/19
JX-NLM12E-UN 3-5.5 12 15 18/19
JX-NLM12F-UN 4-8 12 15 18/19
JX-NLM16A-UN M16*1.5 4-8 16 10 22/19
JX-NLM16B-UN 4-8 16 15 22/19
JX-NLM16C-UN 3-7 16 10 22/22
JX-NLM16D-UN 5-10 16 10 22/22
JX-NLM16E-UN 3-7 16 15 22/22
JX-NLM16F-UN 5-10 16 15 22/22
JX-NLM18A-UN M18*1.5 3-7 18 10 24/22
JX-NLM18B-UN 5-10 18 10 24/22
JX-NLM18C-UN 3-7 18 15 24/22
JX-NLM18D-UN 5-10 18 15 24/22
JX-NLM20A-UN M20*1.5 6-12.5 20 10 27/24
JX-NLM20B-UN 5-11 20 11 27/27
JX-NLM20C-UN 8.5-14 20 11 27/27
JX-NLM20D-UN 5-11 20 15 27/27
JX-NLM20E-UN 8.5-14 20 15 27/27
JX-NLM22A-UN M22*1.5 5-11 22 11 27/27
JX-NLM22B-UN 8.5-14 22 11 27/27
JX-NLM24A-UN M24*1.5 5-11 24 11 27/27
JX-NLM24B-UN 8.5-14 24 11 27/27
JX-NLM25A-UN M25*1.5 8.5-14 25 11.6 33/27
JX-NLM25B-UN 7-13 25 11.6 33/33
JX-NLM25C-UN 12.5-18 25 11.6 33/33
JX-NLM25D-UN 7-13 25 15 33/33
JX-NLM25E-UN 12.5-18 25 15 33/33
JX-NLM32A-UN M32*1.5 11-17.5 32 15 36/42
JX-NLM32B-UN 14-22 32 15 41/42
JX-NLM32C-UN 17-25 32 15 41/42
JX-NLM36A-UN M36*1.5 14-22 36 12 45/42
JX-NLM36B-UN 17-25 36 12 45/42
JX-NLM40A-UN M40*1.5 18-25 40 15 50/52
JX-NLM40B-UN 23-32 40 15 50/52
JX-NLM50A-UN M50*1.5 25-32 50 15 62/62
JX-NLM50B-UN 30-41 50 15 62/62
JX-NLM63A-UN M63*1.5 29-38 63 18 75/65
JX-NLM63B-UN 35-46 63 18 75/65
Customization is acceptable.Welcome to inquire.
The Drawing of Nylon Cable Gland:
Customized IP68 Waterproof Nylon Cable Gland with Metallic Color and CE Metric Thread
Field of Application

Cable glands are mechanical cable entry devices. They are used throughout a number of industries in conjunction with cable and wiring used in elelctrical instrumentation and automation systems.

Cable gland may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the charachteristcs of the enclosure which the cable enters can be maintained adequately.
