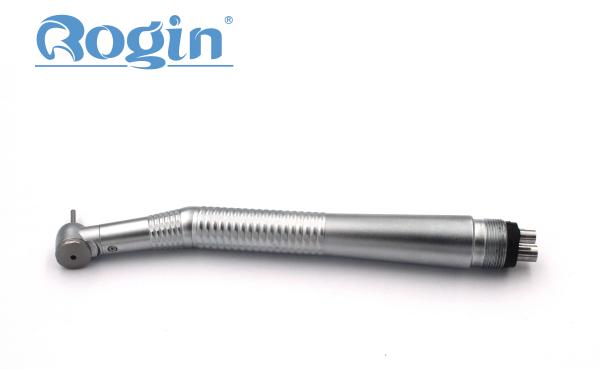

Mini Head Key Type Handpieces High Speed Dental Handpieces with Single Spray

Quick Detail :

1. Mini ,Standard or Torque Head

2. Cartridge for Handpiece

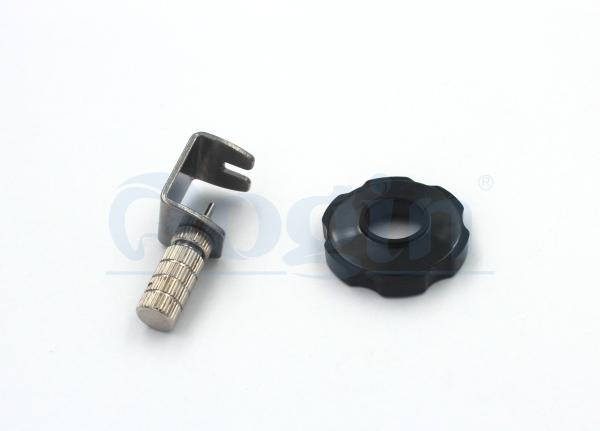

3. Key Type / Wrench Type ( 4 or 2 holes )

4. Turn Smooth, Low Noise

5. Use Best Bearing, Long Durability

6. Air pressure: 0.2 - 0.24 Mpa

7. Rotation Speed : >=360krpm ( Standard )

>=300krpm ( Torque Head )

8. Chuck Type : Push Button or Wrench

9. Bur applicable : φ 1.59 mm ~ φ 1.6 mm * 21 mm ~ 23 mm (diameter * length)

10. Noise : <=60db

Specifications :

Description :

1. The need to use a clean , dry , oil-free air compressors for medical use

2. The air pressure between 2.3-2.8kgf / cm2

3. Place the adapter with quick connector at the bottom of a combination of dental handpieces , and confirm that the card lock fixed

4. Press the pedal , handpiece operation and examine whether the normal operation of the spray head . If everything is normal, you can start using the handpiece .

Handpiece routine maintenance:

Fault: the occurrence of undesirable phenomena water

( 1 ) inadequate water supply .

( 2 ) the amount of water is not uniform.

( 3 ) is not a mist of water .

( 4 ) no water completely .

Solution: Check the water blocked the site

( 1 ) pipeline : the turbines removed to check for the amount of water flowing from the pipeline . If there is no water out, it may be pipes or water treatment units system problems ( bad or wrong operation , there is not enough water pressure ) .

( 2 ) interface : the interface conductors commissioning . Without the right amount of water flowing out , it indicates a problem at the interface ( such as clogged scale water supply systems or interface loose , resulting in insufficient pressure ) .

( 3) The body of the phone : the shaft from the turbine to remove , install interface running on . If there is no outflow amount of water, it is the problem turbines within the body ( water holes or dirt clogging turbines within the water supply system clogging ) .

( 4 ) shaft : If the above three normal outflow of water , it is the axis of the core problem (water nozzle clogging ) .
