JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine
JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine
Specifications
Brand Name :
PTE
Model Number :
JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
Impact energy (J) :
150, 300
Impact velocity (m/s) :
5.2
Raised angle :
150Celsius degree
Packaging :
Standard Export Wooden Case
Description

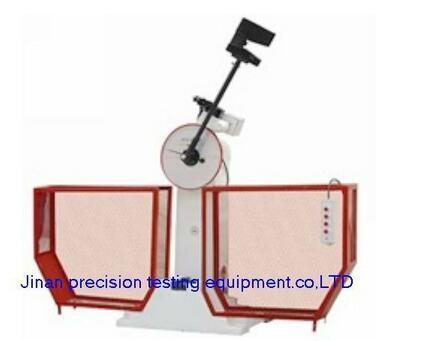

JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.

This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.

Semi-automatic impact testing machine JBS series specification:

Model JBS-300B JBS-500B JBS-800B
impact energy 150/300J 250/500J 500/800J

The distance between the

pendulum shaft and impact point

 750mm 800mm 800mm
Impact speed 5.2m/s 5.4 m/s 5.9m/s
Pre-rising angle of the pendulum 150°
Specimen bearer span 40+0.2mm
Round angle of the jaw R1-1.5mm
Round angle of impact edge R2-2.5mm,R8±0.05mm
Angle accuracy 0.1°
Standard specimen dimension 10mm×10(7.5/5)mm×55mm
Power supply 3phs, 380V, 50Hz Or 220V,60Hz
Dimensions (mm) 2124*600*1340 2200*650*1960 2450*1200*2455
Net Weight (kg) 450 650 2300

Impact Testing Machine Configurations:

1). Main unit----------1 set

2). Pendulum

JBS-300B JBS-500B JBS-800B
150J/300J--2 pcs 250J/500J--2 pcs 500J/800J--2 pcs

3). Span specimen plate (L = 40mm)----1 pc

4). Specimen centering plate (L = 40mm)(U, V)----1 pc
5). Stripping attachment----1 pc
6). Internal hexagonal wrench (S=12mm)---1 pc
7). Anchor bolts (M16x300mm)---4 pcs

8). Impact testing security guards----1 pc

9). Touching screen control panel/ PC software


Email: ptestmachine@gmail.com

JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine

JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine


JB-500B 300J, 500J,800J Semi-automatic Charpy lab equipments mechanical machine
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
