Carton Compression Strength Testing Machine
Carton Compression Strength Testing Machine
Specifications
Brand Name :
PTE
Model Number :
Carton Compression Strength Testing Machine
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Testing Machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
Display :
Digital
Driving :
Hydraulic
Control :
Manual
Column Processing :
Galvanized
HS Code :
9024800000
Description

Carton Compression Strength Testing Machine
Carton Compression Strength Testing Machine

Carton compression strength testing machine
Introduction

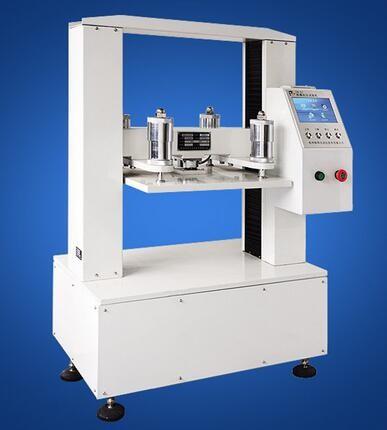

ZB-KY carton compression tester is the essential testing equipment to test the compressive strength of carton box. Adopted high precise sensor, ARM chip, with powerful data processing function, test process automatic tracking, the testing result is automatic recording, real-time display test data and curve, and can communicate with computer. Touch-screen display make the instrument easy to operate, good appearance, and quick response
Standard
ISO12048 ISO2871 ISO2874 GB/T 4857.3 GB/T 4857.4
Main characters
(1)Strength test: To test the maximal strength of carton box
(2)Definite value test: The data can be preset to test the strength and variant of the carton box
(3)Stacking test: Can have the stacking test within 12 or 24 hours
(4)Good design, adopted precise whorl and guide pillar which can assure the stability
(5)Servo motor control, compression speed is10mm/min, and return speed can get to 100mm/min
(6)Use high precision pressure sensor to make the measurement accurate
(7)According to the user's need to design
(8)Touch-screen display

Main technical parameters
ItemZB-KY10ZB-KY50
Power supplyAC220V±10% 50HZ
Measuring range(0.1-10)kN(1-50)kN
Indication error<±1%
Platen size600*600mm
(customized)		800*800mm/1000*1000mm/1200*1200mm/1500*1500mm (customized)
Operating stroke600mm
(customized)		800mm/1000mm/1200mm/1500mm (customized)
Compression speed10mm/min
Speed adjustment range2-100mm/min
Track and force speed in stacking test2mm/min


Carton Compression Strength Testing Machine
Carton Compression Strength Testing Machine
Carton Compression Strength Testing Machine
Carton Compression Strength Testing Machine
Carton Compression Strength Testing Machine
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Carton Compression Strength Testing Machine
