WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
Specifications
Brand Name :
PTE
Model Number :
WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
wooden case
Packaging Details :
within 10 days after the confirmed order
Usage :
Universal Testing Machine
standards :
ASTM, DIN, BS, JIS, GB, etc.
test material :
metal,plastic,rubber,spring, all kinds of rope material
fields :
metallurgy, machinery, building engineering,industry,lab,factory
Load accuracy :
≤±1%
Description

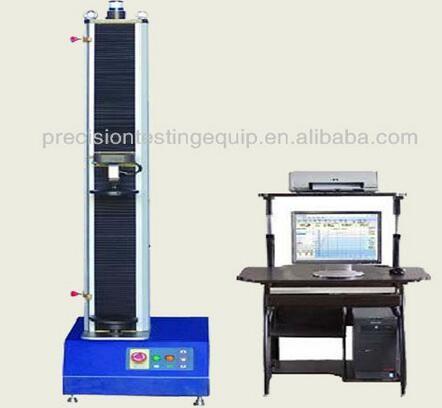

WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
WDW-S5 Computer Servo Control Electronic Cable Testing Equipment

Applications:

The WDW-S5 Computer Servo Control Electronic Universal Testing Machine Price,Universal Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customers request. It is for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Main Specifications:

Model WDW-S5;
Max. Load 5kN
Load accuracy ≤±1%
Load resolution 1/200000
Load range 2%-100% of full scale
Test speed 0.01-500mm/min
Speed accuracy ≤±1%
Displacement resolution 0.01mm
Effective tensile space 700
Dimension 600x320x1750mm
Power supply 220V, 1ph, 0.5KW
Weight 200KG
Grips Wedge type, plate type and other grips as consumer’s demand
Load frame type Single column

Features:

  1. High accuracy servo motor to control test speed.
  2. Ball screw no backlash to guarantee the low noise and high driving efficiency
  3. High accuracy load cell to measure the test load
  4. High accuracy photoelectric encoder to measure the displacement.
  5. Maxtest software has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
  6. Thousands of test fixture can be used according to different test request;
  7. Compact structure with easy operation.
  8. Limit switch and setting in the software to guarantee the safety

WDW-S5 Computer Servo Control Electronic Cable Testing Equipment

WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
WDW-S5 Computer Servo Control Electronic Cable Testing Equipment
