Drones Defense & Low-Altitude Defense System

1, Product Introductio

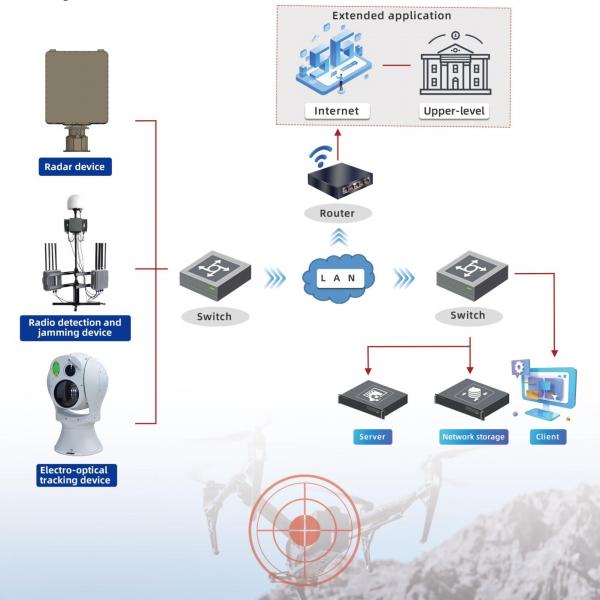

The system deeply integrates radar detection equipment, radio detection and jamming equipment, and electro-optical tracking equipment. By combining technologies such as multi-spectrum detection, multi-source data fusion, and intelligent analysis and decision-making, it can achieve early detection, rapid locking, stable tracking, accurate identification, and strong countermeasures against low-altitude drones, ensuring low-altitude security in key locations throughout all times and in all dimensions.

2, System Software

The software is a comprehensive visual anti-drone management platform that integrates functions such as multi-source cooperative linkage, device management, situational display and control, decision-making and command, record-keeping and evidence collection, and target retrieval. Based on multi-spectrum detection technology, GIS map situational display and control, radio signal jamming technology, it builds an automated, intelligent drone defense and control integrated platform.

3, Core Features

1) Multi-source Cooperation and Intelligent Visual Tracking

It can guide the gimbal based on target position data from radar or drone detection equipment, enabling visual identification and long-range automatic tracking of drones through intelligent vision.

2) Device Management:

Supports unified management of radio frequency detector, radar, electro-optical turntable, jammer, and spoofing devices.

3) Drone Flight Trajectory Display:

Supports real-time display of drone flight trajectory and replay history records of detected drone flight trajectory on GIS map

4) Jamming and Spoofing:

Use jamming and spoofing device to attack or counteract drone, and support multiple jamming mode such as wideband jamming and unattended attack

5) Video Preview and PTZ Control:

Supports real-time video preview, visible light and thermal imaging video switching, as well as control of gimbal orientation and zoom lens functions.

4, System Hardware

Name		Technical Specifications
Model		DD-R5	DD-R8	DC-R10
Appearance
Working frequency band		X band
Coverage	Azimuth	360°
	Elevation	-5~40°	-4~60°	-5~60°
	Range	10km	15 km	20 km
	Altitude	1000m	2000m	3000m
Detection range	Small rotary-wing drone	≥5km	≥8km	≥10km
	Small fixed-wing drone	≥8km	≥12km	≥15km
Accuracy	Distance	≤5m(RMS)
	Angle	Azimuth: ≤0.4°(RMS),Elevation: ≤0.4°(RMS)
Simultaneous tracking quantity		≥200		≥500
Tracking speed		1~150m/s	1~150m/s	1~150m/s
Power consumption		≤240W	≤300W	≤380W
Weight (kg)		≤30 ≤30	≤30	≤50
Protection level		IP66

5,Drone Detection and Jamming Device

Name	Technical Specifications
Model	DD-D8	DD-D13		DD-D16
Appearance
Detection range	70MHz-6GHz full-band scanning, detection, and display
Key frequency band	800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection range	≥10km (depends on the environment)
FPV video transmission detection	500MHz-6GHz full frequency scan and display
video transmission detection range	≥1.5km (Supports real-time video viewing)
Omnidirectional jamming band	800MHz, 900MHz, 1.1GHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz	350MHz, 433MHz, 700MHz, 800MHz, 900MHz, 1.1GHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz, 6GHz		350MHz, 433MHz 700MHz, 800MHz, 900MHz 1.2GHz, 1.4GHz 1.3GHz, 1.5GHz 1.8GHz, 2.1GHz 5.2GHz, 5.4GHz 5.8GHz, 5.6GHz, 2.4GHz
Directional jamming band	——	900MHz, 2.4GHz, 5.2GHz, 5.8GHz
Jamming range	≥3km
Weight	≤50kg		≤150kg

6, Electro-optical Tracking Device

Name		Technical Specifications
Model		DD-E2	DD-E3	DD-E5
Appearance
Angle	Elevation	-90~90°	-30~60°	-90~90°
	Azimuth	360°
Range	Identification range	Visible light:1000m Thermal imaging: 500m	Visible light:2000m Thermal imaging: 800m	Visible light:3000m Thermal imaging: 1200m
	Tracking range	Visible light:1000m Thermal imaging: 500m	Visible light:3000m Thermal imaging: 1000m	Visible light:5000m Thermal Imaging:1700m
Visible light unit		2 MP, 7–320 mm focal length	4 MP, 25–500 mm focal length	4 MP, 12.5–775 mm focal length
Thermal imaging unit		640×512 100mm fixed focus	640×512 31～155mm focal length	640×512 22～230mm focal length
Power consumption		≤120W Peak: 300W	≤150W Peak:350W	≤150W Peak:≤600W
Protection level		IP67	IP66	IP67
Weight (kg)		11.5	40+ 12 (intelligent analysis box)	≤110

7, Application Scenarios

8, Certification Certificate

9, Company profile

Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.

With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.

The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
