IP66 Drone Detection System Model Pure Deceptive Jamming Station DC12V Or AC220V
IP66 Drone Detection System Model Pure Deceptive Jamming Station DC12V Or AC220V
Specifications
Brand Name :
MYT
Model Number :
DR200S
Place of Origin :
China
MOQ :
1
Payment Terms :
TT, LC
Supply Ability :
1000units per month
Delivery Time :
10 work days
Power supply :
Vehicle DC12V or AC220V
Weight :
≤20kg
Operating frequency bands :
GPS (L1), Beidou (B1), GLONASS (L1)
Transmitting power :
≤6.5mW
Repulsion distance :
≥800m
Repulsion response time :
≤5s
Repulsion angle :
Horizontal 360°; Vertical 90°
Effective repulsion targets :
≥4 units
Navigation deception distance :
≥500m
Operating temperature :
-40℃ ~70℃
Protection level :
IP66
Lightning protection characteristics :
The machine has a lightning protection test certification issued by a relevant testing institution with national certification permission, and the machine's shell lightning protection level: Surge current ≥50kA; Feedline and antenna lightning protection le
ESD immunity :
Level 3 ESD immunity test according to GB/T17626.2
RF electromagnetic field radiation immunity :
Level 3 according to GB/T17626.3
Unmanned operation :
24-hour unmanned defense capability
Certification :
CNAS、CMA、CAL、ILAC-MRA
Price :
Pricing is negotiable based on order quantity
Description

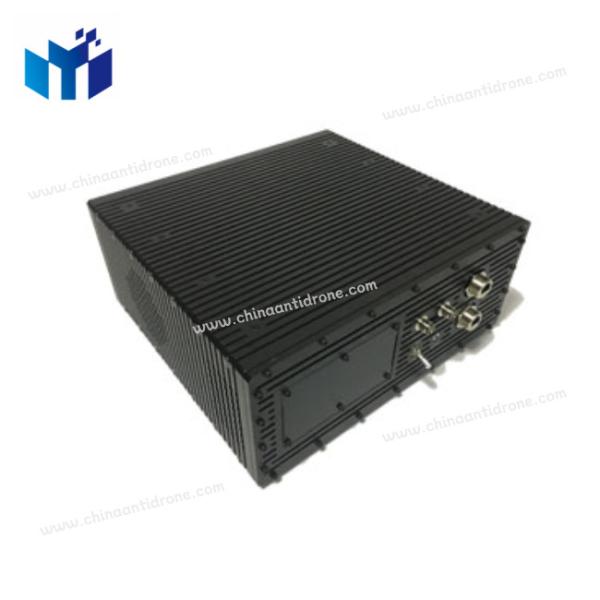

Directional Drone Jammer Model Pure Deceptive Jamming Station DR200S

1,Product Introduction

This product interferes with the satellite navigation coordinate information received by drones using satellite navigation positioning by regenerating satellite navigation spoofing signals of no less than two frequencies.

IP66 Drone Detection System Model Pure Deceptive Jamming Station DC12V Or AC220V

2,Specification

DR200S Specification (● yes, ○ no)
Power supply Vehicle DC12V or AC220V ●
Weight ≤20kg ●
Operating frequency bands GPS (L1), Beidou (B1), GLONASS (L1) ●
Transmitting power ≤6.5mW ●
Repulsion distance ≥800m ●
Repulsion response time ≤5s ●
Repulsion angle Horizontal 360°; Vertical 90° ●
Effective repulsion targets ≥4 units ●
Navigation deception distance ≥500m ●
Operating temperature -40℃ ~70℃ ●
Protection level IP66 ●
Lightning protection characteristics The machine has a lightning protection test certification issued by a relevant testing institution with national certification permission, and the machine's shell lightning protection level: Surge current ≥50kA; Feedline and antenna lightning protection level: 10kV/5kA ●
ESD immunity Level 3 ESD immunity test according to GB/T17626.2 ●
RF electromagnetic field radiation immunity Level 3 according to GB/T17626.3 ●
Unmanned operation 24-hour unmanned defense capability ●

3, After-Sales service

Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
