Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform

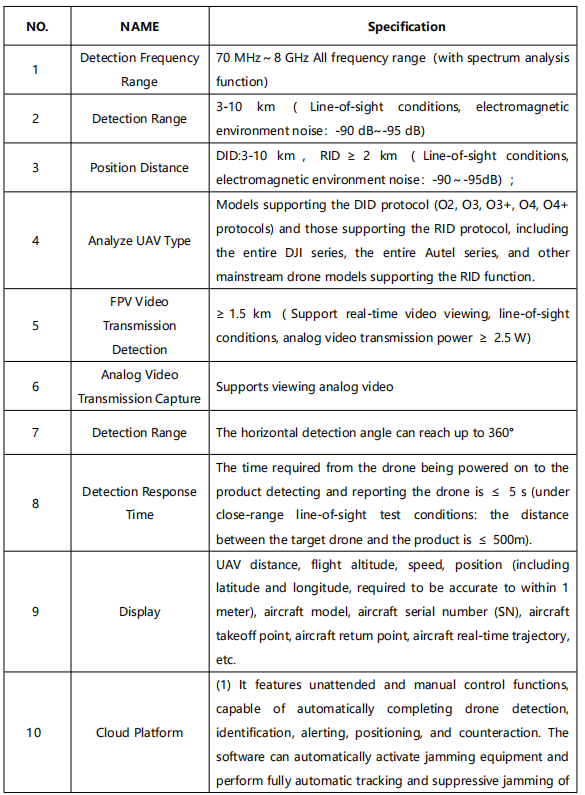

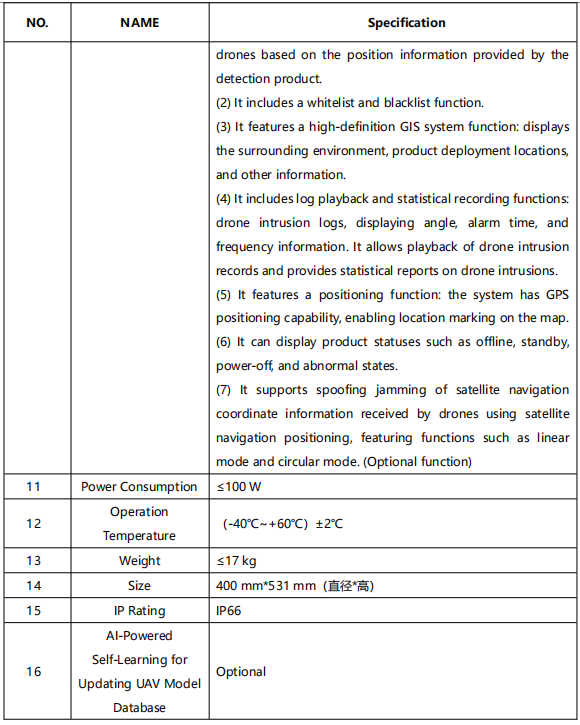

Specifications
Brand Name :
MYT
Model Number :
KZ-02
Certification :
CNAS、CMA、CAL、ILAC-MRA
Place of Origin :
China
MOQ :
1
Price :
Pricing is negotiable based on order quantity
Payment Terms :
L/C,T/T
Supply Ability :
1000units per month
Delivery Time :
10 work days
Detection Frequency Range :
70 MHz～8 GHz All frequency range（with spectrum analysis function）
Detection Range :
The horizontal detection angle can reach up to 360°
Position Distance :
DID:3-10 km ， RID ≥ 2 km （ Line-of-sight conditions, electromagnetic environment noise：-90～-95dB）
Analyze UAV Type :
Models supporting the DID protocol (O2, O3, O3+, O4, O4+ protocols) and those supporting the RID protocol, including the entire DJI series, the entire Autel series, and other mainstream drone models supporting the RID function
FPV Video Transmission Detection :
≥ 1.5 km （ Support real-time video viewing, line-of-sight conditions, analog video transmission power ≥ 2.5 W）
Analog Video Transmission Capture :
Supports viewing analog video
Power Consumption :
≤100 W
Operation Temperature :
（-40℃~+60℃）±2℃
Weight :
≤17 kg
Size :
400 mm*531 mm
AI-Powered Self-Learning for Updating UAV Model Database :
Optional
IP Rating :
IP66
Description
Fixed KZ-02 Drone Detection Device
Advanced UAV Detection and Positioning System
The fixed-site KZ-02 UAV Detection Device provides comprehensive drone detection and positioning capabilities to address growing security challenges from unauthorized UAV activities. Through full-band scanning, multi-dimensional analysis, and real-time alerting, this system delivers critical situational awareness for airspace security operations.
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Technical Specifications and Protocols
  • DID (Drone ID): UAV Identification Protocol for transmitting and identifying drone identity information
  • RID (Remote ID): UAV Remote Identification Protocol for remotely acquiring drone position and identity information
  • FPV (First-Person View): Real-time view of drone's flight perspective through video transmission equipment
  • GIS (Geographic Information System): System for presenting geospatial data and environmental information
Certifications and Quality Standards
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Manufacturing Excellence
Affiliated with the Institute of Internet of Things (IoT) under the Chinese Academy of Sciences, we specialize in low-altitude security research with strong technological expertise. Our R&D team includes over 100 members and more than 120 test engineers, featuring 1 academician of the Chinese Academy of Sciences, 17 Ph.D. holders, and 48 master's degree holders.
Core Technologies: Advanced low-altitude radar systems, spectrum-based radio detection equipment, photoelectric camera tracking devices, and integrated defense systems with sophisticated clutter algorithms for optimal signal processing.
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Packaging and Shipping Specifications
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Manufacturing Facilities
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Advanced Laser Anti-Drone Technology
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
Customer Support and Service
  • 24-hour after-sales service support
  • Online technical support for usage or quality issues with comprehensive problem diagnosis
  • 3-month return policy from dispatch date for undamaged products with full refund or product modification options
Fixed KZ - 02 Drone Detection Device Featuring A Full - Band RF Scanner, 360° Monitor, And GIS Cloud Platform
