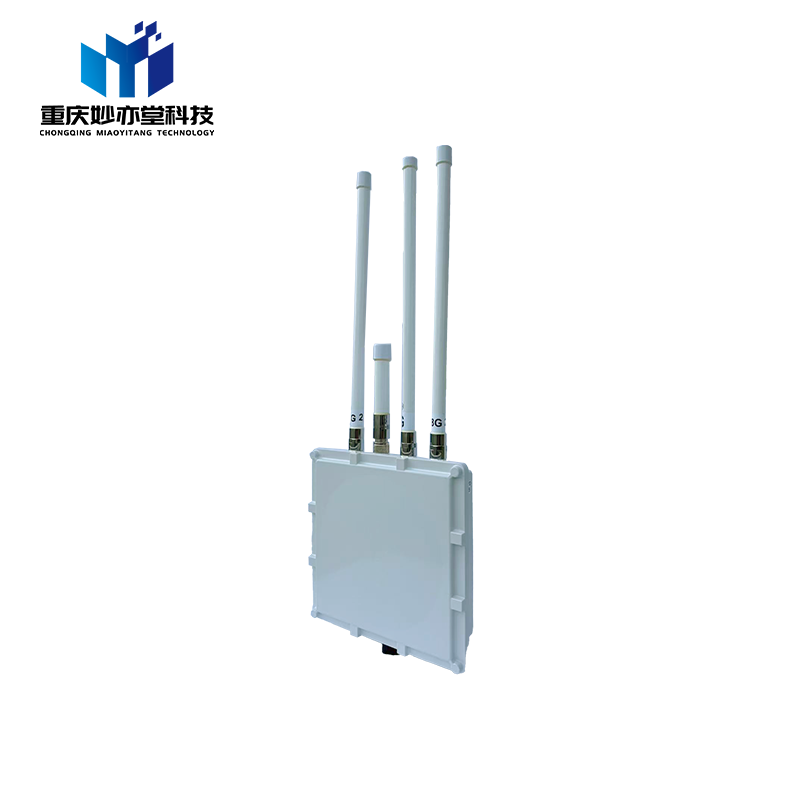

UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness
UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness
UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness
UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness
UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness
UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness
Specifications
Model Number :
KZ-40
Signal capture sensitivity :
≤-102dBm (2.4GHz band), ≤-100dBm (5.8GHz band)
MOQ :
1
Delivery Time :
10 work days
Detection count :
≥30 units (fixed type)
detection zone :
360° horizontal and 90° vertical
Certification :
CNAS、CMA、CAL、ILAC-MRA
Detection range :
≥3 km (open area)
working temperature :
-20°C to 65°C (Portable)
Payment Terms :
TT,LC
Detection coverage :
400MHz-6GHz
Brand Name :
MYT
probe response time :
≤1 second (RID signal parsing), ≤2 seconds (DID reading)
Place of Origin :
China
levels of protection :
IP66
Price :
Pricing is negotiable based on order quantity
Resolution distance :
RID≥2 km; DID≥3 km (open area)
Supply Ability :
1000units per month
Device power consumption :
≤10W
Description

UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness

1 Product Introduction

KZ‑40 UAV RID signal analyzer supplies parsed metadata to empower low‑altitude airspace situation‑awareness systems. It continuously outputs timestamp‑attached flight‑trajectory metadata including latitude, longitude, altitude and speed to reconstruct complete drone flight paths. All parsed records carry timestamps to support security‑incident traceability. Its data interface reserves compatibility for multi‑source data fusion together with radar and optoelectronic equipment. Custom filters preserve records of abnormal‑flight targets to support post‑event review and analysis for command‑center deployment.

UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness

2 Specification

order number

name

performance index

remarks

1

Detection coverage

400MHz-6GHz

apolegamy

2

Signal capture sensitivity

≤-102dBm (2.4GHz band), ≤-100dBm (5.8GHz band)

3

Detection range

≥3 km (open area)

4

Resolution distance

RID≥2 km; DID≥3 km (open area)

DID apolegamy

5

detection zone

360° horizontal and 90° vertical

6

Detection display

Drone distance, flight altitude, speed, position (including latitude and longitude with precision to 1 meter), aircraft model, aircraft SN, aircraft takeoff point, aircraft return point, and real-time aircraft trajectory, etc.

7

positioning accuracy

Broadcast accuracy consistent with UAV RID (horizontal ≤10m, vertical ≤5m, open environment)

8

Detection count

≥30 units (fixed type)

9

Parsing delay

≤200ms (from signal reception to information output)

10

Data feedback method

Supports Ethernet (10/100/1000Mbps) and 4G/5G (long-distance backhaul)

11

working temperature

-20°C to 65°C (Portable)

12

size

indeterminate

13

probe response time

≤1 second (RID signal parsing), ≤2 seconds (DID reading)

14

power supply mode

Battery-powered or mains power

15

Device power consumption

≤10W

16

weight of equipment

indeterminate

17

levels of protection

IP66



3 Functional highlight

① UAV RID signal analyzer: Provide parsed metadata for low‑altitude airspace situation awareness system

② Real‑time flight‑trajectory metadata output: Continuously output latitude, longitude, altitude and speed for flight‑track reconstruction

③ Timestamp‑attached target records: Every parsed record carries time stamp for security‑incident traceability

④ Multi‑source data fusion ready: Easy to combine with radar and optoelectronic device data for full‑picture situation building

⑤ Event‑oriented data filter: Retain abnormal‑flight‑target records for post‑incident review and analysis


4 After-Sales service

Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.


5 Certification Certificate

UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness


6 Company profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

UAV RID Signal Analyzer Real‑time Flight‑trajectory Metadata Output For Airspace Situation Awareness


7 Partnership Portfolio

Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.


8 Paking and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
