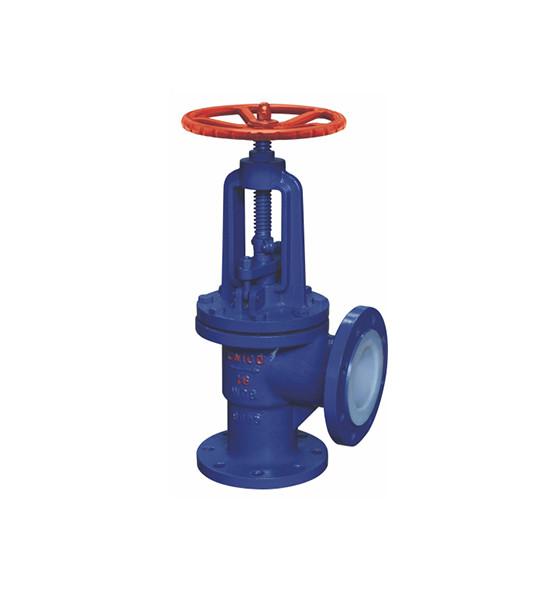

PFA Lined ANSI Angle Type Globe Valve PN10 Chemical Fluid Use With Handwheel
PFA Lined ANSI Angle Type Globe Valve PN10 Chemical Fluid Use With Handwheel
PFA Lined ANSI Angle Type Globe Valve PN10 Chemical Fluid Use With Handwheel
PFA Lined ANSI Angle Type Globe Valve PN10 Chemical Fluid Use With Handwheel
Specifications
Brand Name :
YFM
Model Number :
J41F
Certification :
CE,SIL
Place of Origin :
WENZHOU
MOQ :
12PC
Price :
120USD/PC
Payment Terms :
L/C, T/T, D/A
Supply Ability :
120000PCS/YEAR
Delivery Time :
13 WORK DAYS
Packaging Details :
PLYWOOD CASE
Media :
Acid, Water, Oil, Gas
Power :
Manual,electric,Wheel Hand Operated
Material :
Casting,Stainless Steel
Pressure :
Medium Pressure,Low Pressure,PN10 - PN16
Structure :
Globe
Temperature of media :
Medium Temperature,Normal Temperature,-20- 180°c
product name :
PFA Lined Globe Valve
Description

PFA Lined ANSI Angle Type Globe Valve PN10 Chemical Fluid Use With Handwheel

Technical Specification

Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10, GB/T 12221
Flange Standard: ASME B 16.5, GB/T 9119, DIN, JIS
Inspection and Testing: API 598, GB/T 13927

Product Specification

Body Material: WCB, ASTM A395, CF8, CF8M
Lining Material: PFA, FEP, PTFE
Nominal Diameter: 1/2"-14"(DN15~DN350)
Pressure Range: Class150, PN10, PN16
Operation Method: Manual, Worn gear, Electric, Pneumatic actuator

Medium:Chlor-Alkali/Pharmaceutical/Semiconductor/Petroleum Refining/Industrial Inorganic Chemicals/Nitrogen and Phosphatic Fertilizers/Metal and Mining

Key features:

  • Compact Design
  • Investment Casting
  • Lining Virgin PFA
  • Bubble Tight Shutoff
  • High Permeation Resistance
  • Small flow resistance
  • Maintenance-free
