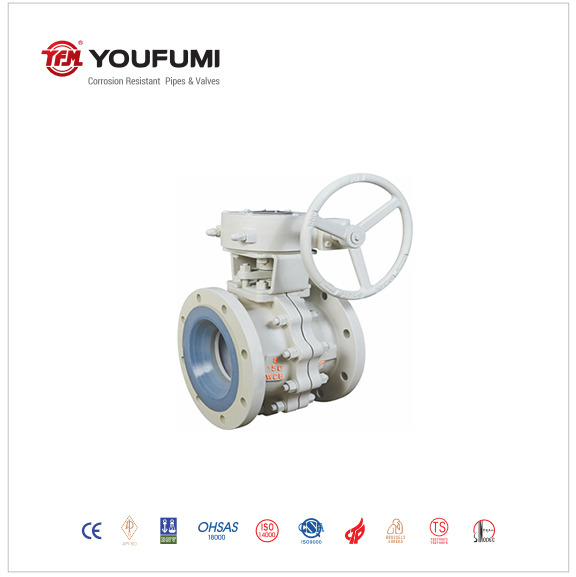

PFA Side Entry Floating Ball Valve , 8Inch 150lbs Worm Gear Ball Valve
PFA Side Entry Floating Ball Valve , 8Inch 150lbs Worm Gear Ball Valve
PFA Side Entry Floating Ball Valve , 8Inch 150lbs Worm Gear Ball Valve
PFA Side Entry Floating Ball Valve , 8Inch 150lbs Worm Gear Ball Valve
Specifications
Brand Name :
YFM
Model Number :
Q341F
Certification :
CE,SIL
Place of Origin :
WENZHOU
MOQ :
2PC
Price :
230USD/PC
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
150000PCS/YEAR
Delivery Time :
15 WORK DAYS
Packaging Details :
PLYWOOD CASE
Material :
Stainless Steel,Casting,Plastic,Forged carbon steel/stainless steel
Pressure :
Medium Pressure,Low Pressure,200psi/PN16
Power :
Manual,Pneumatic,Electric,Gear
Temperature of media :
Medium Temperature,Normal Temperature
Media :
Water,Oil,Gas,Acid
Structure :
Ball
Port size :
3/4''-12''
product name :
PFA Lined Ball Valve
Description

Lining Virgin PFA Full Lined Worm Gear 8Inch 150lbs Floating Ball Valve

Technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10 , GB/T 12221
Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927

Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M
Lining Material: PTFE , PFA , PO ,FEP
Nominal Diameter: 1/2"-14"(DN15~DN350)
Pressure Range: Class150 , PN10 , PN16
Operation Method: Manual , Worn gear ,Electric ,Pneumatic actuator

YFM lined ball valve advantages:

1. Adjustable stem packing.

2. Positive stem seal. PTFE chevron packing provides stem seal integrity while maintaining low turning torque.

3. Anti-blowout stem assembly prevents stem blowout even in the event of top works disassembly.

4. Separate ball/stem connection greatly reduces side loading, thus extending stem seal life.

5. Thick liner 100% inspected at 20,000 VDC for defects is made from highly corrosion resistant FEP to 300°F (150°C) or PFA to 400°F (200°C). A variety of metallic and non-metallic ball material options are available.

6. ISO 5211 universal mounting pad permits easy automation even with the valve in the pipeline.

7. Graphite bearing prevents side loading and extends seal life.

8. Cavity space minimizes the retention of process media.

9. Lining securely locked into the body by “T” slots and locking grooves;completely encapsulated ball and stem. Can handle

pressures from full vacuum to 275 psi (19 bar).
10. Extensive selection through 12 in (300 mm) for standard port and ball port valves.
11. Ductile iron body sections (ASTM A395 60-40-18) with high strength B7 fasteners are both rugged and rigid. B8 offered as alternate.
12. Designed in accordance with ASME B16.5 Class150 lb (DIN 2501⁄PN16) flange dimensions and ASME B16.10 face-to-face dimensions. Leak testing according to API 598 or DIN 3230 criteria.
