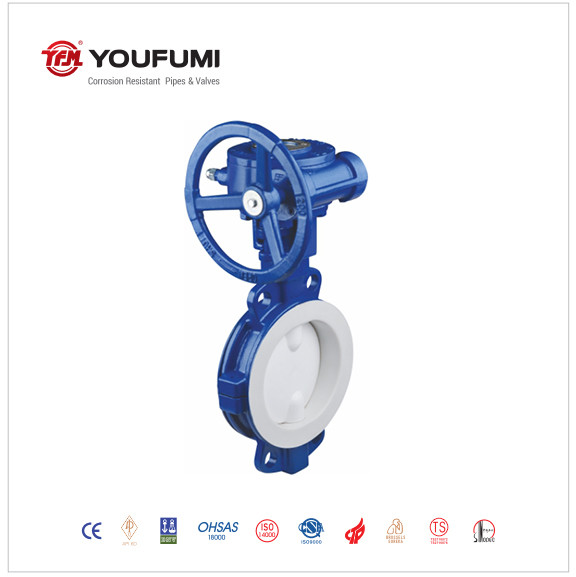

PTFE CF8 PN6 SS Body Butterfly Valve ANSI Standard Normal Temperature For Food
PTFE CF8 PN6 SS Body Butterfly Valve ANSI Standard Normal Temperature For Food
PTFE CF8 PN6 SS Body Butterfly Valve ANSI Standard Normal Temperature For Food
PTFE CF8 PN6 SS Body Butterfly Valve ANSI Standard Normal Temperature For Food
Specifications
Brand Name :
YFM
Model Number :
D371F
Certification :
CE,SIL
Place of Origin :
WENZHOU
MOQ :
1PC
Price :
200USD/PC
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
150000PCS/YEAR
Delivery Time :
13 WORK DAYS
Packaging Details :
PLYWOOD CASE
Material :
WCB+PTFE
Standard :
ANSI,DIN,GB
MEDIUM :
ACID
Temperature of media :
Normal Temperature
Media :
Water,Oil,Gas,Acid
Port size :
3/4''-24'
product name :
PFA Lined Butterfly Valve
Description

Full Lined PTFE Stainless Steel CF8 CF8M Body Butterfly Valve for Food

Technical Specification

Design and Manufacture Standard: ASME B16.34, HG/T 3704

Face-to-face Dimension: ASME B16.10 , GB/T 12221

Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS

Inspection and Testing: API 598, GB/T 13927

Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M

Lining Material: PTFE , PFA , PO ,FEP, EPDM

Nominal Diameter: 2"-80"(DN50~DN2000)

Pressure Range: Class150 , PN6 , PN10 , PN16

Connection Type: Flange ,Wafer , Lug Connection

Operation Method: Manual ,Worn gear ,Electric ,Pneumatic actuator

Products Decription:

Single-piece disc/stem unit optionally fluoroplastic
Lined with pure PFA for maximum corrosion resistance and a long service life.Very low friction values and torques during opening and closing due
to the combination of a PFA disc/stem unit with a PTFE body
Optionally antistatic PFA-L
Disc/stem core made of highly torsion resistant Duplex stainless steel 1.4517/CD-4 MCu(18“-40“/DN 450-1000: SS 1.4435/316L)
Alternatively metallic
Made of precision cast stainless steel Polished sealing surfaces, therefore very low friction values
Polished disc surfaces on request
Other materials on request, e.g. Hastelloy® C, titanium
Thick-walled PTFE and TFM-PTFE lining of the valve body
TFM-PTFE lining (2“-16“/DN 50-400 with PFA-lined disc: PTFE as standard, optionally TFM-PTFE)
Lining thickness 0.12- 0.15“ (3 -3.5 mm)
High permeation resistance
Vacuum-proof
Optionally antistatic PTFE-L, PE-UHMW
Wide sealing surfaces of body
lining for reliable sealing even with mating flanges with large radii, e.g. glass-lined components.
Permanently elastic seal in the valve opening by means of silicone insert under the PTFE body lining.
Optionally FKM insert (e.g. Viton®) for use with chlorine gas for example.
Double-action, maintenancefree and self-adjusting top and bottom
stem sealing
therefore reliable even with many switching cycles and fluctuating temperatures:
primary: body lining against disc/stem shoulder
secondary: O-ring PTFE, optionally RPTFE.
Long valve neck
permits optimal heat insulation without the installation of an elevated lever, additional stem extensions on request.
External corrosion protection
Epoxy coating, nuts and bolts made of stainless steel.
Centering to ISO 5211
Chlorine electrolysis options
Specially for use with wet chlorine gas:
Elastic insert made of Viton instead of silicone Body lining made of particularly
permeation-proof, modified PTFE instead of standard PTFE Body nuts and bolts made of steel, for example, instead of stainless steel Tantalum-coated ductile iron body.
Safety stuffing box
for use with environmentally hazardous media, independent action, can be adjusted manually from outside, on request with monitoring
connection.
Manual actuation with limit switch
