PTFE Lined Low Pressure Control Valve , Butterfly Control Valve Casting Material
PTFE Lined Low Pressure Control Valve , Butterfly Control Valve Casting Material
Specifications
Brand Name :
YFM
Model Number :
D641F
Certification :
CE,SIL
Place of Origin :
WENZHOU
MOQ :
19PC
Price :
1900USD/PC
Payment Terms :
L/C, T/T, D/A
Supply Ability :
170000PCS/YEAR
Delivery Time :
45 WORK DAYS
Packaging Details :
PLYWOOD CASE
Material :
Casting,Stainless Steel,Plastic,UPVC
Pressure :
Medium Pressure,Low Pressure
Power :
Pneumatic,Manual,electric
Temperature of media :
Medium Temperature,Normal Temperature
Media :
Water,Gas,Oil,Acid
Structure :
Control,Diaphragm
product name :
PFA Lined Control Valve
Description

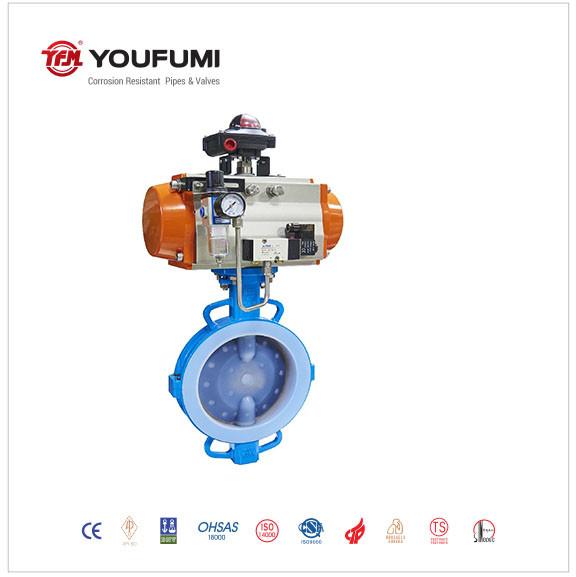

Pneumatic Actuated Fluoroplastic PFA/FEP/PTFE Lined Butterfly Control Valve


Technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10, GB/T 12221
Flange Standard: ASME B 16.5, GB/T 9119, DIN, JIS
Inspection and Testing: API 598, GB/T 13927

Product Specification
Body Material: WCB, ASTM A395, CF8, CF8M
Lining Material: PTFE, PFA, PO, FEP, EPDM
Nominal Diameter: 2"-80"(DN50~DN2000)
Pressure Range: Class150, PN6, PN10, PN16
Connection Type: Flange, Wafer, Lug Connection
Operation Method: Manual, Worn gear, Electric, Pneumatic actuator

Products Decription:
1. The lined butterfly valves bi-directional flow is possible at maxmium operating pressure. Since the valve port corresponds to the piping diameter, a high flow capacity is guaranteed.
2. It features ease of maintenance, repeatable on-off, long life durability.
3. The concentric design is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.
4. Lining material: PTFE, PFA, FEP, GXPO etc.
5. Connection type: Wafer, flange, lug etc.
6. Operation methods: Manual, worm gear, electric, pneumatic and hydraulic actuator.
7. Youfumi lined three-way ball valves are available as per the needs of applications in additional sizes and other than standard materials.
