Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch
Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch
Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch
Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch
Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch
Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch
Specifications
Model Number :
LJ20A3-8-Z/AY
Place of Origin :
Zhejiang, China
Brand Name :
KAMPA
Usage :
Magnetic Sensor
Theory :
Inductance Sensor
Output :
Switching Transducer
OEM :
YES
Detection distance :
8mm + 10%
Set the distance :
0 - 7mm
Lag distance :
The detection range below 10%
Standard test object :
Iron 30*30*1mm
Frequency response :
DC:0.5kHz AC:25Hz
supply voltage :
DC type: DC12 - 24V (6-36V) AC: AC110 - 220V (36 - 250V)
Current consumption :
Type N.P: 13mA, D: 0.8mA, A: 1.7mA
Output control :
Type N.P: 300mA, D: 200mA, A: 400mA
Protection structure :
IP67 (IEC)
Packaging Details :
Standard export carton
Port :
NingBo/SHANGHAI
Supply Ability :
20000 Piece/Pieces per Month
Price :
$3.00 - $5.00/Pieces
Description

LJ20A3-8-Z/BX NPN /NO/DC/proximity switch approach switch

modelLJ20A3-8-.

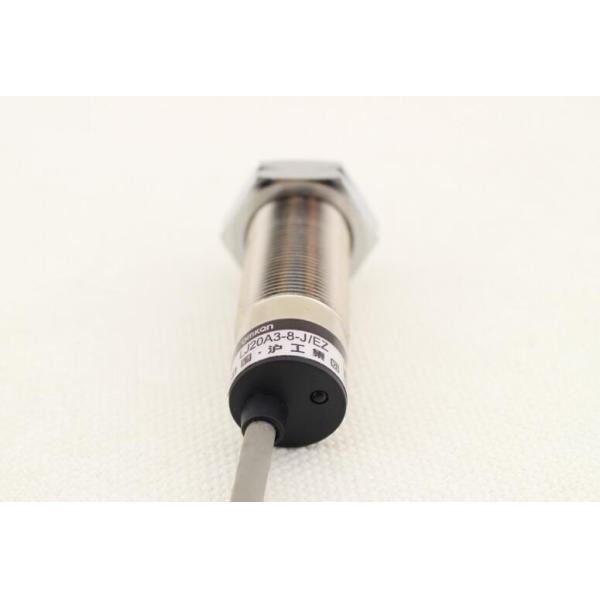

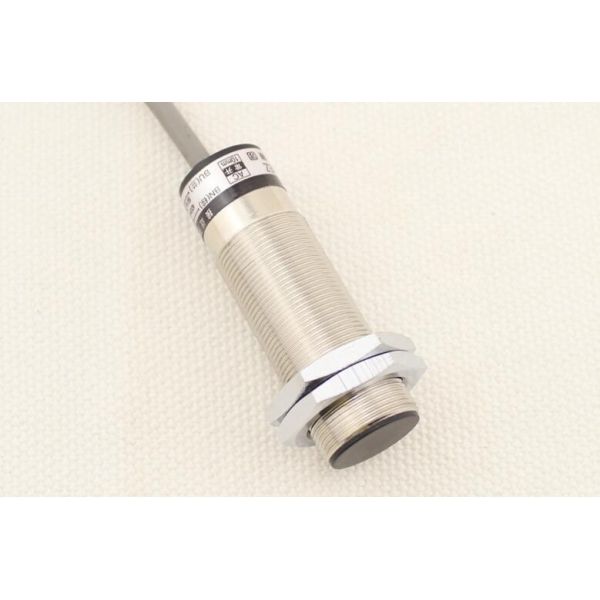

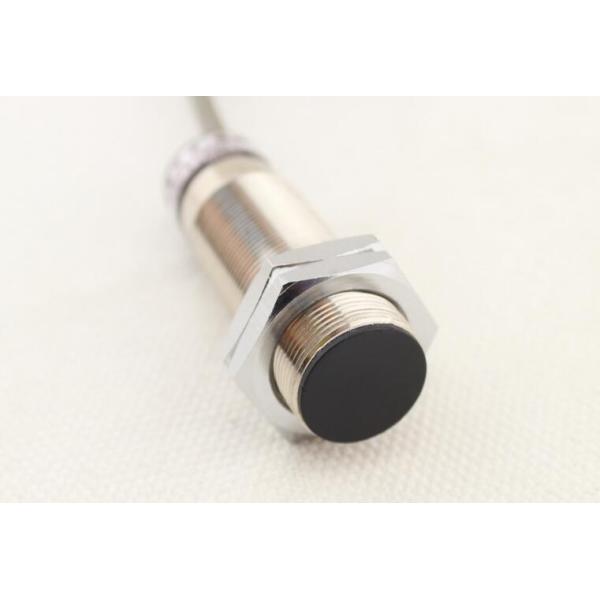

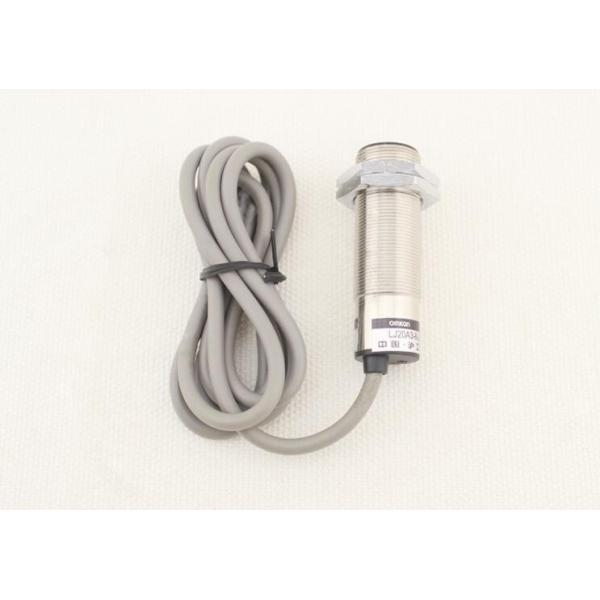

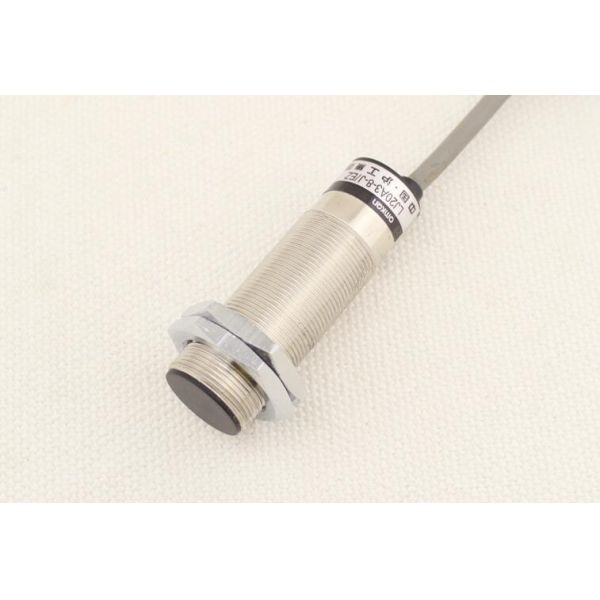

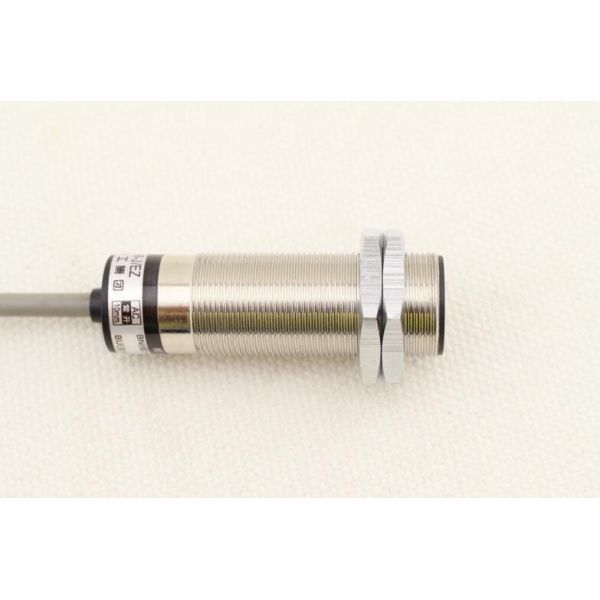

Product picture

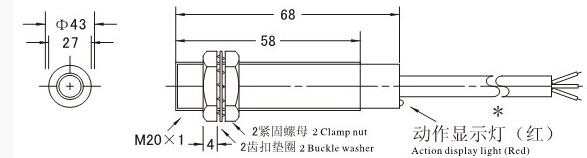

sizeInductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch
Installation modeNonshielded
modelDC typeNPNNOLJ20A3-8-Z/BX
NCLJ20A3-8-Z/AX
NO+NCLJ20A3-8-Z/CX
PNPNOLJ18A3-8-Z/BY
NOLJ20A3-8-Z/AY
NO+NCLJ20A3-8-Z/CY
second line—an advisory postNOLJ20A3-8-Z/EX
NCLJ20A3-8-Z/DX
ACsecond line—an advisory postNOLJ20A3-8-J/EZ
NCLJ20A3-8-J/DZ
Three lineNO+NCLJ20A3-8-J/EDZ
Detection distance8mm + 10%
Set the distance0 - 7mm
Lag distanceThe detection range below 10%
Object detectionMagnetic metal (non magnetic metal detection distance decreases)
Standard test objectIron 30*30*1mm
Frequency responseDC:0.5kHz AC:25Hz
supply voltageDC type: DC12 - 24V (6-36V) pulse (P-P) below 10%,
AC: AC110 - 220V (36 - 250V) 50/60Hz
Withstanding voltageAC1000V 50/60Hz 1min charging part and the shell.
The influence of voltageWithin the rated supply voltage range 15% rated supply voltage of + 10% detection distance
Current consumptionType N.P: 13mA, D: 0.8mA, A: 1.7mA
Output controlType N.P: 300mA, D: 200mA, A: 400mA
Loop protectionType N.P.D: reverse connection protection, surge absorption, load short-circuit protection, type A: surge absorption
The environment temperature and humidityWhen the movement, save the -30 +65 C
(ice, frost), action, save time: 35 - 95%RH
The influence of temperatureThe temperature range of -30 DEG C - +65, +23 C, + 15% detection distance
The temperature range of -25 DEG C - +60, +23 C, + 10% detection distance
Insulation resistanceThe above 50M (DC500 megameter) charging part and the shell.
texture of materialShell: nickel plated brass surface detection: ABS
Protection structureIP67 (IEC)

Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity SwitchInductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity SwitchInductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity SwitchInductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity SwitchInductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity SwitchInductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch

Packaging & Shipping

Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch

Company Information

Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch

Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch

Our Services

Inductive Proximity Sensor LJ20A3-8-Z/AY 3Wire NC DC 6-36V PNP 200mA Proximity Switch

A.Punctual delivery time:

We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
