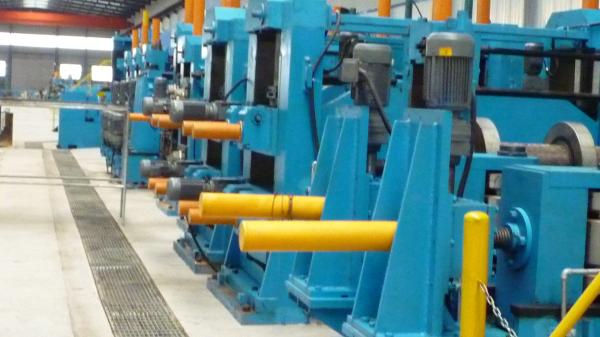

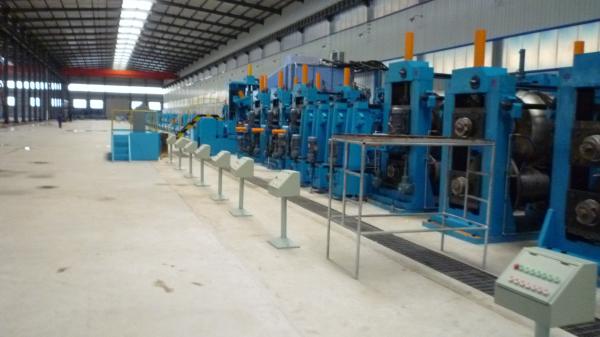

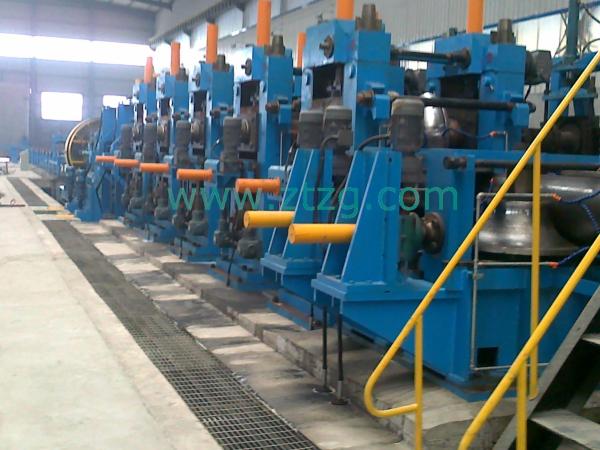

Diameter 406MM Thickness 16mm API Tube Mill Electric Control
Diameter 406MM Thickness 16mm API Tube Mill Electric Control
Diameter 406MM Thickness 16mm API Tube Mill Electric Control
Diameter 406MM Thickness 16mm API Tube Mill Electric Control
Diameter 406MM Thickness 16mm API Tube Mill Electric Control
Diameter 406MM Thickness 16mm API Tube Mill Electric Control
Specifications
Brand Name :
ZTZG
Model Number :
API 406
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Voltage :
220/380/415/440V
Pipe material :
X70 N80
Condition :
New
Round Pipe diameter :
219mm-406mm
Strip ThicknessStrip Thickness :
6-16mm
After-sales Service Provided :
Online support, Free spare parts, Field installation, commission
Marketing Type :
New product 2021
Colour :
Any colour
Speed :
30m/min MAX
Usage :
API Pipe
Dimension(l*w*h) :
Machine Configuration
Pipe shape :
Round
Warranty :
1 Year
Description

Functions

High-frequency welded pipe machinery is the production of low carbon low alloy steel material welded pipe special equipment, the specifications of the steel belt feeding machine will do the trick, by forming roller steel with curled up into a tube, then using high-frequency proximity effect and skin effect for tube side heat quickly to welding temperature, and under the squeezing roller extrusion complete welding, then through cooling, Sizing and roughing to the required size of steel pipe. The company's roll forming unit, FFX forming unit, roll row forming unit can produce X80, J55 API oil casing, oil, and gas pipe, in line with API-5L, API-5CT, and other standards.

Product Parameter

Product&yield Round Pipe 219mm-406mm Thickness:6mm-16mm
Length 6m-12m Length Tolerance: ±3mm
Production Speed 20-50 m/min
Production capacity 55,000ton/year
Consumption Mill installed capacity 2200 kw
Line Area 180m(length) ×11m (width)
worker 8-10 workers
Raw Material Carbon Steel coil L245,L360,A53,J55,N80 ,X42,X46,X52,X56,X60,X65,X70
Width 440mm-1025mm Thickness: 4.0mm-12.7mm
Coil ID 680-1320mm
Coil OD Max 2000mm
Coil Weight 15.0t


Advantage

√ Apply to high strength steel and big thickness

√ Raw material can be steel coil and single plate

√ ZTF forming process save roller up to 60%

√ Electric control and automatic adjustment, high precision, high roller change speed

Process Flow

Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding → Coil Accumulator → Forming (Flattening Unit + Main Driving Unit + Forming Unit + Guide Unit + High Frequency Induction Welding Unit + Squeeze Roller) → Deburring → Water Cooling → Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage

Diameter 406MM Thickness 16mm API Tube Mill Electric Control

Diameter 406MM Thickness 16mm API Tube Mill Electric Control

Diameter 406MM Thickness 16mm API Tube Mill Electric ControlDiameter 406MM Thickness 16mm API Tube Mill Electric ControlDiameter 406MM Thickness 16mm API Tube Mill Electric ControlDiameter 406MM Thickness 16mm API Tube Mill Electric Control

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the Middle East, Europe, and South America throughout the years. Our innovative designed production line and each unit of the production line practical.
