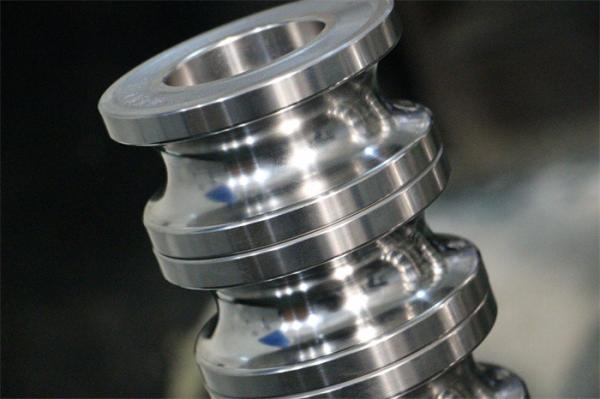

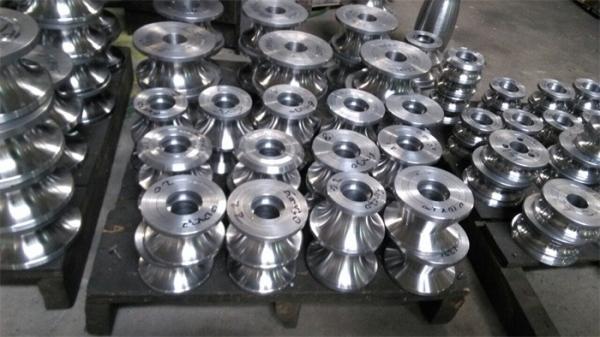

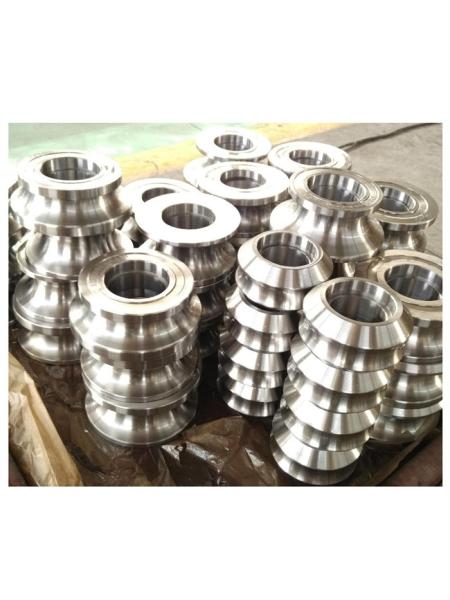

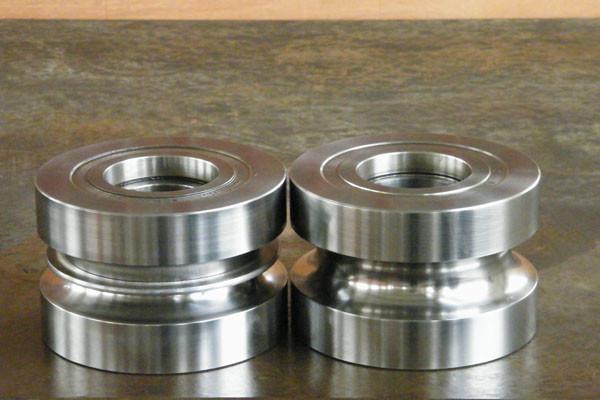

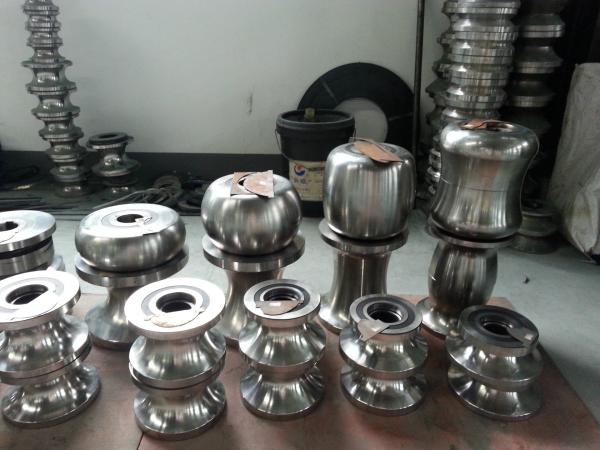

HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
Specifications
Brand Name :
ZTZG
Model Number :
Cr12
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Material :
Cr12 /Cr12MOV
Shaping Mode :
Forming Pipe Mould
Hardness :
HRC58~63
Application :
ERW pipe production line
Service Life :
≥10 years
Quality :
Grade 1
Weight :
Depending on pipe size
Package :
Wooden Case
Place of Origin: :
Hebei, China
Model Number: :
Cr12
Shaping Mode: :
Compression Mould
Product Material: :
Carbon steel
Description

Moulds Manufacture Rountine

Materials for roll sets-Roughing process-Drilling hole-CNC fine finishing-Polishing-Typing code-Heat treatment-Grinding inside hole-Drilling key slot-Drilling hole for bearing-Finished product inspection

Heat treatment way: There are four heat treatment way for your choose.
(1) Vacuum Heat Treatment : HRC 61-63
(2) Black treatment: HRC61-63
(3) Nit riding treatment: HRC61-63
(4) Vacuum Gas Quenching and Subzero Heat Treatment: HRC63-65
Warm reminding: Tube diameter≥133mm, HRC:58-61


Technology
The company has vigorously introduced the German professional roll design software COPRA, which can design all kinds of rolls according to customer requirements.

HRC58~63 Roll Forming Roller

Application
Welded pipe manufacturing (oil pipeline, natural gas pipeline, water pipe, furniture pipe, electricity tower pipe, automobile pipe, nuclear power pipe, ship bridge pipe, building pipe, metal doors and Windows pipe, air conditioning pipe, urban high-speed guardrail, rail transit, etc.)

HRC58~63 Roll Forming Roller

Material Science Varieties
Cr12Mov Dongbei special steel Cr12MOV/Daye special steel Cr12Mov
SKD11 Daye Special steel SKD11/Taiwan SKD11/Japan SKD11
D2 Daye special steel D2/Taiwan D2



HRC58~63 Roll Forming Roller

HRC58~63 Roll Forming Roller

ZTZG Company Introduction
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller
HRC58~63 Roll Forming Roller

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
