High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
Specifications
Brand Name :
ZTZG
Model Number :
ERW140
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
90 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Product Name :
High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill
Length :
6m-12m
Thickness :
2.0mm-5.0mm
Pipe shape :
Square,Rectangular
Voltage :
220/380/415/420/440V
Power(w) :
180 kw
Raw Material :
Carbon Steel Coil
Worker :
6-8 Workers
After-sales service provided :
Online support
Products :
architectural structure tubes, low-pressure liquid tubes
Line Area :
80m(length) ×6.5m (width)
Service :
Free technical consultation
Description

High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill

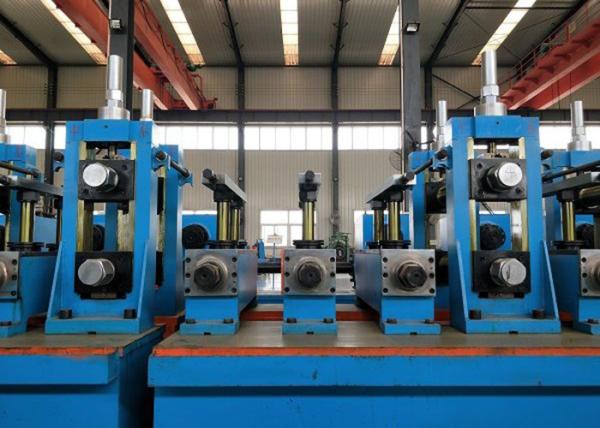

ERW140 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 60mm-140mm in OD and 2.0mm-5.0mm in wall thickness, as well as corresponding square and rectangular pipe.

Products: architectural structure tubes, low-pressure liquid tubes, coal transmission belt tubes, drive shaft tubes, guardrail tubes, tower footing tubes, automobile beam steel tube and other products.

High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill

High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill

Advantage:

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

High Frequency Iron Carbon Steel Stainless Steel Pipe Making Machine Tube Mill

Basic Technical Information of Welded Pipe Production Line

Product&yield

Round Pipe

60mm-140mm Thickness:2.0mm-5.0mm
Square & rectangle tube

50mm×50mm -110mm×110mm Thickness:2.0mm-4.0mm

Length

6m-12m Length Tolerance: ±3mm

Production Speed

20-60 m/min

Production capacity

30,000ton/year

Consumption

Mill installed capacity

180 kw

Line Area

80m(length) ×6.5m (width)

worker

6-8 workers

Raw Material

Carbon Steel coil

Carbon steel coil Q235B(ASTM GR·D,σs 230)

Width

190mm-440mm Thickness: 2.0mm-5.0mm

Coil ID

520-680mm

Coil OD

Max 1700mm

Coil Weight

5.0t

Technical flow

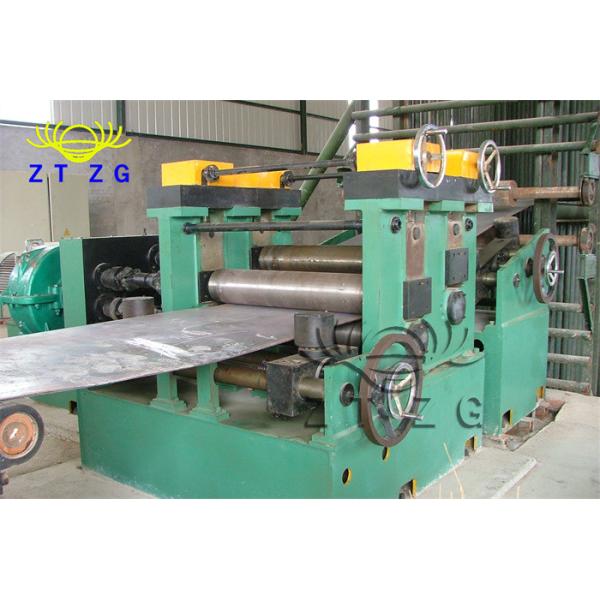

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

ZTF forming process:Save alt least 60% roller cost with electric control adjustment

We can also design square tube machine depends on customer’s requirement.
