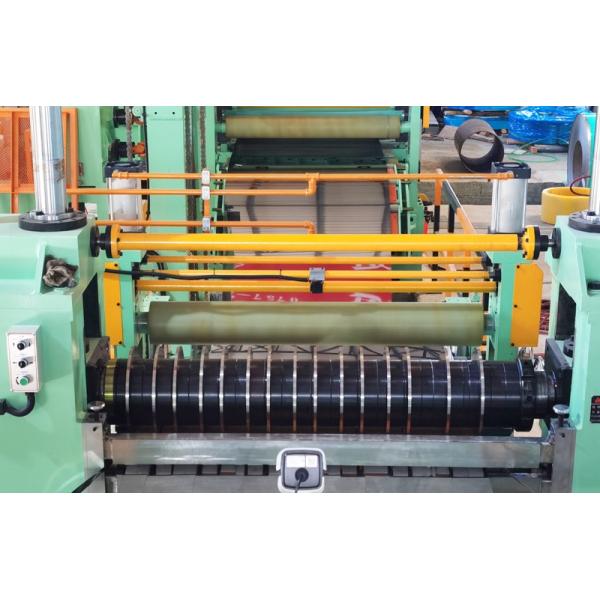

Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Specifications
Brand Name :
ZTZG
Model Number :
1350x3
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Material :
Low carbon steel
Strip thickness :
0.4- 8.0mm
Strip width :
600～1600mm
Camber on strips :
0.3mm/m
Voltage :
220V/380V
Coil Weight (T) :
10 T
Condition :
New
Rated Power :
15kw
Dimension(L*W*H) :
11000*1500*1800
No. of Slitting pieces :
10
Certification: :
ISO9001
Key Selling Points: :
Easy to Operate
After-sales Service Provided: :
Field installation, commissioning and training, Field maintenance and repair service, Online support, Free spare parts, Video technical support, Engineers available to service machinery overseas
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries: :
Garment Shops, Building Material Shops
Control: :
PLC control
Model Number: :
metal slitting machine,slitting line,slitting steel line,roll to roll
Video outgoing-inspection: :
Provided
Description

Hydraulic High Speed Slitter Line Machine With Recoiler 3x1350mm Steel Slitting Machine

Slitting line description
Slitting machine used to uncoil, slitting, rewinding the metal coil into the desired width of the strip. It is suitable for cold and hot rolled carbon steel, silicon steel, tinplate, stainless steel, and all kinds of metal materials after surface coating.

Application:It is suitable for longitudinal cutting of metal strip material and rewinding the slitted narrow strip into a coil.
Advantages: easy operation, high cutting quality, high material utilization, cutting speed stepless speed regulation and other characteristics.
Structure:it is composed of unwinding (unwinding), leading material positioning, slitting longitudinal shear, winding (rewinding), etc.
Applicable materials: tinplate, silicon steel sheet, aluminum strip, copper, stainless steel plate, galvanized sheet, etc.
Applicable industry: transformer, motor, home appliance, automobile, building materials, packaging industry, etc.


Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler

Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler

Inspection
The accuracy and capability of the slitting line:

1～1.5mm±0.15mm20pcs
1.6～3.0mm±0.15mm15pcs
3.1～4mm ±0.15mm10pcs
Camber on strips:0.3mm/m

ZTZG Company Introduction
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler
Hydraulic 15kw 3x1350mm Steel Coil Slitting Machine With Recoiler

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
