Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Specifications
Certification :
CE, ISO
Brand Name :
CHG
Model Number :
AC-26
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per year
Delivery Time :
Varies depending on the design
Packaging Details :
Varies depending on the design
Model NO. :
AC-26
Substrate :
Metal
Control Unit :
PLC
Size :
Customized
Warranty :
12 months
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
Description

Metal Powder Coating Line With Manual Spray Guns Designed And Customized

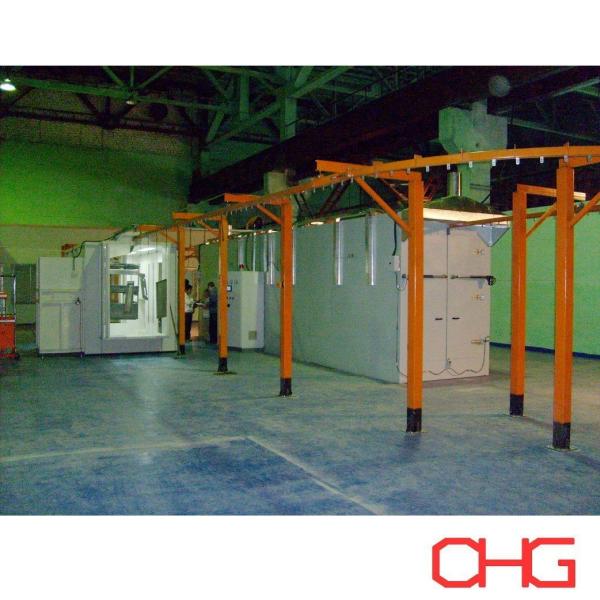

Overhead Conveyor System and Spray Booth Specifications

System Features:

  • Overhead Conveyor System: Optimized for smooth part transportation through all process stages

  • Spray Booth Construction: Heavy-duty carbon steel for maximum durability and environmental resistance

  • Spraying Configuration:

    • Primary manual spray application for precision coating

    • Pre-engineered positions for future automatic spray gun installation

Production Process Flow:

  1. Manual Loading: Operators place workpieces onto conveyor

  2. Manual Powder Application: Skilled technicians apply coating using electrostatic spray guns

  3. Thermal Curing: Parts enter curing oven for powder cross-linking

  4. Cooling Phase: Natural cooling stabilizes coating properties

  5. Manual Unloading: Finished products removed from line

Design Advantages:

  • Immediate manual operation capability

  • Future-ready for automation upgrades

  • Robust construction for long-term performance

Manual vs. Automatic Spraying Comparison:

Feature Manual Spraying Automatic Spraying
Precision High (operator-controlled) Consistent (programmable paths)
Speed Moderate (skill-dependent) High (optimized for volume)
Flexibility Excellent (adapts to complex parts) Limited (requires pre-programming)
Labor Cost Higher (skilled operators required) Lower (reduced labor needs)
Initial Cost Lower equipment investment Higher upfront automation costs
Material Usage 70-85% transfer efficiency 90-95% transfer efficiency
Best For Low-mix/high-complexity production High-volume/standardized parts

Customized Solutions

Feel free to contact us to receive your exclusive design proposal. We specialize in customizing coating production lines based on the specific characteristics and requirements of your products, ensuring a solution that perfectly matches your manufacturing needs.
