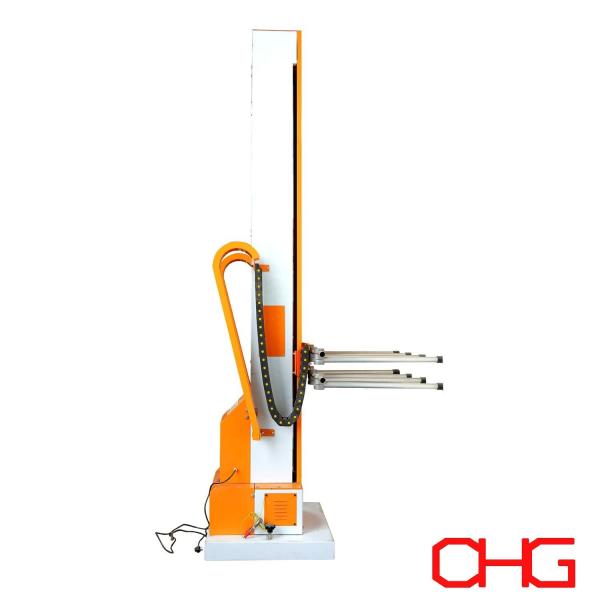

4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment
4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment
4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment
4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment
4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment
4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment
Specifications
Brand Name :
CHG
Model Number :
CB-R-01
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per year
Delivery Time :
Varies depending on the design
Packaging Details :
Varies depending on the design
Model NO. :
CB-R-01
Running Speed :
0~0.5m/S
Max Route :
1200mm
After-sales Service :
Guide Equipment Installation and Use
Application :
Hardware Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment
Description

Advanced Coating Reciprocator System

Industry Applications

  • Automotive components

  • Aerospace parts

  • Furniture manufacturing

  • General industrial products

Key Benefits
✔ Superior coating uniformity
✔ Increased production output
✔ Reduced material consumption
✔ Multi-substrate compatibility
✔ Repeatable high-quality results

Technical Specifications

  1. Drive System

  • Motor reducer torque-driven operation

  • Variable frequency speed control

  • Rotary encoder positioning (±1mm)

  1. Standard Configuration

  • 4 spray gun capacity

  • Customizable gun quantity

  • Adjustable stroke length

  1. Motion Control

  • Speed range: 0.1-5 m/s

  • Stroke length: 100-2000mm

  • Programmable motion profiles

  1. Structural Design

  • Aluminum/steel hybrid construction

  • Vibration-dampened frame

  • IP65 protection rating

  1. Control System

  • 7" touchscreen HMI

  • Multi-language interface

  • Network connectivity options

  1. Safety Features

  • Dual emergency stop circuits

  • Safety light curtains

  • Overload protection

Performance Metrics

  • Positioning accuracy: ±0.05mm

  • Noise level: <55 dB

  • Changeover time reduction: 30%

Customization Options

  • Gun configuration (4+ units)

  • Stroke length adjustments

  • Specialized mounting requirements

Product Parameters

NO. Item Parameter
1 Model CHG-SJ-2000
2 Motor power 0.75kW 3~380V 50~60Hz
3 Reducer turns ratio 1:15
4 Max route 1200mm
5 Running speed 0~0.5m/s
6 Standard gun quantity 4
7 Parameter setup Manual setup
