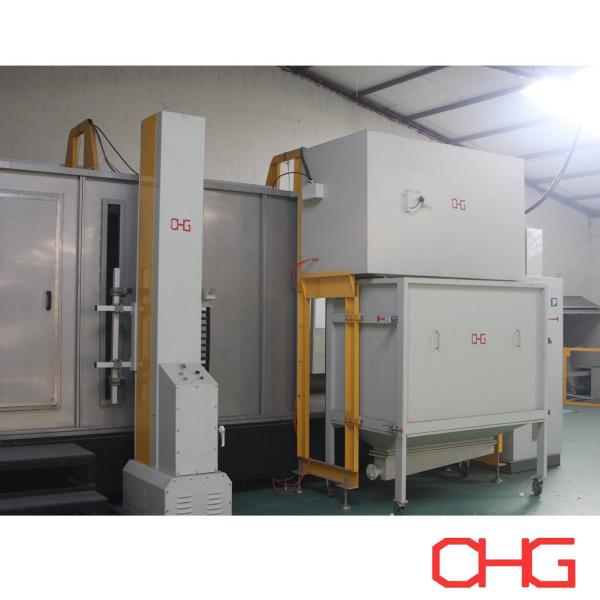

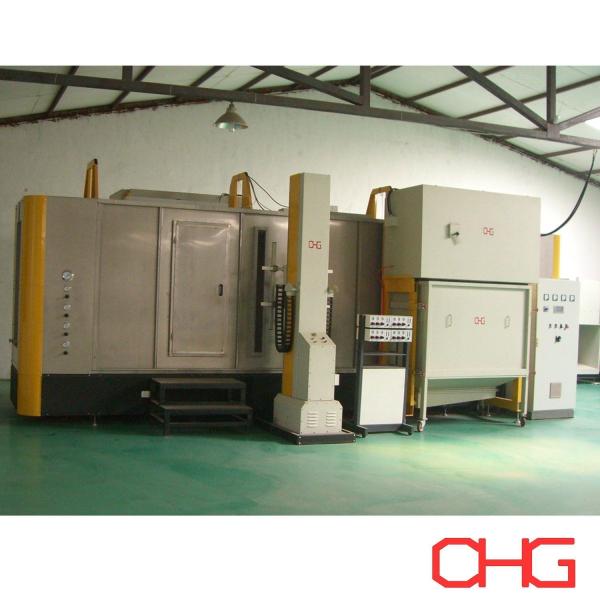

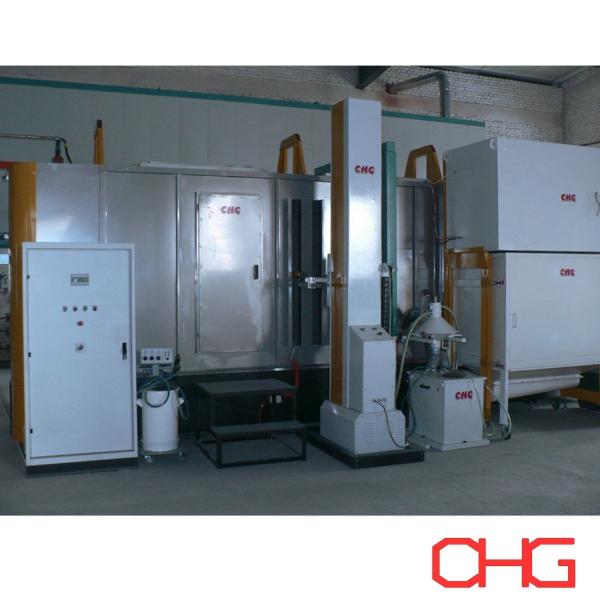

Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism
Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism
Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism
Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism
Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism
Advanced Powder Recovery System for Powder Coating Equipment with Dual Filtration Stages and Automatic Cleaning Mechanism
Specifications
Brand Name :
CHG
Model Number :
CB-PC-06
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per year
Delivery Time :
Varies depending on the design
Packaging Details :
Varies depending on the design
Model NO. :
CB-PC-06
Size :
Customized
Coating :
Powder
Transport Package :
Customized
Trademark :
CHG
Application :
Hardware Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment
Description

Electrostatic Powder Coating Equipment's Powder Recycler With Filter Element

System Components

  • Upper chamber with recovery fan

  • Lower movable chamber for filter access

  • Flexible sealing connection between chambers

Filtration Specifications

  • Dual filtration stages:

    1. Primary polyester filter (waterproof/anti-static)

    2. Final exhaust filter

  • Maximum exhaust concentration: 10mg/m³

  • Operational noise level: <85dB

Automatic Cleaning System

  • Pulse blowback cleaning mechanism

  • Includes:
    • Electronic control unit
    • Pulse membrane valves

Powder Recycling Process

  1. Collected powder accumulates in recovery hopper

  2. Transfer pump moves powder to:
    • Electric sieve filter

No. Item Parameter and description
1 Model CHG-HS-7000
2 Number of filter element 5 pieces
3 Specification of filter element ∮325×660mm
4 Material of filter element waterproof polyester
5 Filter precision of filter element 5μm
6 Model of fan 4-72-4.0A
7 Model of motor Y132S1-2-5.5kW 3~380V 50Hz
8 Recycling air 6500m3/h
9 Cleaning form of filter element Pulse automatic blowback
10 Voltage of blowback valve DC24V
11 Blowback pressure 0.4~0.5MPa
12 Sealing way between upper and lower box of saver Air sealing
13 Moving way of lower box of saver Manual movement
