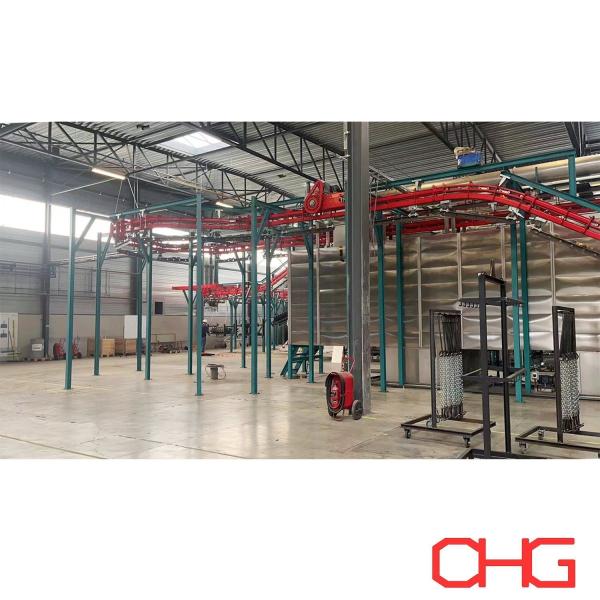

Metal Surface Pretreatment Spray System for Powder Coating Applications

Advanced Surface Preparation for Superior Coating Performance

A spray pretreatment system is one of the most important stages in any powder coating process. Designed to clean, condition, and prepare metal surfaces before coating, it helps ensure excellent powder adhesion, enhanced corrosion protection, and long-term coating durability.

Our spray pretreatment systems are engineered to accommodate a wide variety of metal components and production requirements. Whether processing steel, galvanized steel, aluminum, or other metal substrates, each system can be customized to match your product specifications, production capacity, and plant layout.

Key Benefits

• Thorough Surface Cleaning

Effectively removes oils, grease, dust, machining residues, and other contaminants that may affect coating performance.

• Improved Coating Adhesion

Creates an ideal surface condition that promotes strong bonding between the substrate and powder coating.

• Enhanced Corrosion Resistance

Supports phosphating and conversion coating processes that significantly improve the protective properties of the finished coating system.

• Consistent Surface Quality

Precisely controlled spray parameters ensure uniform treatment across all workpiece surfaces, including complex geometries.

• Flexible System Configuration

Available in multiple process layouts and treatment stages to meet different industry requirements and product specifications.

Modular System Design

Each pretreatment stage is designed as an independent module, allowing flexible configuration and future expansion.

Typical equipment includes:

• Heavy-duty spray chambers

• High-efficiency circulation pumps

• Precision-engineered spray nozzles

• Integrated chemical solution tanks

• Optional electric, gas, or steam heating systems

• Automatic temperature and chemical concentration control

• Filtration and sludge removal systems

The modular design simplifies maintenance while ensuring reliable long-term operation.

Typical Pretreatment Process

• Degreasing: Specialized cleaning solutions are sprayed onto the workpiece surface to remove oils, lubricants, dirt, and processing contaminants. Proper degreasing establishes the foundation for successful coating adhesion.
• Water Rinsing: Following chemical cleaning, rinsing stages remove residual treatment chemicals and prevent contamination from being carried into subsequent processes.
• Surface Conditioning: Depending on the coating requirements, conditioning agents may be applied to improve crystal formation during phosphating and enhance coating performance.
• Phosphating or Conversion Coating: A chemical conversion layer is formed on the metal surface to improve corrosion resistance and provide an excellent base for powder coating adhesion.
• Final Rinsing: Multiple rinse stages ensure complete removal of residual chemicals while maintaining consistent surface quality.
• Drying: A drying oven removes all remaining moisture before powder application, ensuring the surface remains clean, stable, and ready for coating.

Applications

This spray pretreatment system is widely used in:

• Automotive components

• Household appliances

• Metal furniture

• Electrical cabinets and enclosures

• Construction materials

• Agricultural machinery

• Industrial equipment

• Aluminum profiles

• General metal fabrication

Customized Pretreatment Solutions

Every production process has unique requirements. Our engineering team can design a spray pretreatment system tailored to your specific workpieces, production volume, pretreatment chemistry, and factory layout.

Available customization options include:

• Iron phosphate pretreatment

• Zinc phosphate pretreatment

• Chrome-free conversion coating

• Zirconium-based pretreatment

• Aluminum pretreatment systems

• Multi-stage or high-performance corrosion protection processes

Contact us for a customized technical proposal and complete pretreatment solution designed to maximize coating quality, production efficiency, and long-term operational reliability.
