Structural Steel Liquid Painting Line with Automated Material Handling

Designed for Heavy Structural Components

This liquid painting production line is specifically engineered for carbon steel structural parts, providing reliable coating performance, high operational efficiency, and flexible process configuration. The system utilizes immersion coating technology and is suitable for medium and large fabricated steel components used in construction, transportation, industrial equipment, and heavy machinery manufacturing.

The production line can be customized according to workpiece dimensions, production capacity, coating specifications, and factory layout requirements.

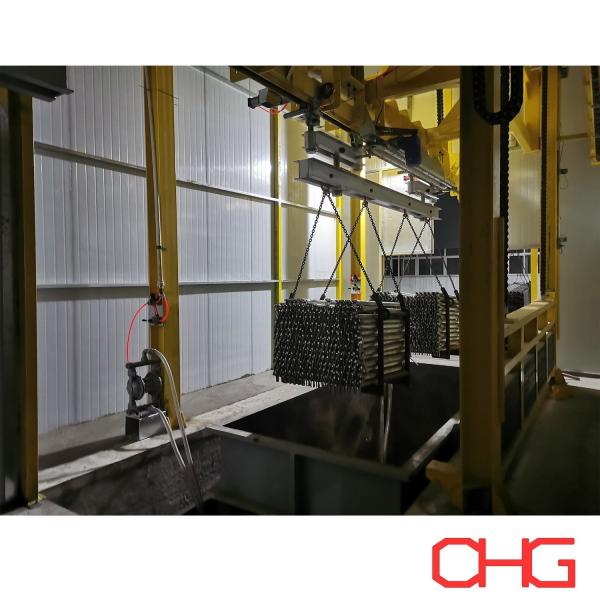

Immersion Coating Process

The system adopts a 45° inclined basket dipping design, allowing the coating material to fully contact the workpiece surface and ensuring uniform paint coverage, even on complex welded structures.

Coating Features

• Full-surface immersion coating

• Excellent paint penetration

• Uniform film thickness

• Suitable for complex structural components

• Reliable corrosion protection

Material Handling System

The production line is equipped with a Power & Free overhead conveyor system that enables flexible workpiece transportation and process accumulation.

Handling Features

• Power & Free conveyor technology

• Independent carrier movement

• Process accumulation capability

• Forklift-assisted loading and unloading

• Stable handling of heavy workpieces

Operating Parameters

Typical Production Process

Forklift Loading

↓

Immersion Coating (Approx. 6 min)

↓

Paint Draining (Approx. 90 min)

↓

Drying Oven (Approx. 48 min at 60–80°C)

↓

Natural Cooling (Approx. 6 min)

↓

Forklift Unloading

Advantages

Uniform Coating Coverage: The immersion coating process ensures complete paint contact with all exposed surfaces, providing excellent coverage on complex structural parts.

Improved Corrosion Protection: A continuous and evenly distributed coating layer improves resistance to corrosion, moisture, and harsh environmental conditions.

Higher Production Efficiency: The Power & Free conveyor system improves workflow flexibility while reducing manual handling and production interruptions.

Lower Operating Costs: Optimized paint utilization and energy-efficient drying equipment help reduce material waste and operating expenses.

Consistent Finish Quality: Carefully controlled processing conditions ensure stable coating thickness, appearance, and overall finish quality.

Typical Applications

This liquid painting system is suitable for:

• Structural steel components

• Construction steel structures

• Industrial equipment frames

• Machinery components

• Fabricated metal assemblies

• Heavy-duty steel parts

• Transportation equipment structures

Customized Engineering Solutions

Every liquid painting production line is designed according to the customer's specific manufacturing requirements. We can customize:

• Conveyor systems

• Dipping tank dimensions

• Drying oven configuration

• Production capacity

• Automation level

• Plant layout

• Paint system requirements

Contact us today to receive a customized technical proposal and complete liquid painting solution tailored to your products and production goals.
