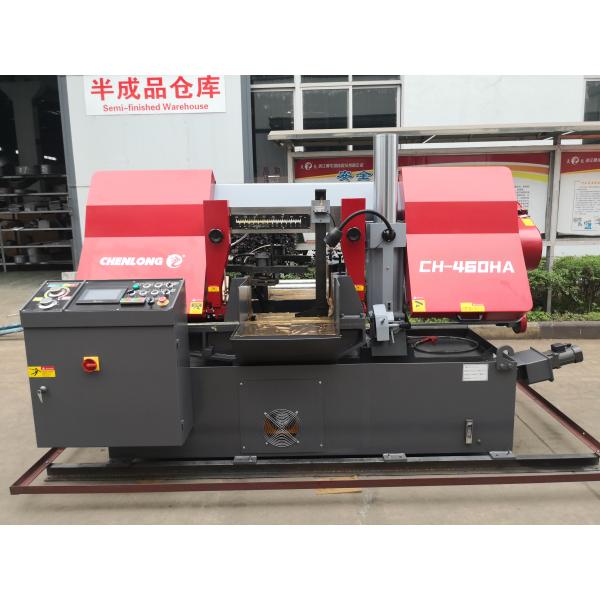

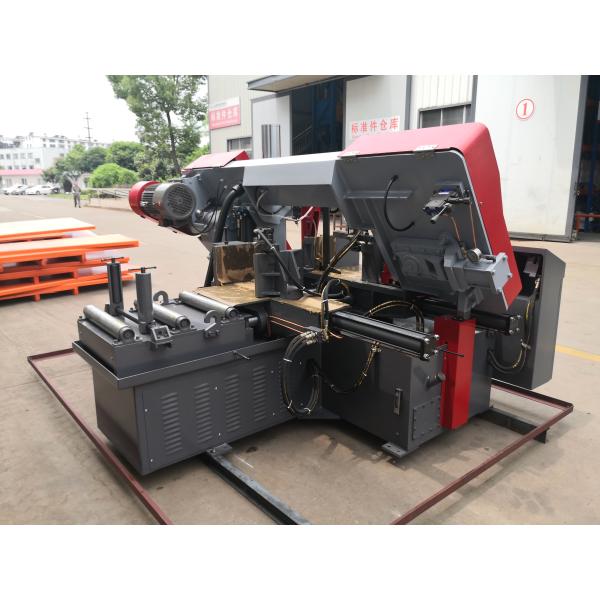

Horizontal Band Saw Machine For Metal Cutting Tube Bundle Cutting CH-460HA
Horizontal Band Saw Machine For Metal Cutting Tube Bundle Cutting CH-460HA
Horizontal Band Saw Machine For Metal Cutting Tube Bundle Cutting CH-460HA
Horizontal Band Saw Machine For Metal Cutting Tube Bundle Cutting CH-460HA
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
CHENLONG
Certification :
CE,ISO9001,ISO14001,OHSAS18000
Supply Ability :
500 Set/Sets per Month
Packaging Details :
NUDE
MOQ :
1 Set/Sets
Price :
Negotiable
Delivery Time :
35workdays
After-sales Service Provided :
Free spare parts, Online support, Online support
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Metal Processing Factory
POWER :
UP TO CUSTOMER
Voltage :
380V/220V/415V/440V/3ph/50hz
Machine Designers :
10
Work Staffs :
More than 200
Company Area :
More than 65000 square meters
Clamping :
Hydraulic
Controlling Mode :
Full automatic
Port :
NINGBO SHANGHAI
Description

Horizontal Band Saw Machine For Metal Cutting Tube Bundle Cutting CH-460HA

Features:

1. Bundle cutting device

2. Power blade cleaning brush

3. Automatic feeding

4. NC control

Product parameters
Model Name New CH-460HA
Original
Max.cutting Round 460mm Bundle cutting 310Wx230H
capacity Quadrate 460×460mm
Saw blade Speed 20 to 80 m/min
Size 41×1.3×5450mm
Guides Carbide and bearing blade guides
Cleaning Power wire brush & flood coolant
Tension Hydraulic
Motor output Blade 4kw
Hydraulic 0.75kw
Coolant 0.06kw
Work feeding automatic
Work Vice Hydraulic
Machine Weight 2200kg
Machine Size(L×W×H) 2850×2200×1900mm
Standard Equipment:
1. Power Blade cleaning brush.
2. Working light.
3. Automatic feeding
4. One piece of bi-metal saw blade.
5. One set of tools with tool box

6. Automatic work height control

7. Automatic chip conveyor

8. NC control (10 set cutting process)
9. Roller rack 2M
10. Hydraulic blade tension
11. Inverter control the saw blade line speed
12. Bundle cutting device

Horizontal Band Saw Machine For Metal Cutting Tube Bundle Cutting CH-460HAHorizontal Band Saw Machine For Metal Cutting Tube Bundle Cutting CH-460HA
